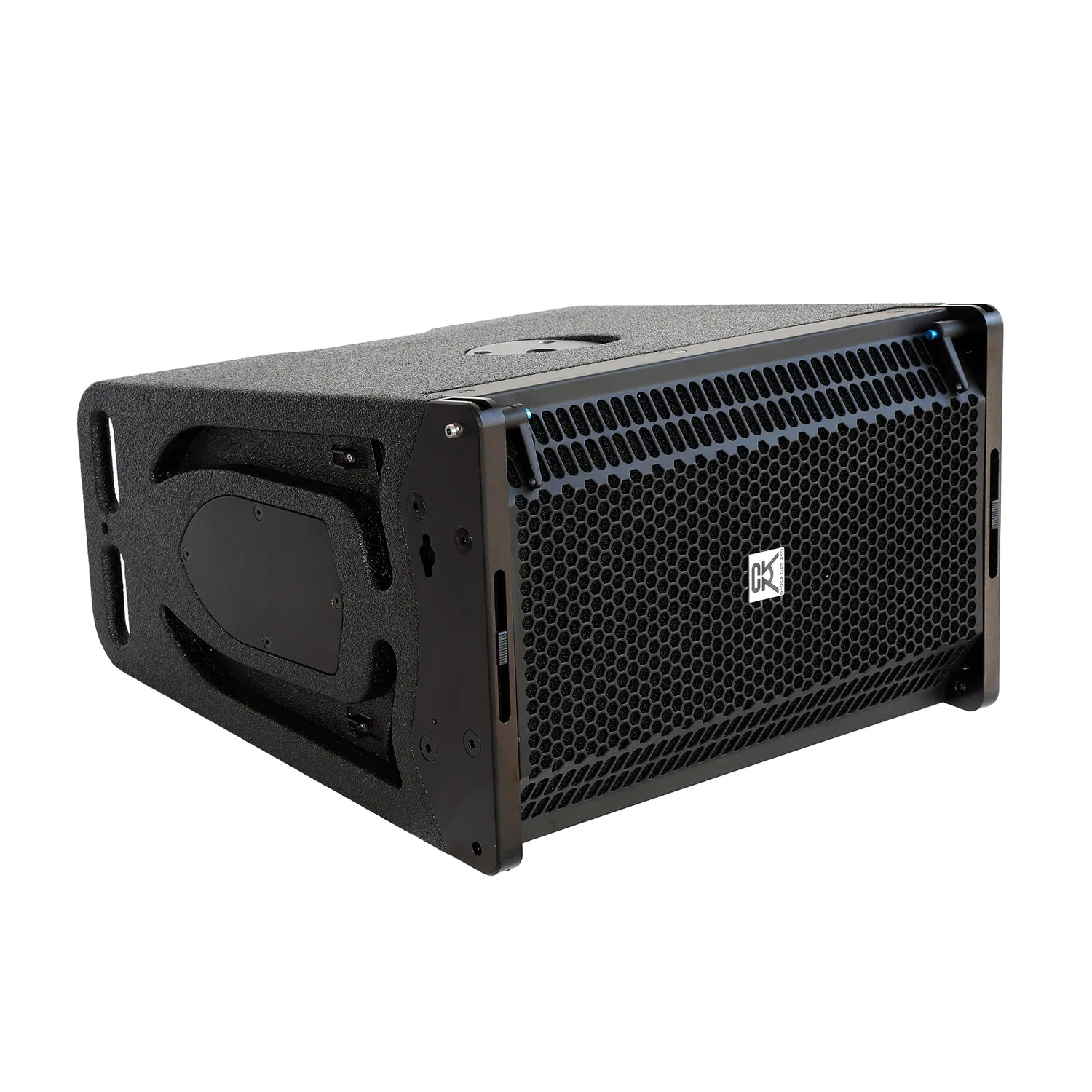

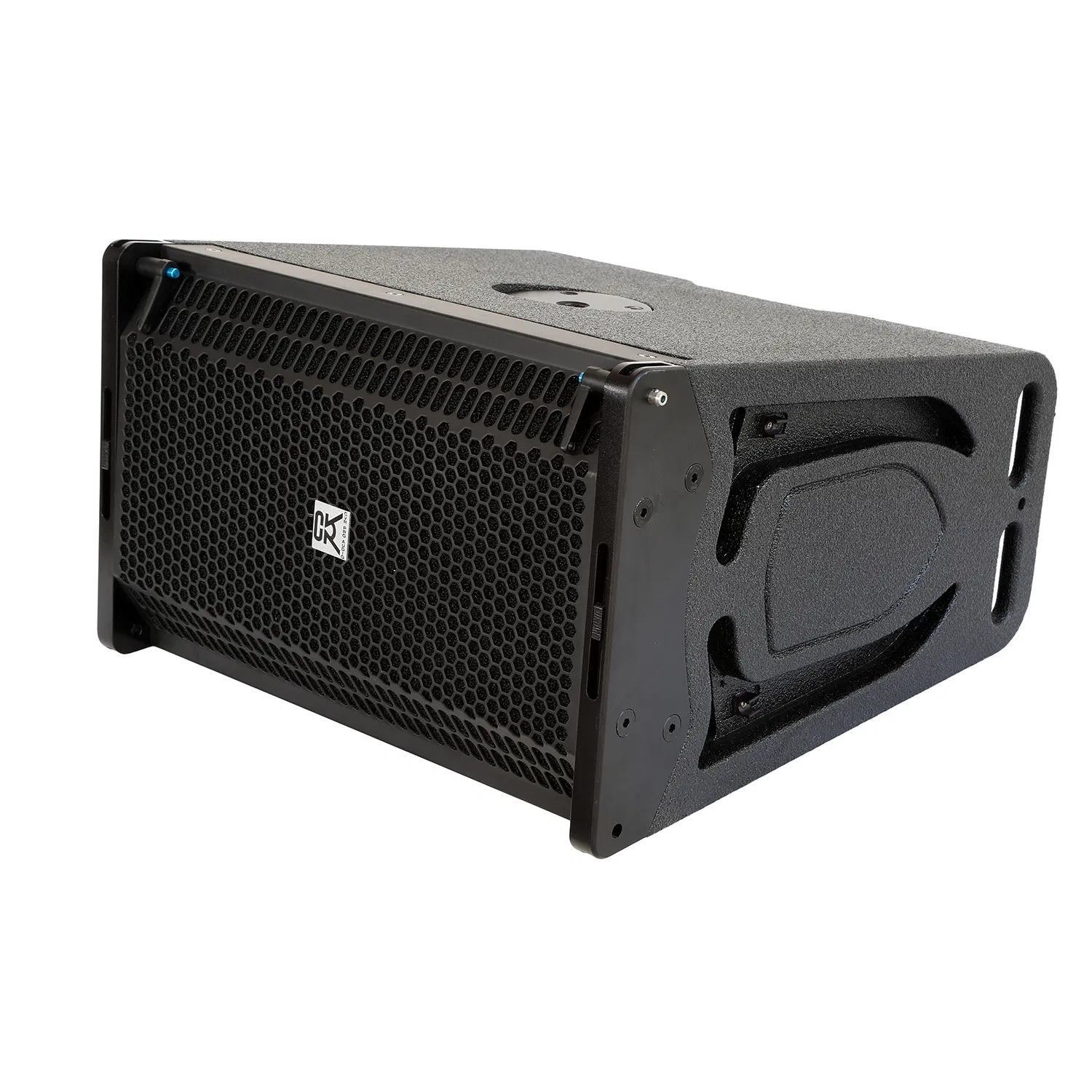

Two-Way Line Array System High Performance Big Power Fashion Appearance Signal 10 Inch Neodymium Woofer 3 in Coil

Customization: Available
Noise: <95dB
Hi-Fi: Not Hi-Fi

Product Description

📊 Overview & Basic Info
Model NO.
W-110B
Activity
Passive
Operation Mode
Subject to Reality
Speaker System
Optional Combination
Speaker Material
Wood
Application
Commercial
Certification
CE
THD
<0.005%
Type
Two-Way Line Array System
Frequency Response
65Hz-18kHz±3dB
Specification
350*520*525mm(W*H*D)
HS Code
8518220000
📝 Product Description
W-110B/W-110BP(Active) is a compact line array system consist of one 3 inch neodymium tweeter and one 10 inch neodymium woofer. Wherever low frequency extension is required, W-110B/W-110BP will integrate seamlessly with W-215/W-215P line array sub-bass system in a standard configuration. W-215/W-215P consist two 15 inch woofers with 100mm voice coil. Its physical dimension is identical to the W-110B/W-110BP and equip with the same proprietary rigging system.

W-110B & W-215 system can be easily switched from passive mode to active mode by installing power amplifier modules or passive back panels. W-110B & W-215 is a multi-purpose system, they can be used in different ways, like stacking, flying or standing according to different applications like indoor and outdoor events, theater, multi-purpose rooms, bar and club etc.
📸 Detailed Photos

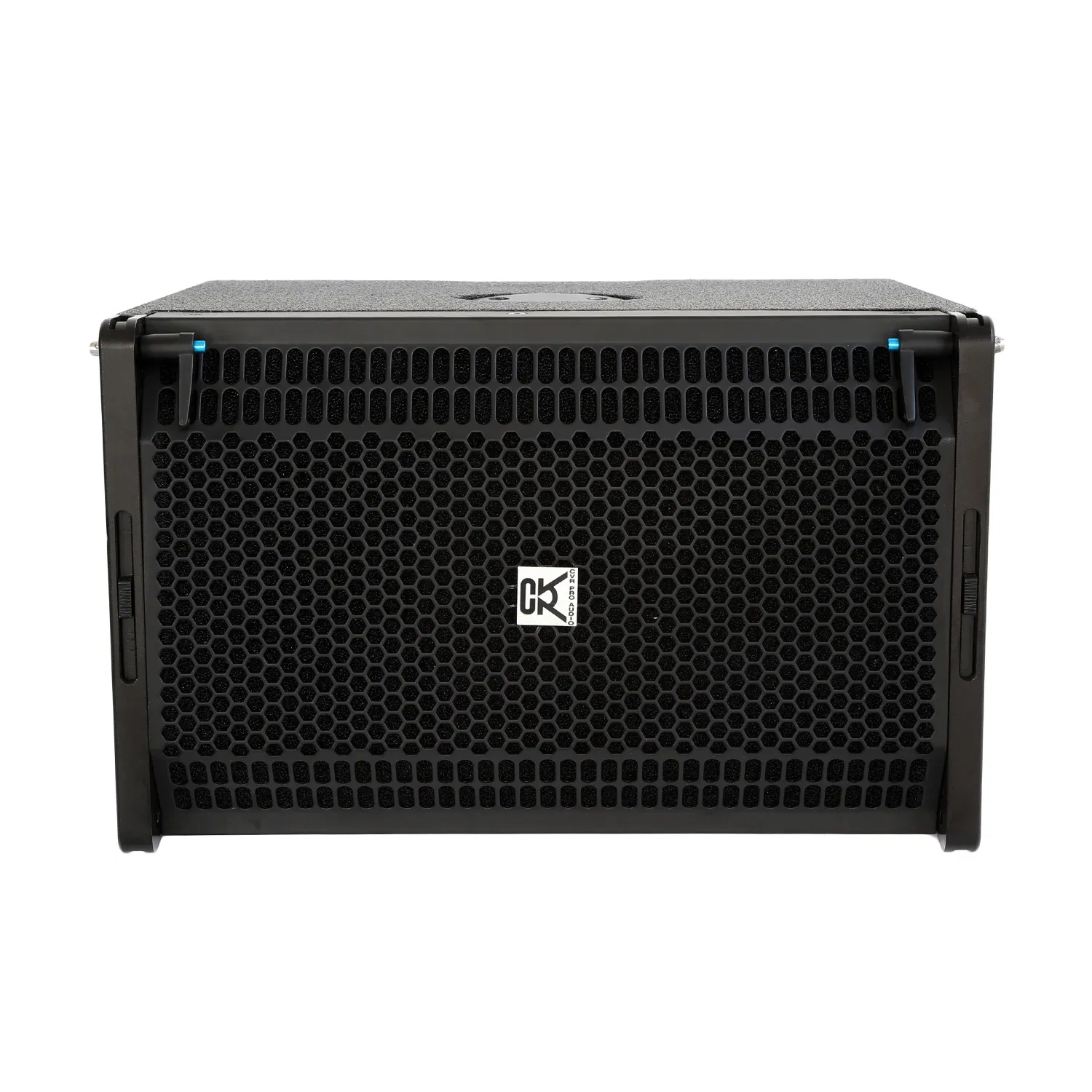

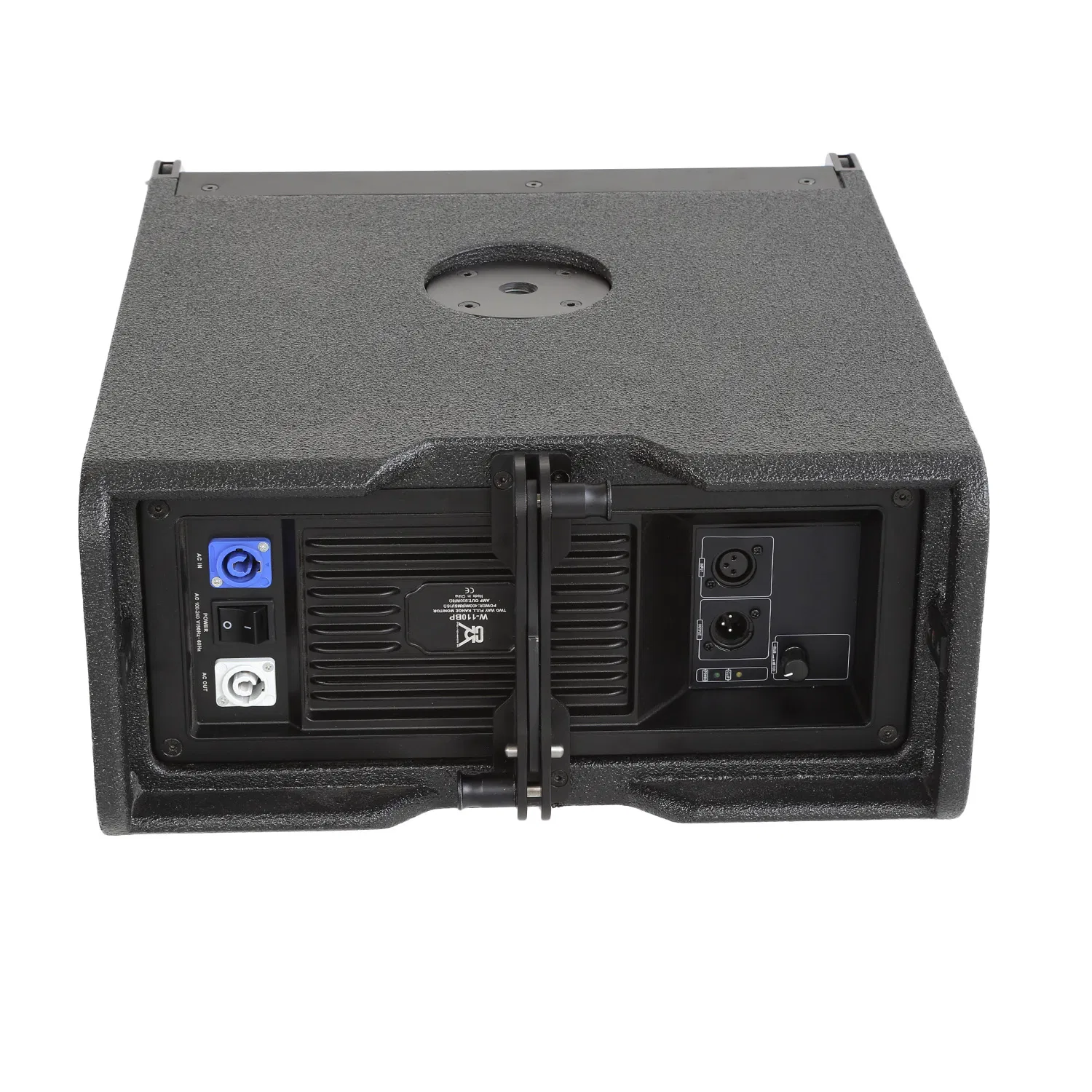

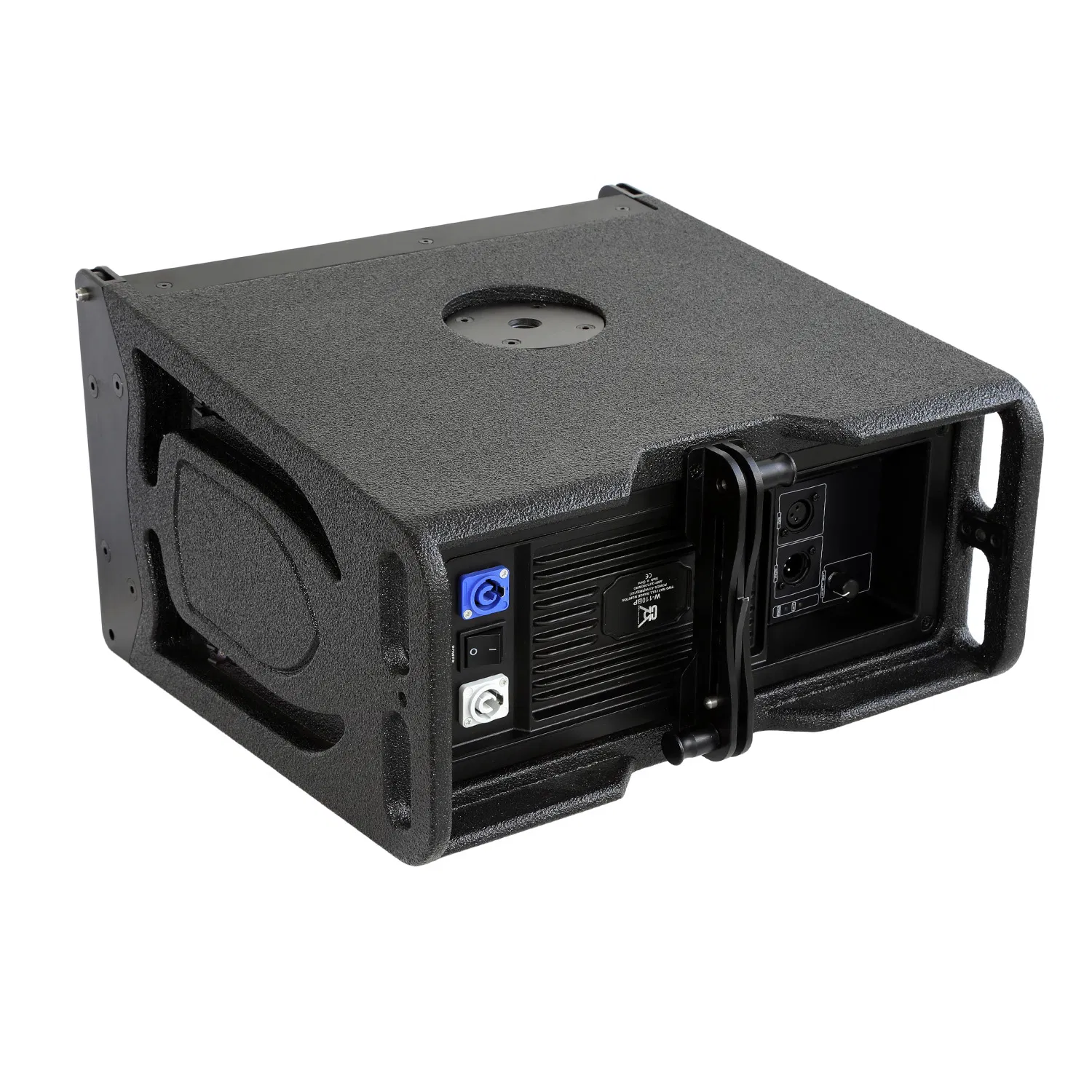

Detailed View 1

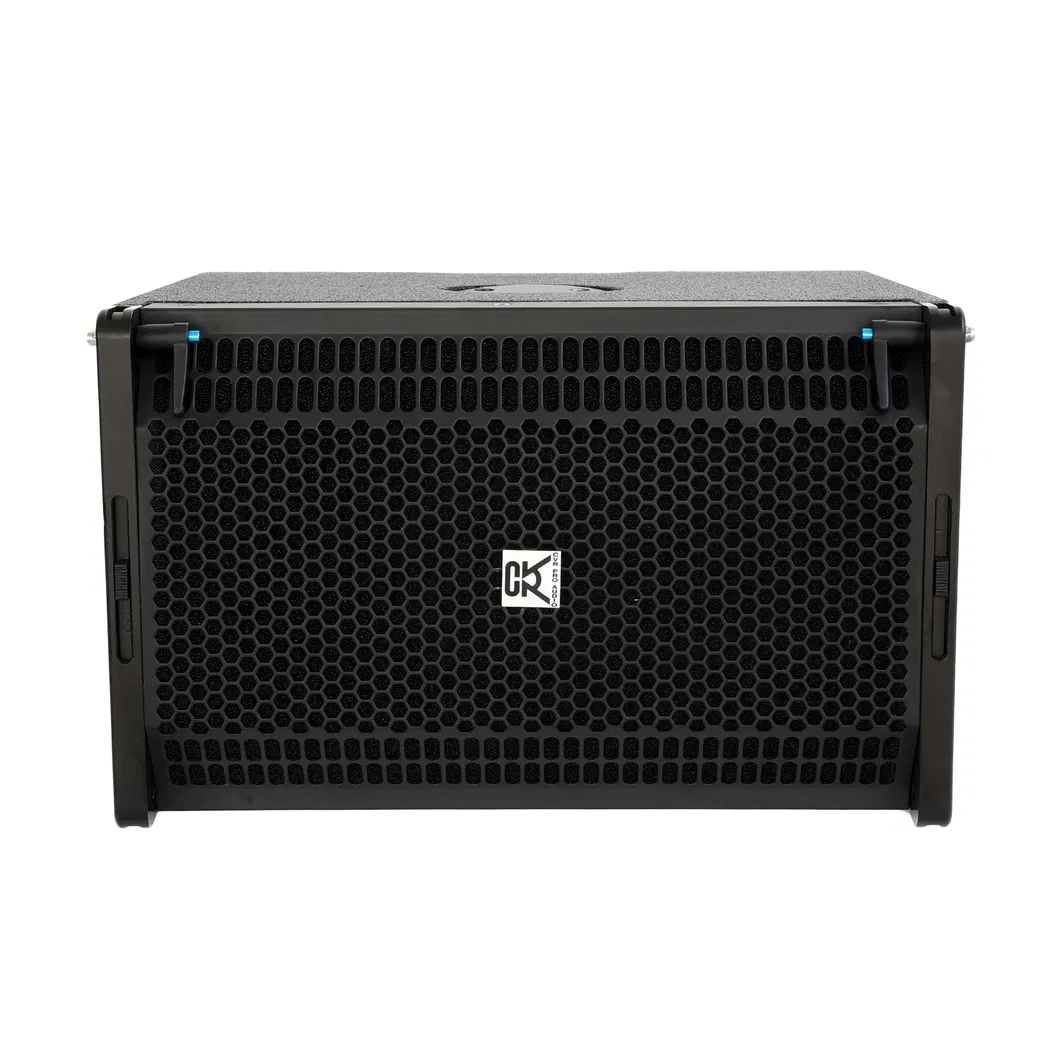

Detailed View 2
Detailed View 3
Detailed View 4
Detailed View 5

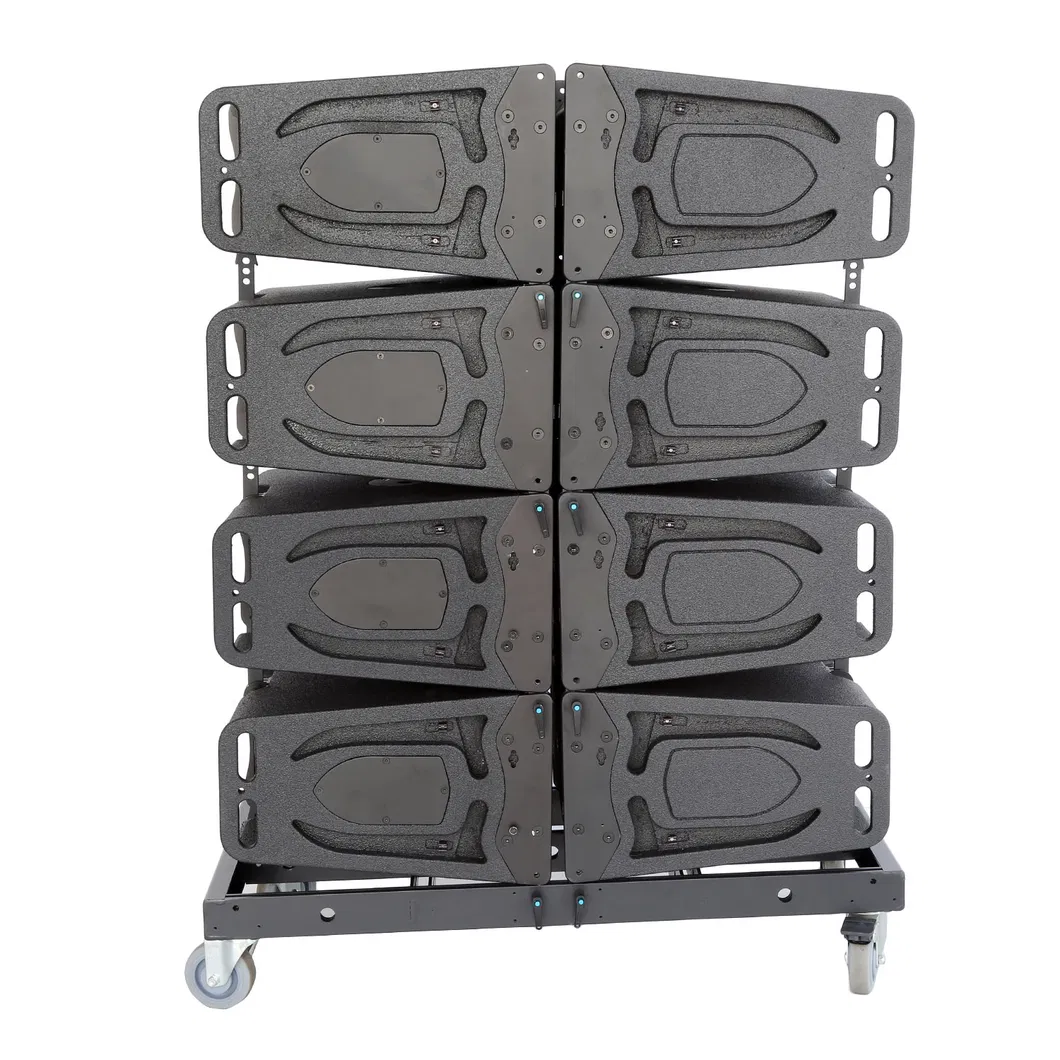

Detailed View 6

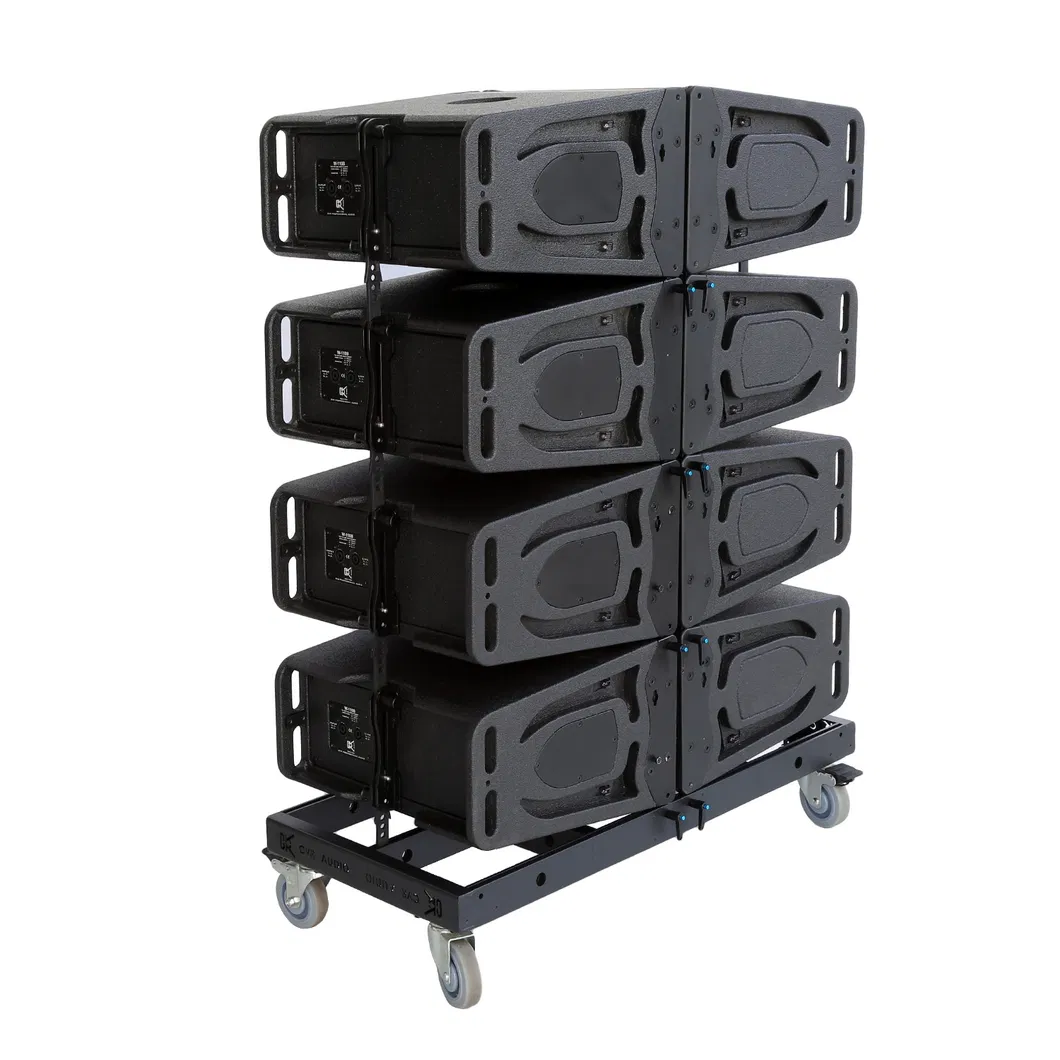

Detailed View 7
⚙️ Product Parameters

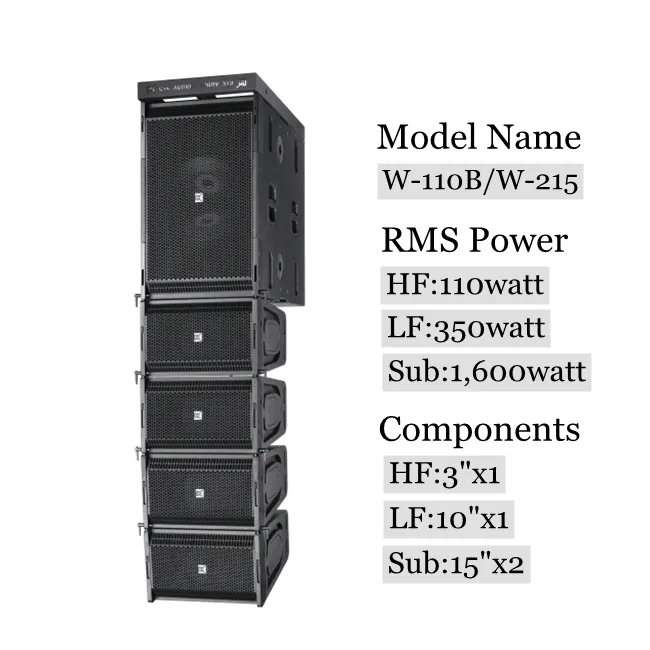

Parameters Chart
ModelW-110B & W-110BP
TypeTwo-way line array system
Frequency Response65Hz-18KHz±3dB
Power handlingLF 350W(RMS) 1400W(PEAK) / HF 110W(RMS) 440W(PEAK)
SensitivityLF 101dB(1W@1M) / HF 131dB(PEAK/1M)
DriverLF 1*10''(260mm) neodymium woofer / HF 1*3'' neodymium compression driver
Nominal impedanceLF 16 ohm / HF 16 ohm
Coverage110°H * 10°V
FinishTextured high-density polyurethane coating
Enclosure MaterialBirch Plywood
📜 Certifications
CE Certifications
📦 Packaging & Shipping

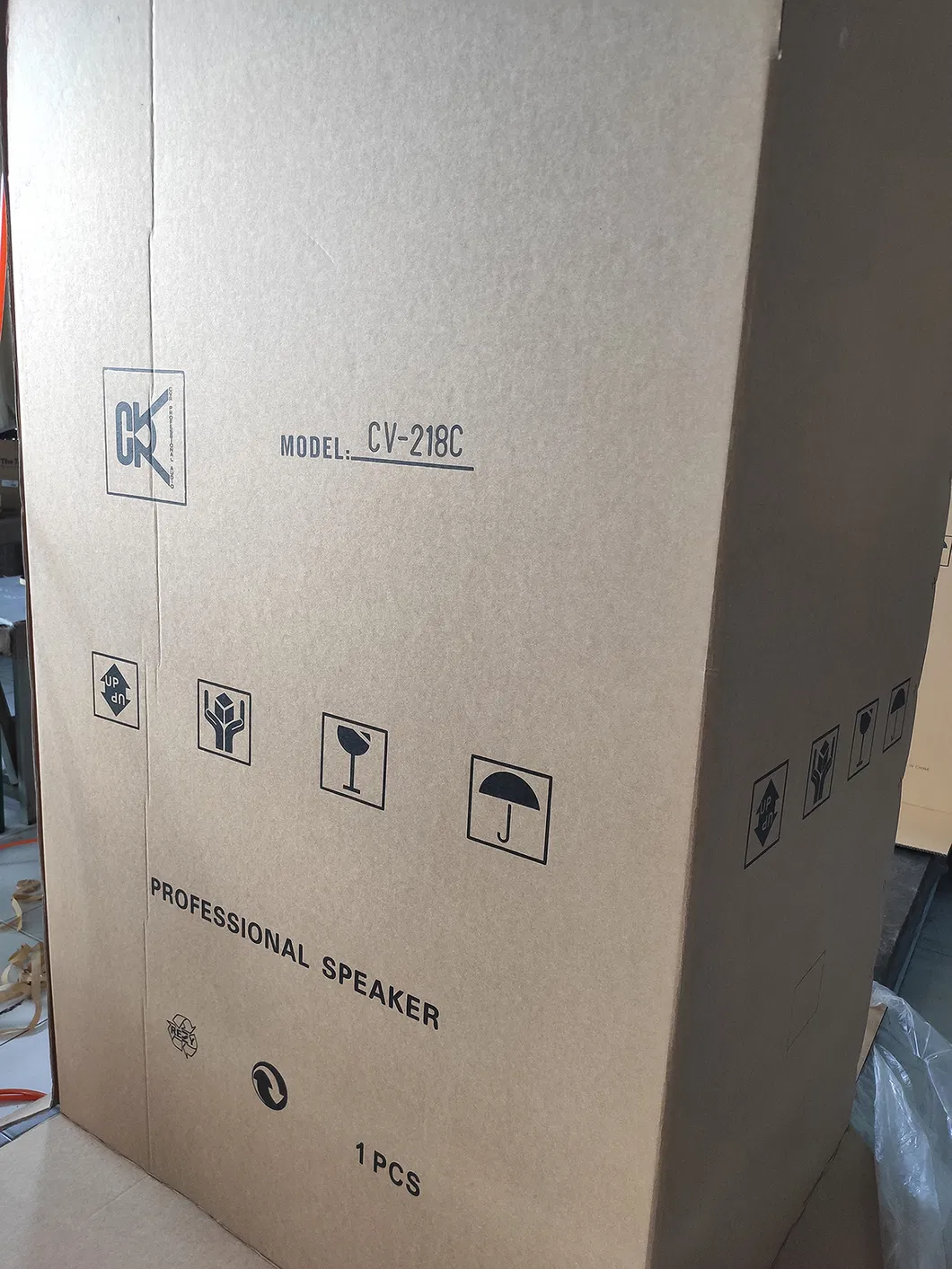

Carton Packaging

Carton packaging, suitable for fixed installation.

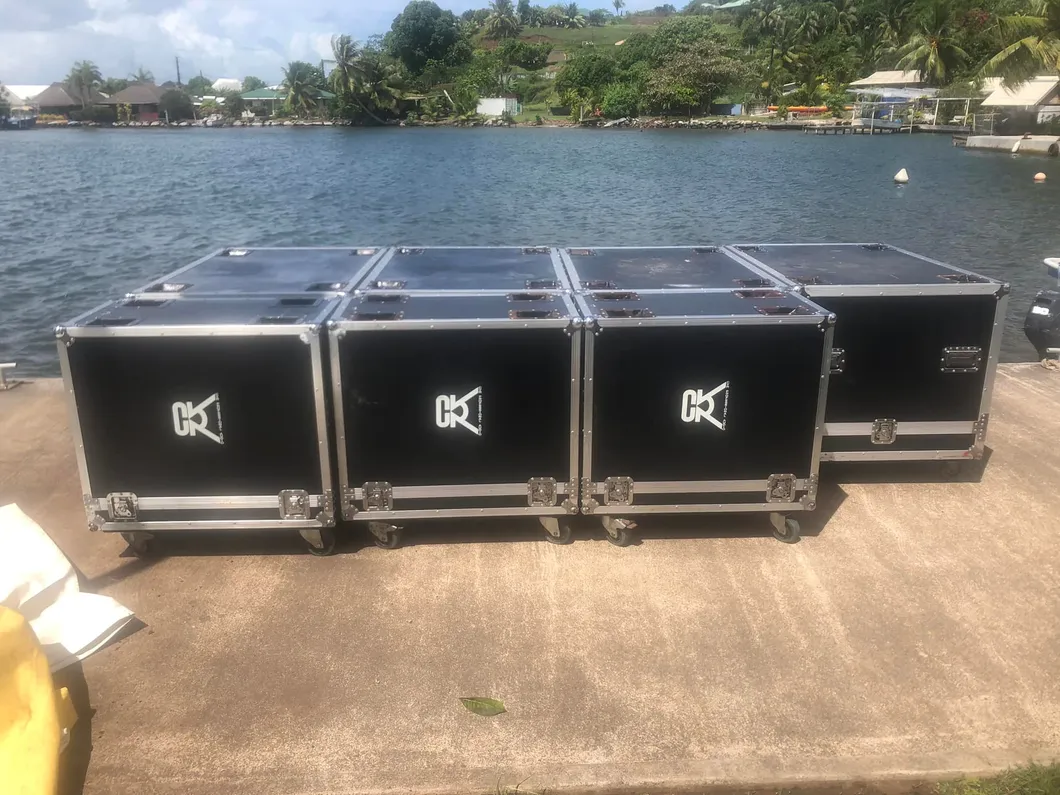

Flight Case Packaging

Air case packaging, suitable for frequent mobile use.

🏗️ Case Diagram

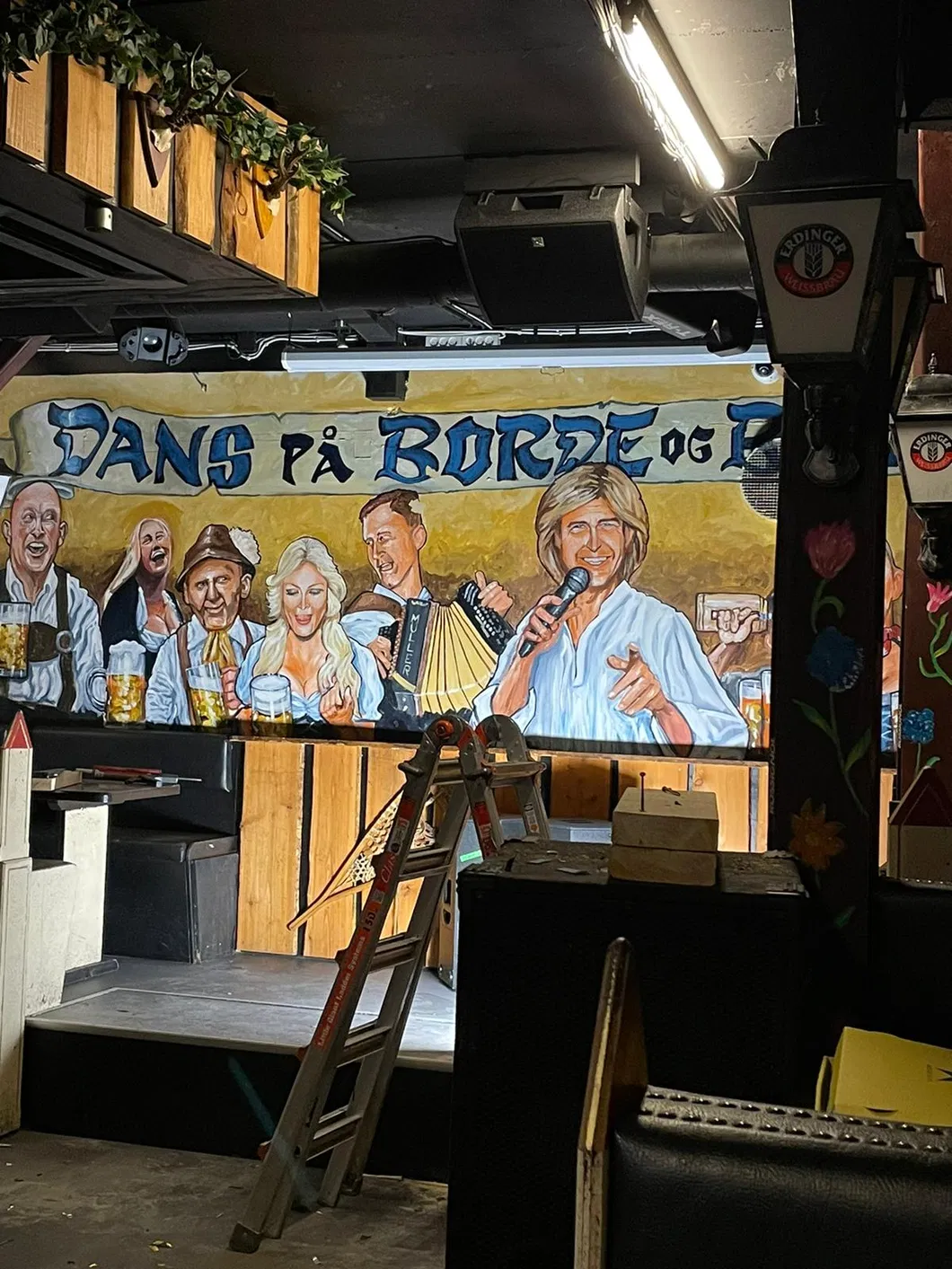

Case 1

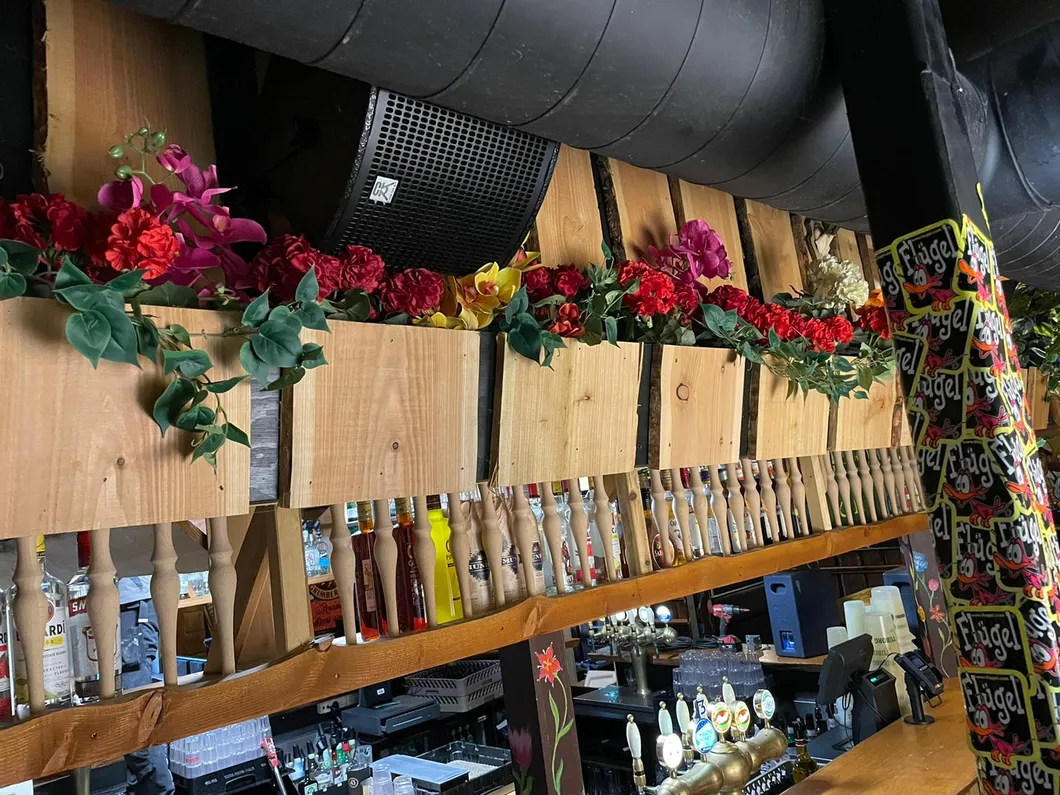

Case 2

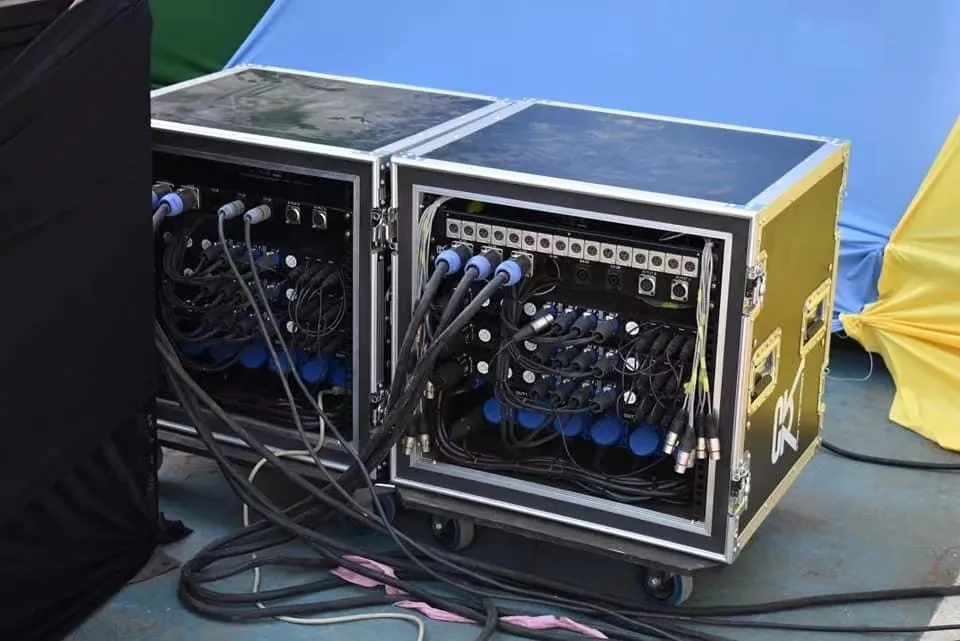

Case 3

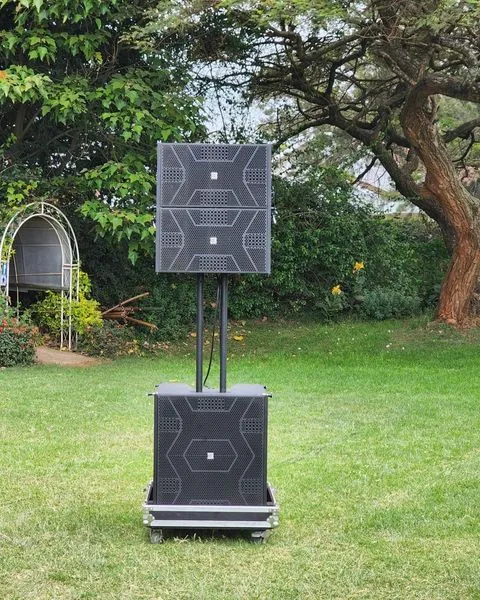

Case 4

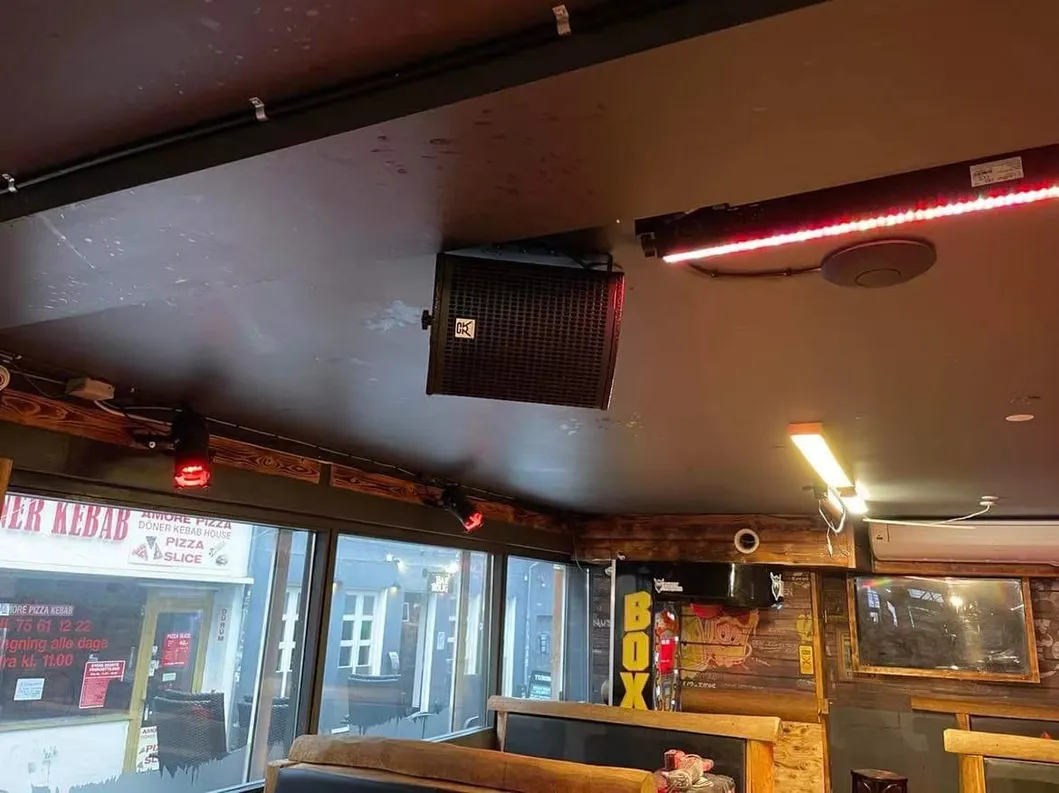

Case 5
🏢 Facility Showcase

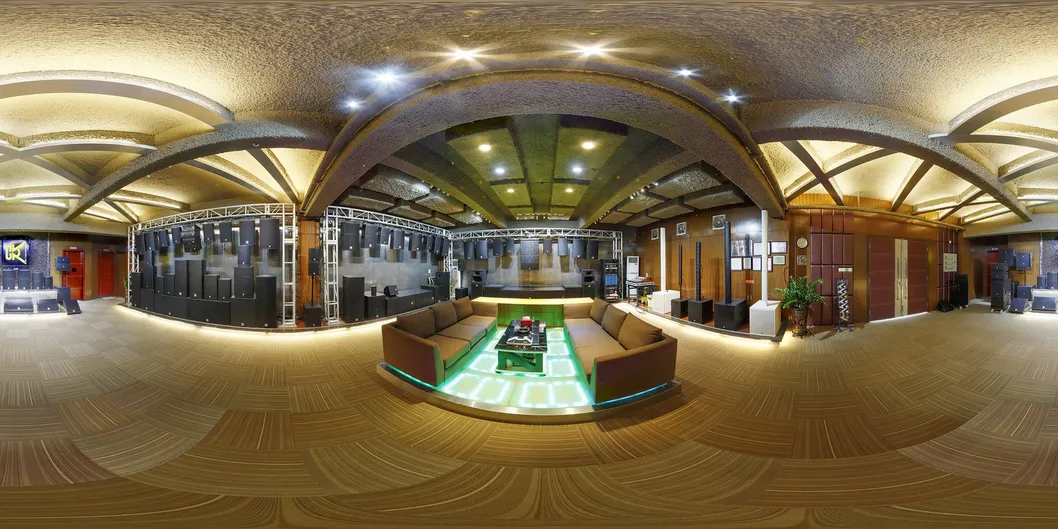

Office Environment Show Room
Frequently Asked Questions
What are the main components of the W-110B line array?
The W-110B consists of one 10-inch neodymium woofer and one 3-inch neodymium tweeter, providing high performance in a compact design.
Can this system be used for both indoor and outdoor events?
Yes, it is a multi-purpose system suitable for indoor theaters and rooms, as well as outdoor events, clubs, and bars.
Is it possible to switch between passive and active modes?
Yes, the system is designed to be easily switched by installing specific power amplifier modules or passive back panels.
What type of enclosure material is used?
The speakers are constructed using high-quality Birch Plywood with a textured high-density polyurethane coating for durability.
How can the speakers be installed?
The system supports multiple installation methods including stacking, flying, or standing, depending on the venue's requirements.
What is the coverage angle of the W-110B?
The nominal coverage is 110° horizontally and 10° vertically, ensuring wide and precise sound dispersion.
