Basic Info.
Model NO.HD3D-3D1014TPC802ZM4
Screen Size10.1inch
Waterproof GradeIP69
CertificationCE
Warranty1 year
MaterialAluminum Alloy
Touch TypeCapacitive Touch Screen
Resolution1024 X 600
Image Modes2D/3D Free Switching
Video Input4-Channel AHD Panoramic Camera
Product Description

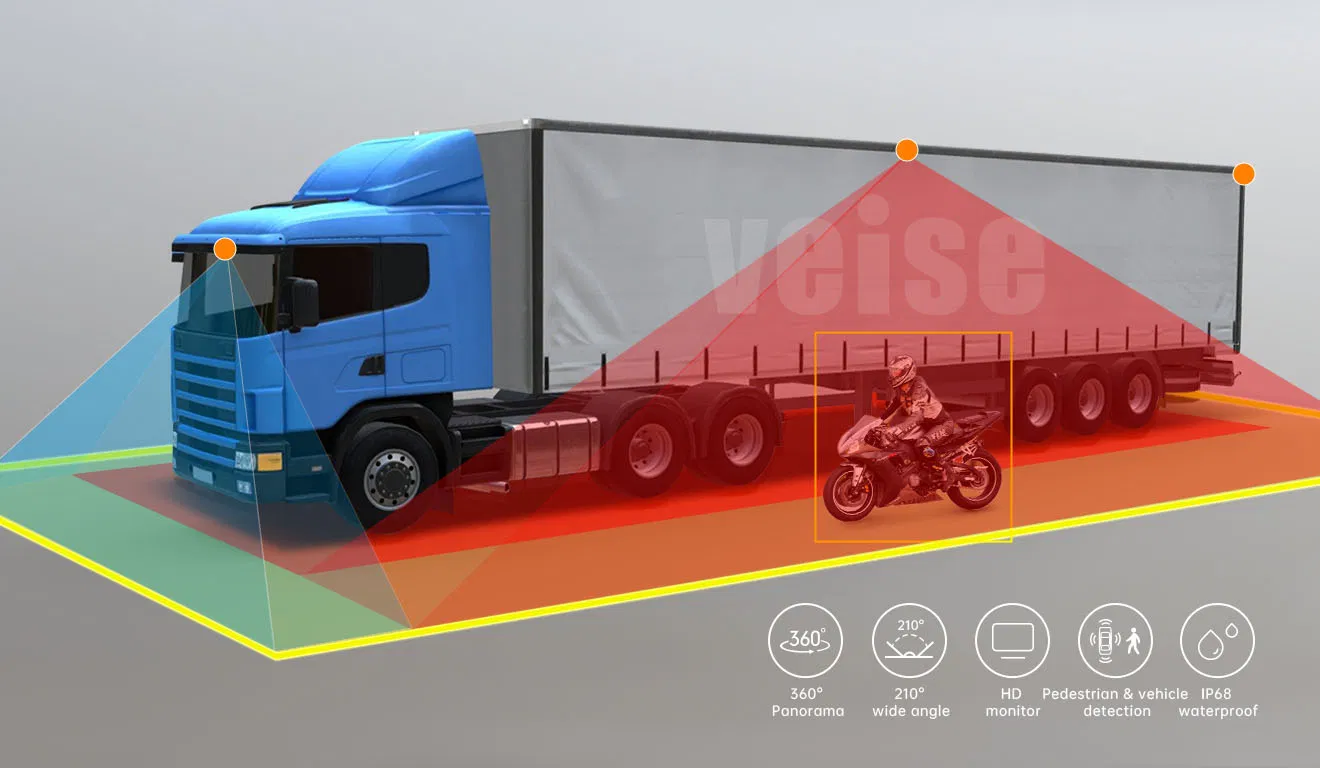

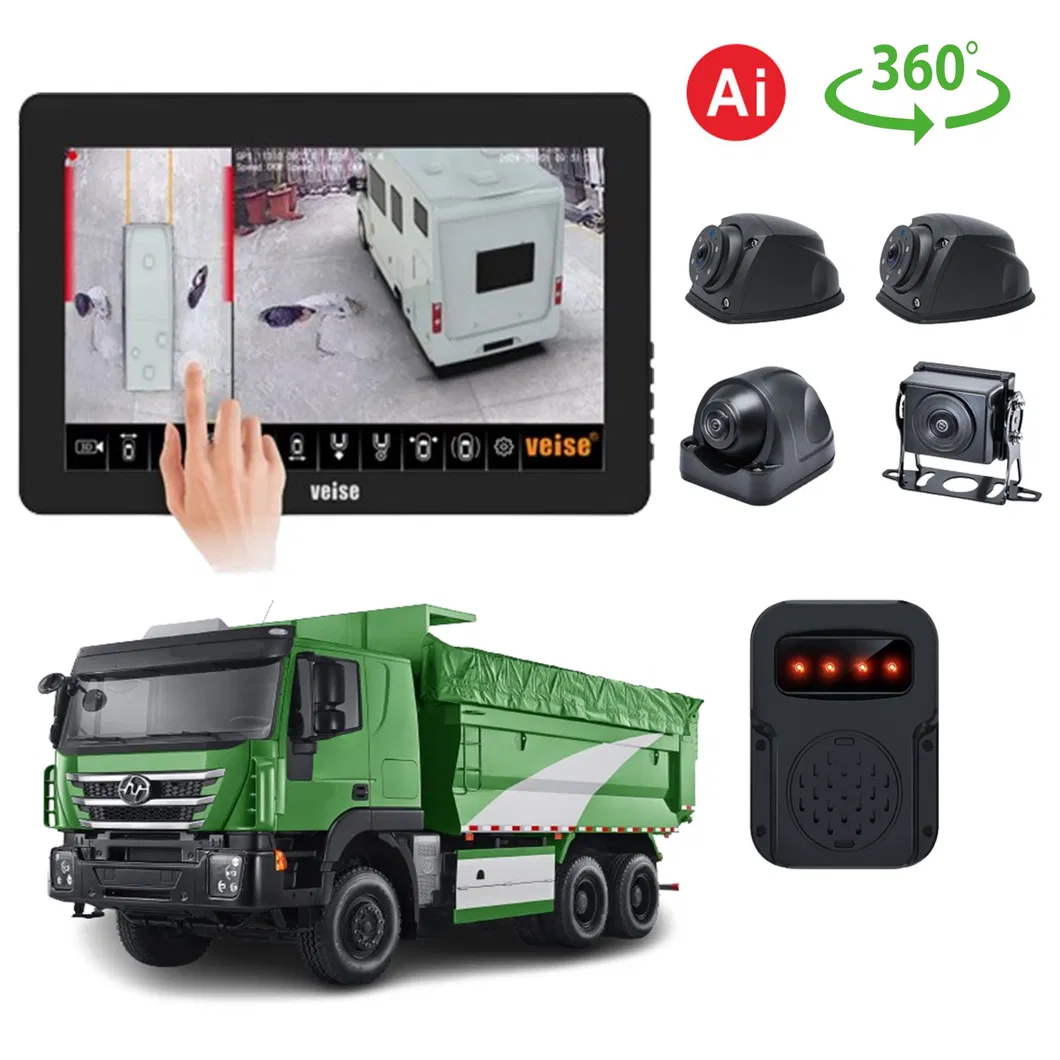

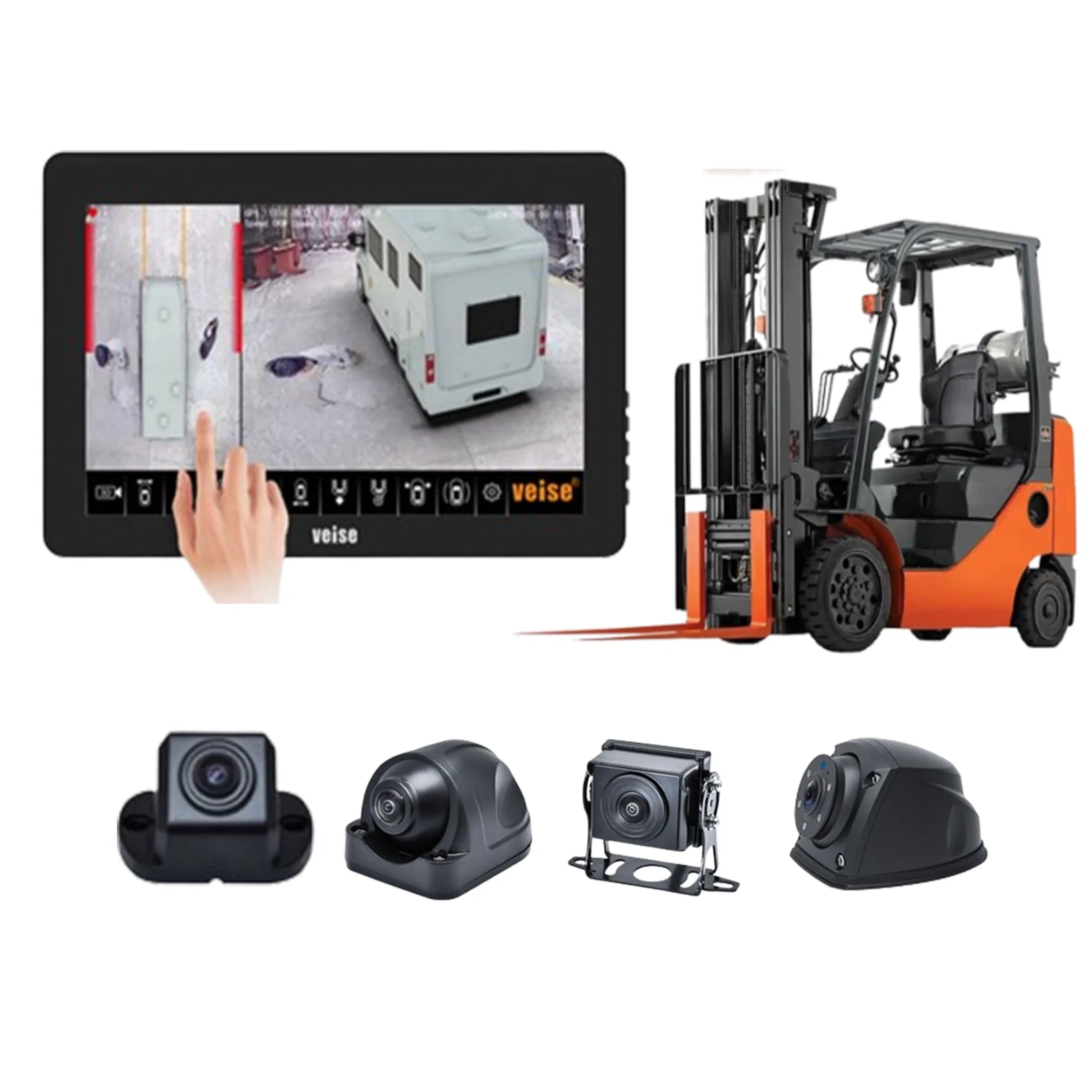

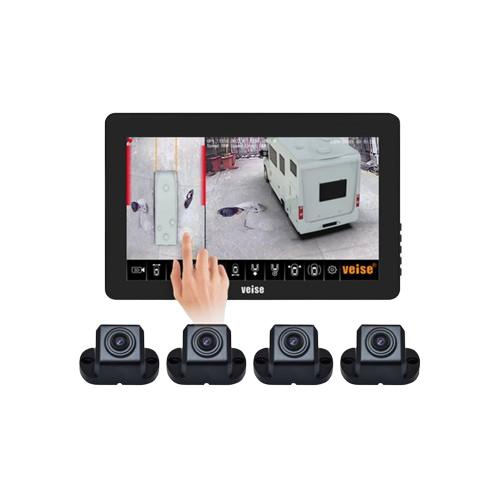

4 Channel 360 Degree Camera System for Trucks & Construction Machinery

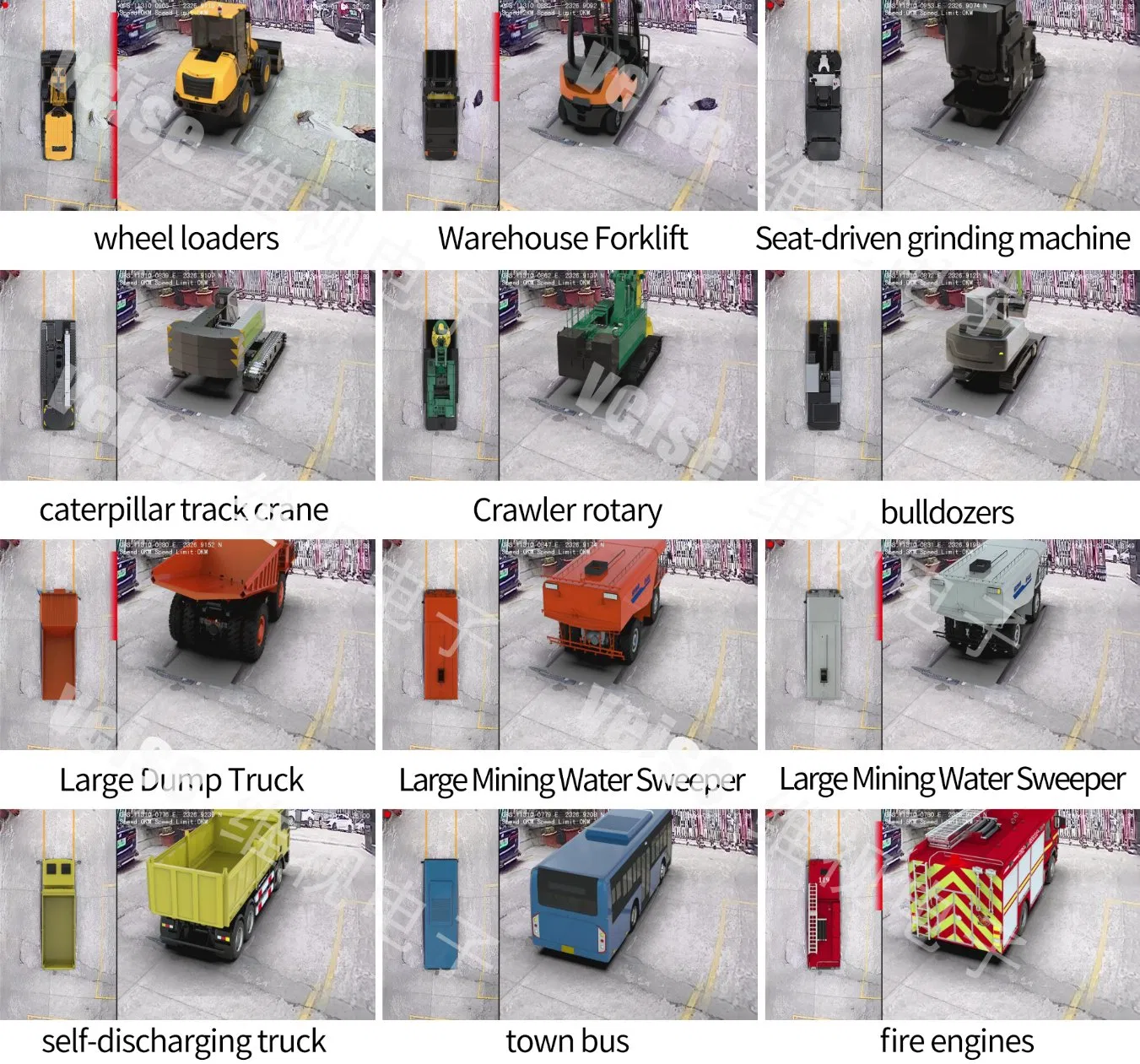

This AVM Panoramic Surround View Display Integrated System captures ultra-wide-angle images from four or six cameras. Special algorithms correct distortion and stitch images to provide a complete 360° view of the vehicle's surroundings.
Around View Monitor (AVM) Features

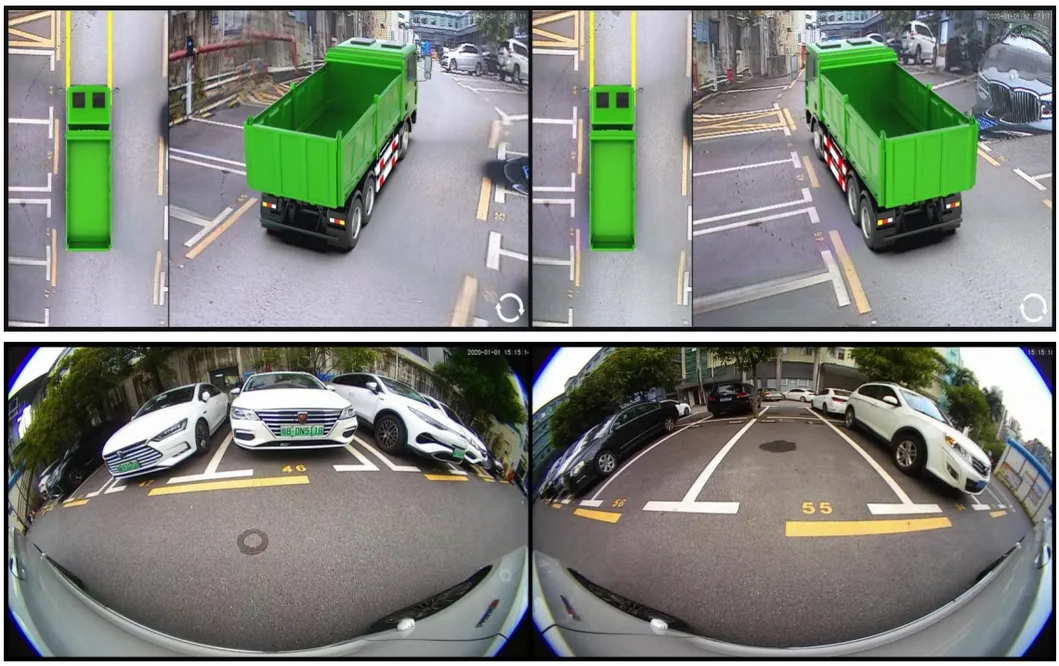

- Intelligent Stitching: Automatic and manual rapid stitching through GPS and steering signals to switch between 3D/2D driving modes.
- Detection and Warning: Built-in AI vision algorithm for 360° blind-spot-free collision prevention and safety distance warnings.
- User-Friendly Control: Full capacitive touch control to switch display modes easily.
- Automatic Switching: At speeds below 25 km/h, the system automatically displays warning screens and lane change assist.
- Robust Construction: IP69K waterproof rating for cameras and IP65 for the monitor, suitable for harsh environments.
Technical Specifications
| Category |
Specification Details |
| Operating System | LINUX |
| Display Size & Brightness | 10.1 inches, 600 cd/m² |
| Viewing Angle | 85/85/85/85 (Left/Right/Up/Down) |
| Brightness Adjustment | Auto brightness based on ambient light |
| AI Warning Functions | BSD (Blind Spot Detection) + FWC (Forward Collision Warning) |
| Detection Targets | Pedestrians, Non-Motor Vehicles, and Vehicle Recognition |
| Video Format & Recording | H265 format, 1080P Resolution, SD Card Storage |
| Operating Voltage | DC 12-36V |
| Operating Temperature | -20°C to +70°C |
| Vibration/Shock Resistance | GB/T 2423.56-2018 Standard (5G Random) |
Panoramic Camera Details (CHD-802Z)
Resolution1080P
Horizontal Angle210 Degrees
Vertical Angle126 Degrees
WaterproofIP68
Low Illumination0.01 Lux (Starlight Full-color)

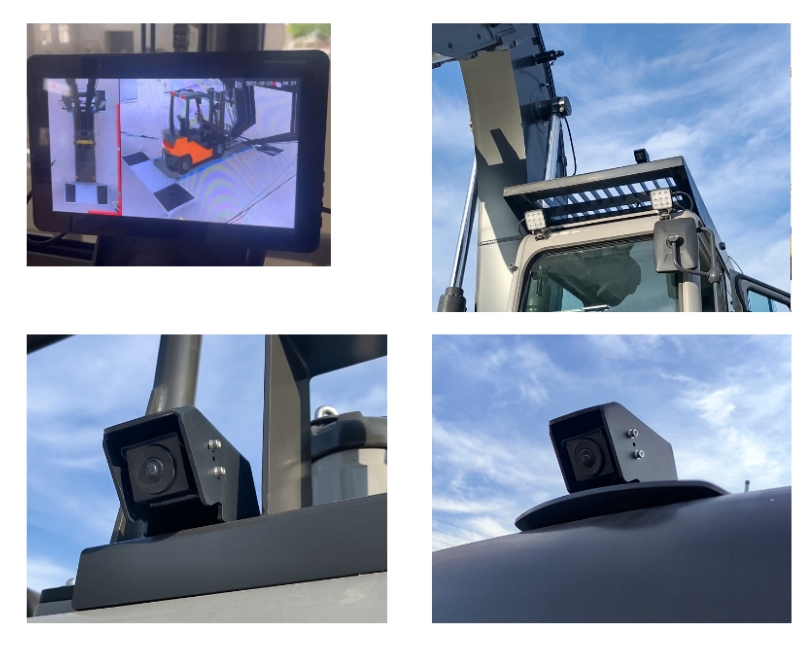

Product & Factory Gallery

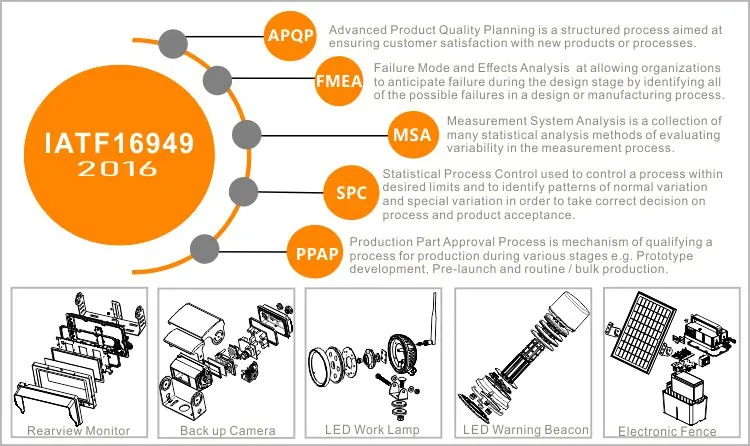

Quality Control & R&D

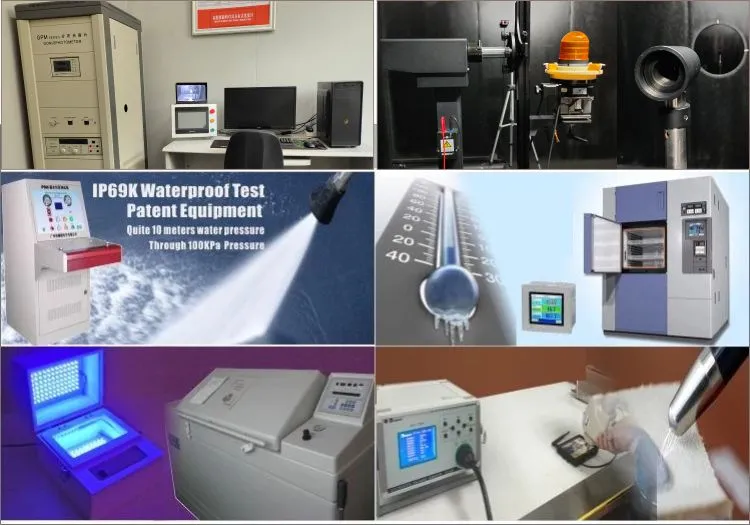

* Testing includes light intensity analyzers for ECE R65 conformity and sealed pressure testers for IP69K waterproof verification.
Certifications & Industry Presence
Frequently Asked Questions
1. What is the main advantage of the 3D Panoramic View system?
The system provides a seamless 360-degree view around the vehicle, eliminating all blind spots and allowing drivers to switch between 2D and 3D modes for better spatial awareness.
2. How does the AI Vision Warning function work?
The built-in AI algorithm identifies pedestrians, non-motor vehicles, and other vehicles in real-time, providing both visual and audio warnings to prevent collisions.
3. Is the camera system durable enough for construction machinery?
Yes, the cameras have an IP69K waterproof rating and are designed to withstand 5G random vibration, making them ideal for heavy-duty construction and agricultural use.
4. Does the system record video footage?
Yes, the system supports real-time 1080P loop recording in H265 format with SD card storage and local playback capabilities.
5. Can the monitor brightness be adjusted for night driving?
Absolutely. The monitor features automatic brightness control based on ambient light, typically reducing to 50% at night to ensure driving safety and visibility.
6. What voltage does the system support?
The system supports a wide working voltage range of DC 12V to 36V, making it compatible with various vehicles from small forklifts to large buses and trucks.
