Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
1 / 5
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System
Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System

Whc Solar System for Tile Roof Home Solar Power Panel Mounting System C Purlin Bracket with Stainless Steel Hook Solar Energy Aluminium Racking System

Customization: Available
Type: Lithium-Ion Batteries
Usage: Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home
Send Inquiry

Product Description

Basic Information
Model NO.
WHC15KW-Li-20KWH
Nominal Voltage
AC220V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Rechargeable
Chargeable
Product Name
Offgrid Solar Power System Home
Power
15kw
Solar Panel Type
Half Cell Solar Panel
Battery Type
LiFePO4 Lithium Battery
Inverter
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
System Type
off-Grid Solar Power System
Product Description
Offgrid Solar Power System Home with LiFePO4 Lithium Batteries

Model: WHC15KW-Li-20KWH

Off-grid solar system is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provides you continuous electricity but will also reduce your heavy electricity bills.

Solar System
Solar Mounting
Solar Bracket
Bracket Hook
Racking System

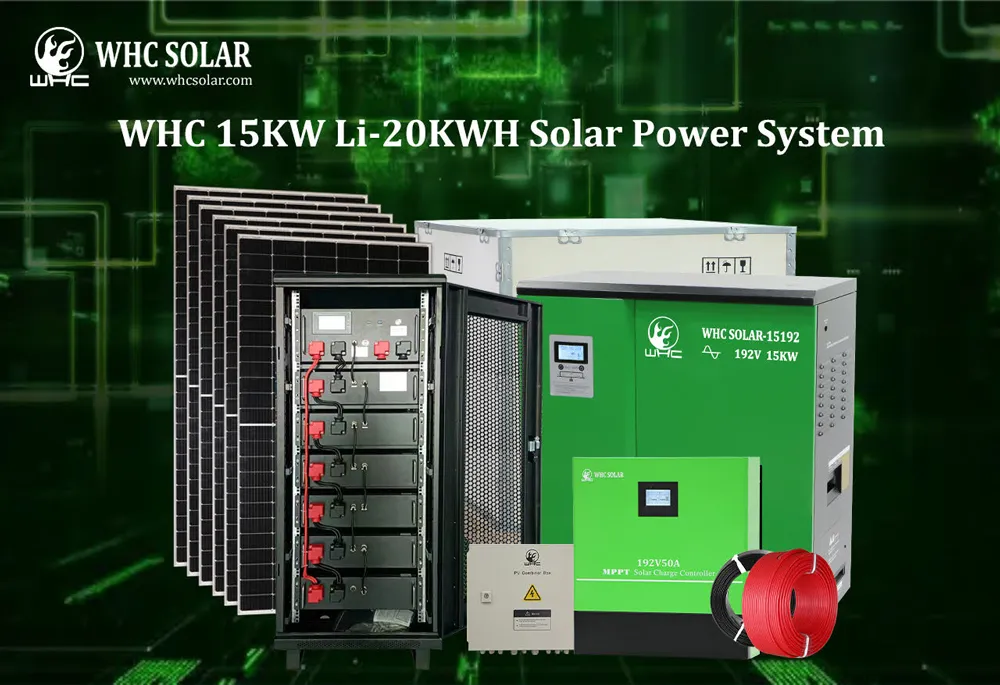

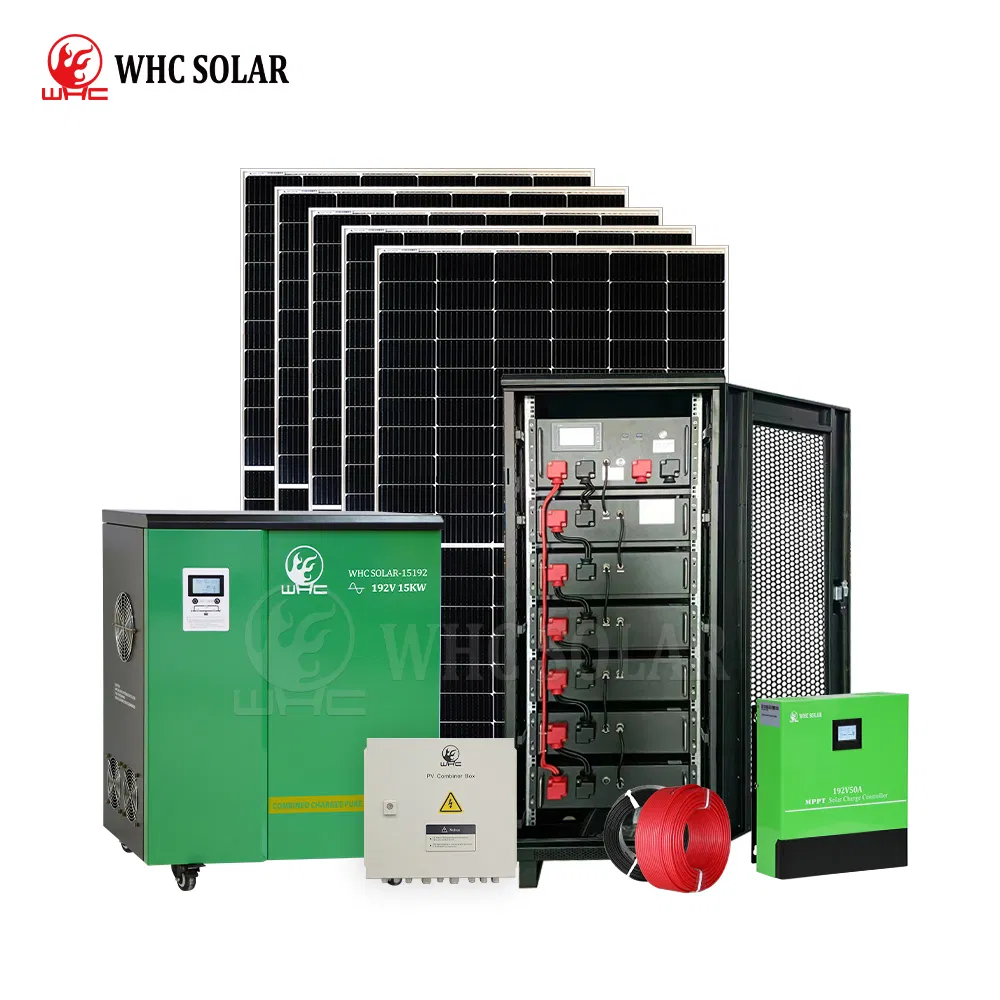

WHC15KW-Li-20KWH System Configuration
Item Description Quantity
Solar Lithium Battery192V100AH LiFePO4 Lithium Battery1 Pieces
Solar Panel450W Solar Mono Panel18 Pieces
Solar Controller192V 50A MPPT Controller1 Pieces
Solar Inverter192V 15KW Solar Inveter1 Pieces
PV Combiner BoxSix Input + Two Output1 Pieces
PV CableSingle-core 6mm2 PV cable 100m2 Pieces
PV Mounting SupportHot Galvanizing Ground Mounting Support1 Set
ConnectorMC4 Connector30 Pieces

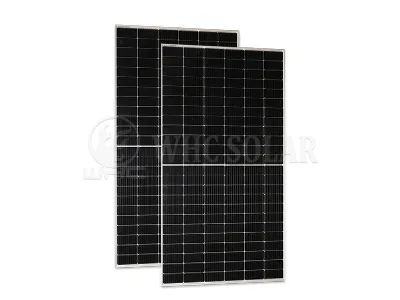

Mono Solar Panel
Mono Solar Panel
1. Model: WHC-450M-120
2. Max Power Voltage: 34.67V
3. Max Power Current: 12.98A
4. Open Circuit Voltage: 41.25V
5. Short Circuit Current: 13.89A
6. Dimensions: 1909*1134*35mm

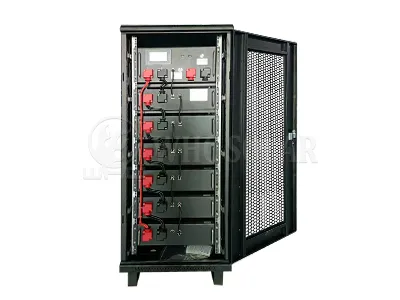

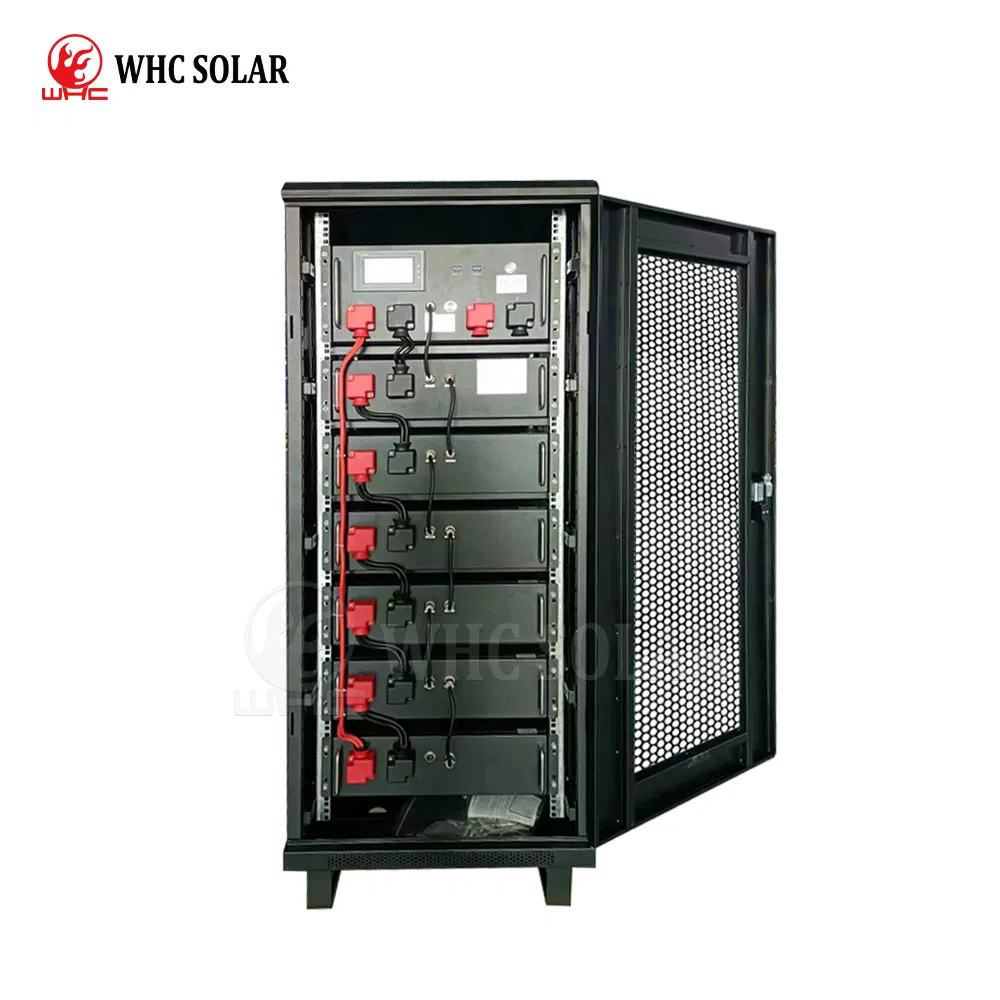

LiFePO4 Lithium Battery
LiFePO4 Lithium Battery
1. Model: WHC192V100AH
2. Type: LiFePO4 Lithium Battery
3. Nominal Voltage: 204.8V
4. Capacity: 20480WH
5. Lifespan: 10 Years
6. BMS Max discharging Current: 100A

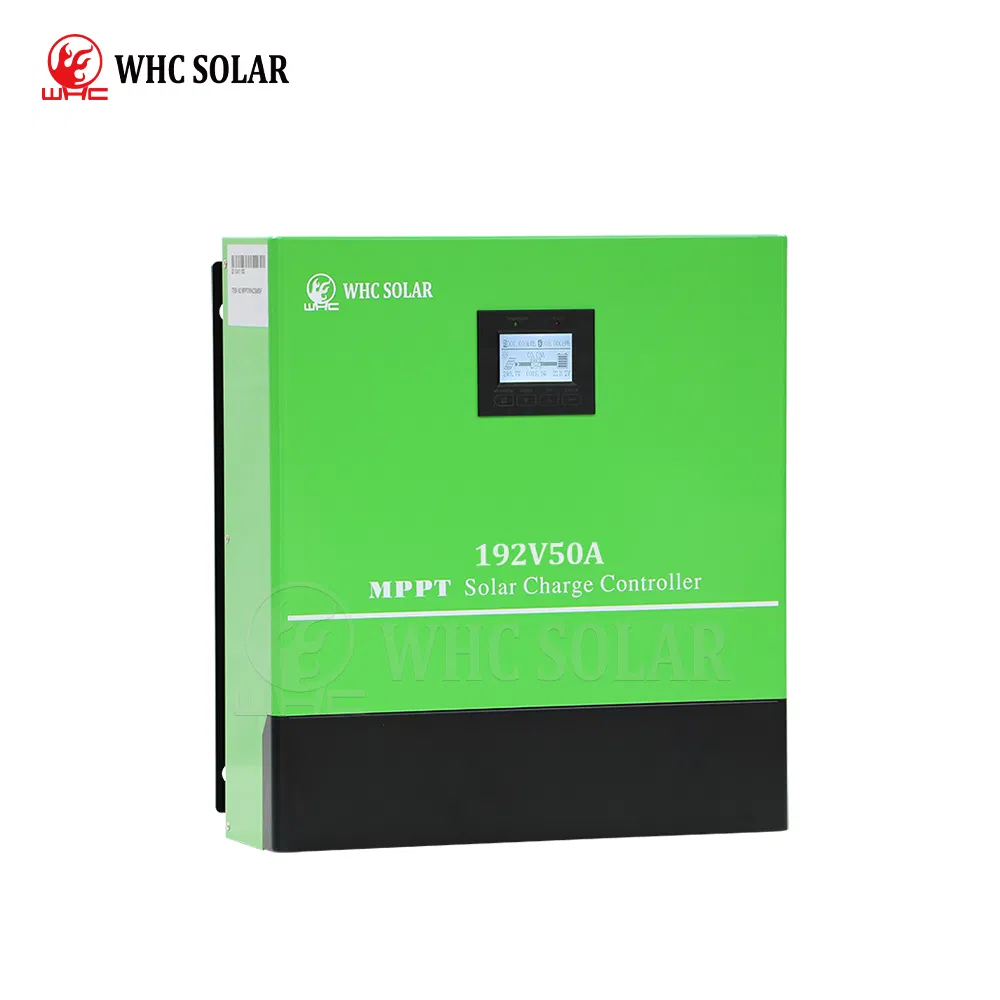

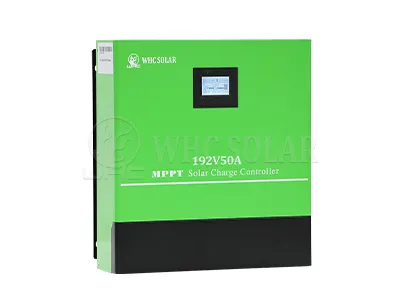

Solar Controller
Solar Controller
1. MPPT/WHC19250F
2. Type: Heatsink Cooling
3. Max. Charging Current: 50A
4. Max. PV Open Circuit Voltage: 430V
5. DC Input Voltage: 192V
6. MPPT Efficiency: 99%

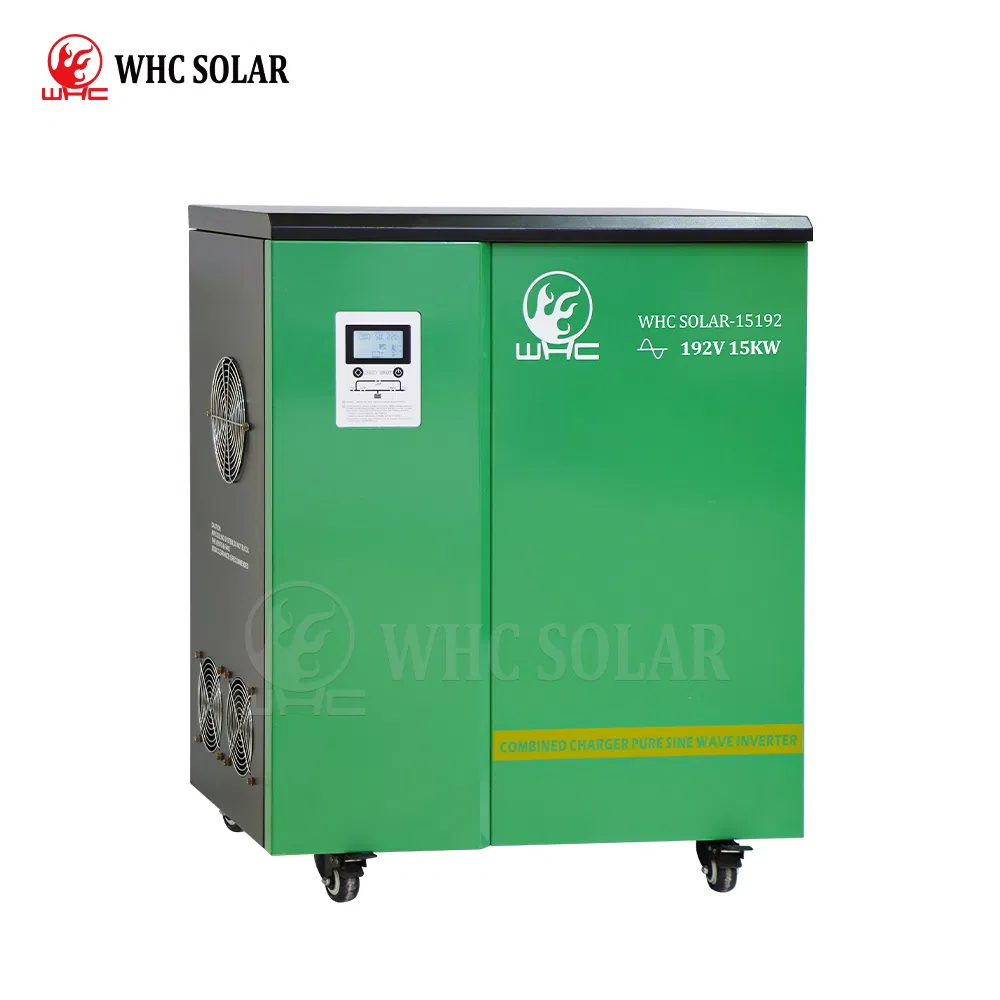

Solar Inverter
Solar Inverter
1. WHC192V 15KW Inverter
2. Type: Low Frequency IGBT Pure Sine Wave Inverter with Big Transformer
3. DC Input Voltage: 192V
4. AC Input Voltage: 220V 50/60HZ
5. Recharging current: 10A
6. AC Output Voltage: 220V 50/60HZ

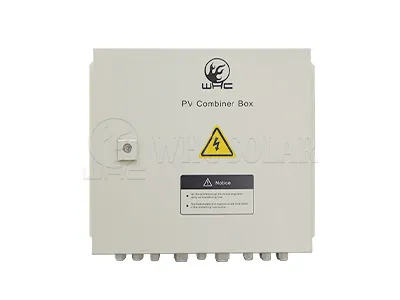

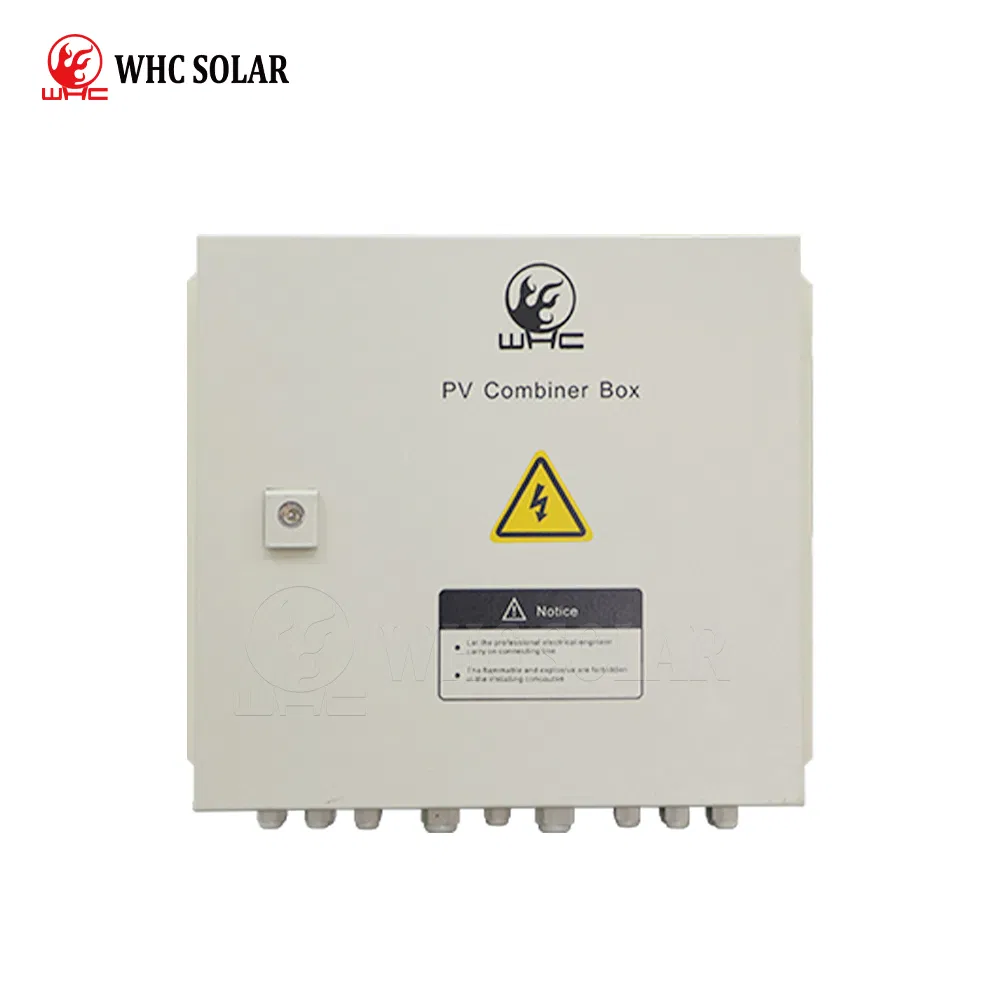

PV Combiner Box
PV Combiner Box
1. Combiner Box: N6 Plus
2. Waterproof IP65
3. Max output Voltage: 1000V
4. DC Output Circuit Breaker: Yes
5. Lightning Protection: Yes

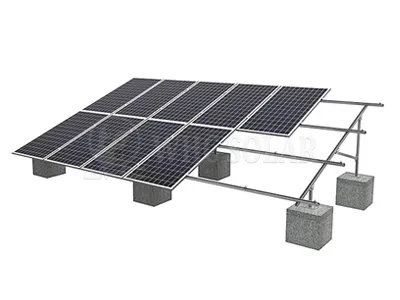

Mounting Support
Mounting Support
1. Solar Panel Bracket
2. Wind load: 55m/s
3. Structure: Anodized Aluminum
4. Material: Stainless Steel, Angle Adjustable

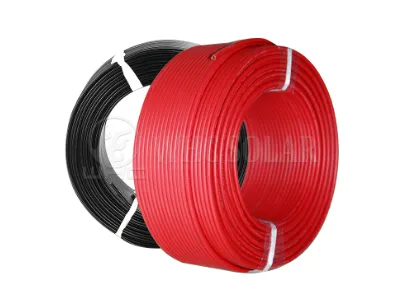

PV Cable
PV Cable
1. Solar Cable 100m
2. Type: RVV 1*6mm2
3. Material: Pure Copper
4. Temperature Rating: -40°C-120°C (More than 25 Years)

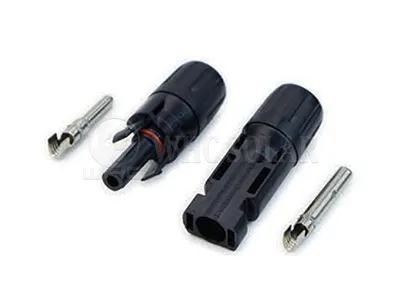

MC4 Connector
MC4 Connector
1. MC4 Solar Connector
2. IP68 Waterproof
3. High Quality Safe Protection
4. Quick Operation, Copper Connector

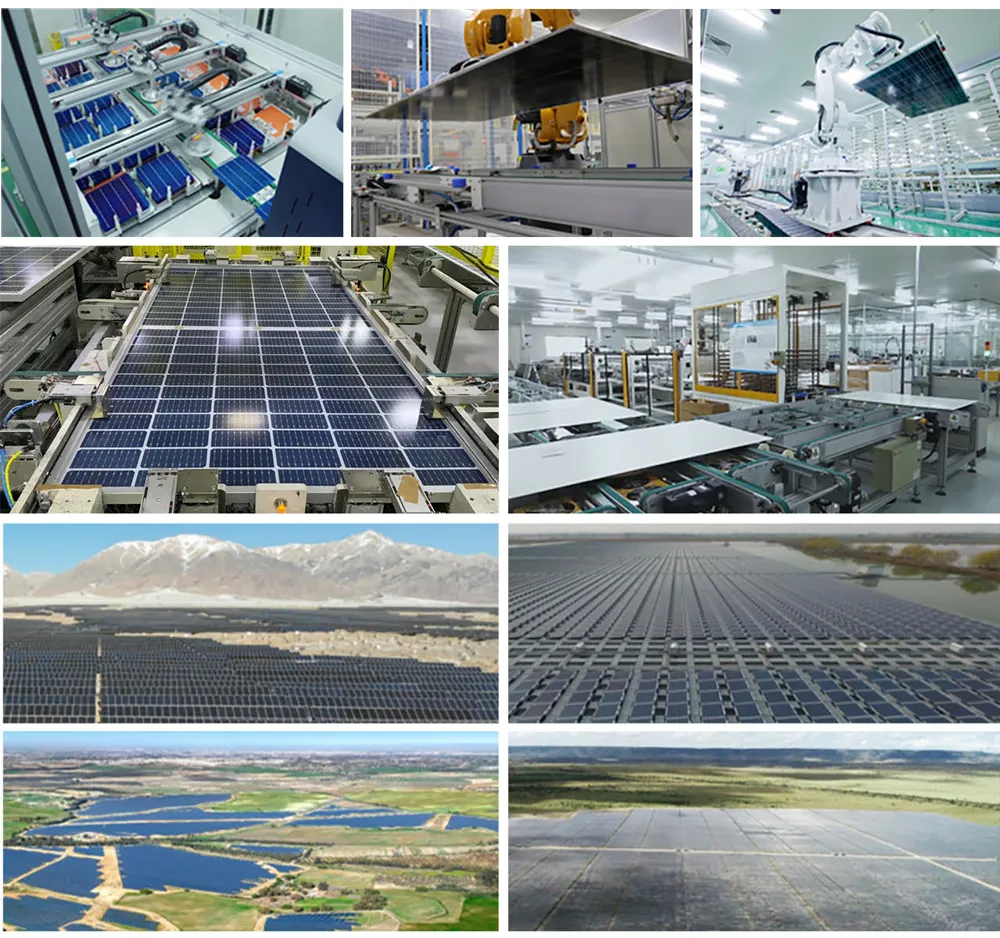

Solar System Overview
Strength & Delivery
Factory Profile

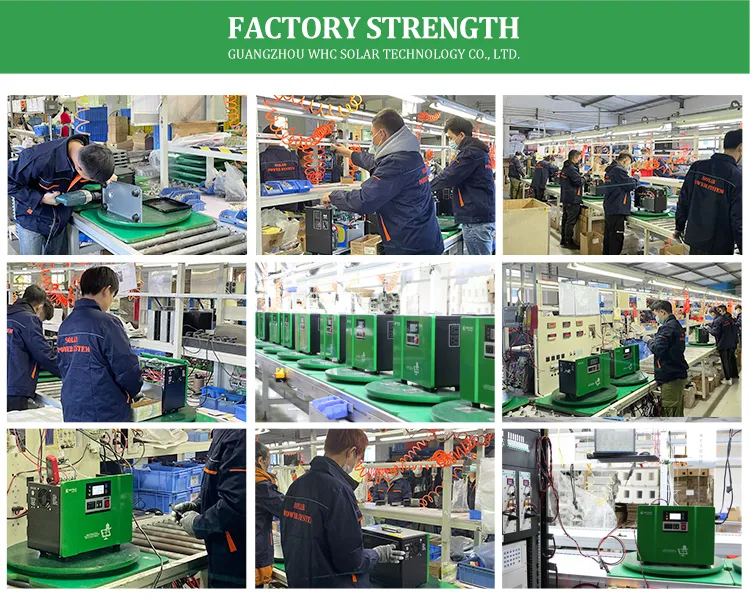

Factory Strength
Certificates
Packing and Delivery
Frequently Asked Questions
Are you a factory or trading company?
We are a factory dedicated to solar energy solutions.
Can you print my logo on the product?
Yes, OEM is available. We can print your logo on the battery case or product housing upon request.
What kind of certificates do you have?
We have won a number of national patents and passed CE, RoHS, and ISO9001:2008 quality management system certifications.
What is your delivery time?
Usually 14-20 days. Delivery time varies according to the specific product and order quantity.
Where is your main market?
Our products are distributed globally, primarily in Africa, South America, the Middle East, and Western countries.
How can I pay for the product?
We accept Money Gram, Western Union, T/T, and other convenient payment methods.
