Customization: Available
Under Vehicle Inspection System Monitor: Lines Scanning CCD
System Monitor Size: 33mm Length
Send Inquiry

Product Description

Basic Specifications
Model NO.
SPV3300
Display
Color and B/W
Computer
High Configuration
LED Lighting
High Intensity
Recognition
Local Plate Recognization
Bear Speed
40-50km/Hour
Certifications
CE, ISO
Capacity
500 Sets/Month
Product Features & Advantages
Key Features
  • Multi entrance management and statistics model.
  • Auto digital line scan, high-resolution undercarriage imaging.
  • Test completed during vehicle maneuvers without stopping.
  • Wide vision applicable to various vehicle types.
  • Image processing: enlarge, stretching, and cutting.
  • ALPR-Automatic License Plate Recognition (Optional).
Core Advantages
  • No need to park vehicles; supports speeds up to 50km/h.

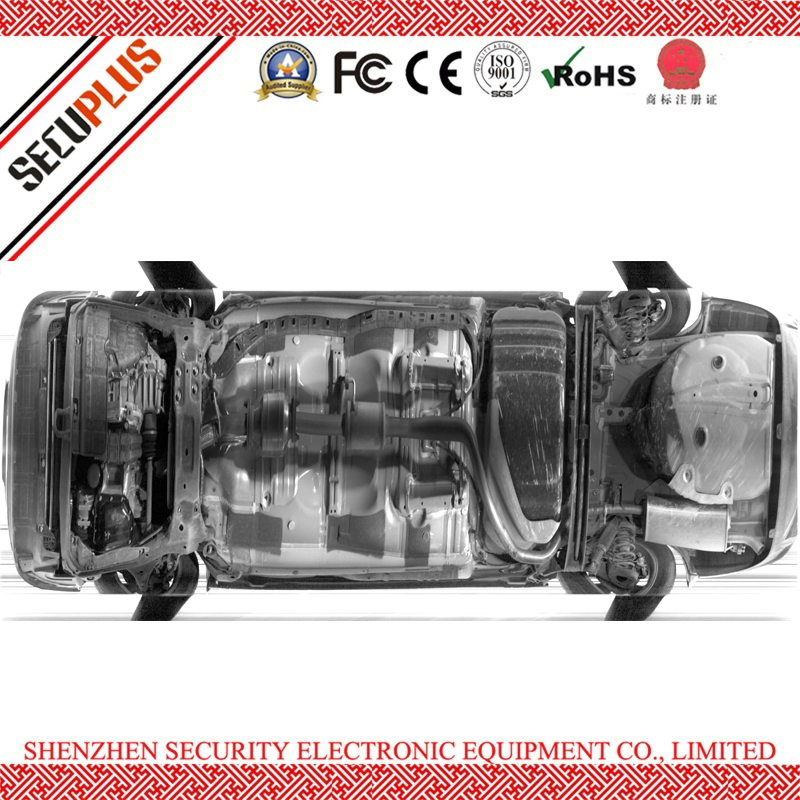

  • Complete undercarriage image display on monitor.
  • Quickly identifies threats, contraband, or hidden persons.
  • Reduces human resource investment and improves accuracy.
  • Scalable system with multi-language user interface.
  • Durable wooden packing for safe transport.
Technical Parameters
Camera System Sensor: Line scan CCD
Resolution: 5000*2048 pixels
Power: 24VDC, 3A
Illumination LED Lighting system, Power: 24VDC, 150W

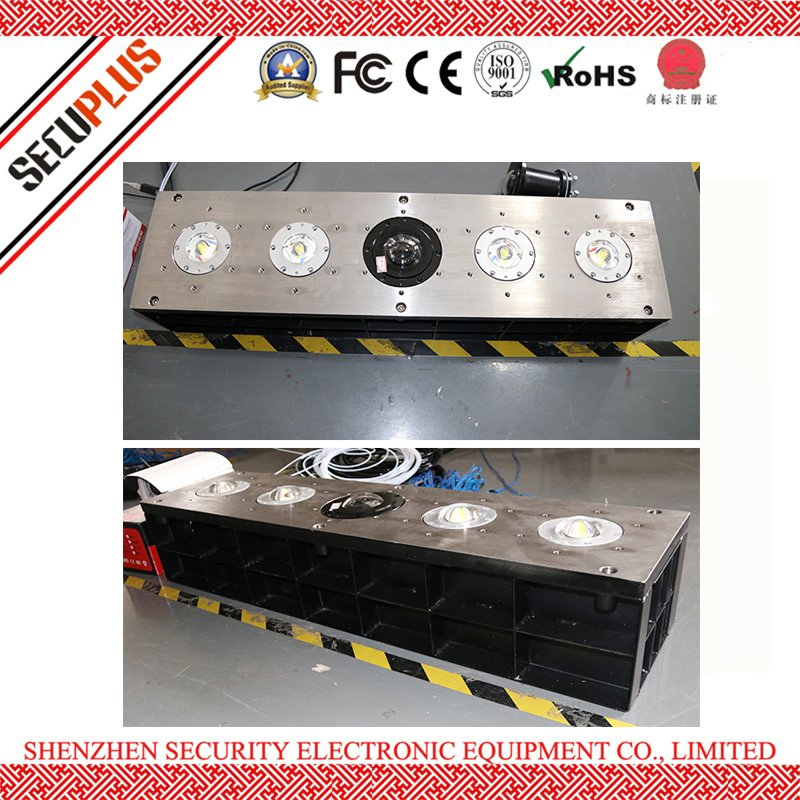

Embedded Parts Size: 1200mm x 350mm
Operating Temp: -25°C to +70°C
Controller Input: 2 channels induction coil
Communication: RS485, Ethernet (Optional)
System Host CPU: Intel Core Duo
Memory: 2G (Optional 4G)
Hard Disk: 500G SATA2
Monitor: 22 inch LCD (1920*1080)
Visual Display
UVSS Display 1
UVSS Display 2
UVSS Display 3
UVSS Display 4
UVSS Display 5
Frequently Asked Questions
Does the vehicle need to stop for a scan?
No, the system is designed for high-speed efficiency. It can capture high-resolution undercarriage images while vehicles are moving at speeds up to 50km/h.
What is the resolution of the under-vehicle images?
The system utilizes a professional line scan CCD camera providing a resolution of 5000*2048 pixels, ensuring clear imaging of objects as small as 2mm in diameter.
Can the system recognize license plates?
Yes, the system supports ALPR (Automatic License Plate Recognition) and RFID technology as optional features for associative storage of vehicle information.
What is the typical lead time for an order?
For items in stock, the lead time is typically 3-5 days. For custom production orders, it usually takes between 10-15 days.
What kind of warranty and technical support do you offer?
We provide a one-year warranty along with lifetime technical support. Remote training is free, and on-site engineering support can be arranged.
Is the system weather-resistant?
The embedded screening parts are designed to operate in temperatures ranging from -25°C to +70°C, making it suitable for various environmental conditions.
