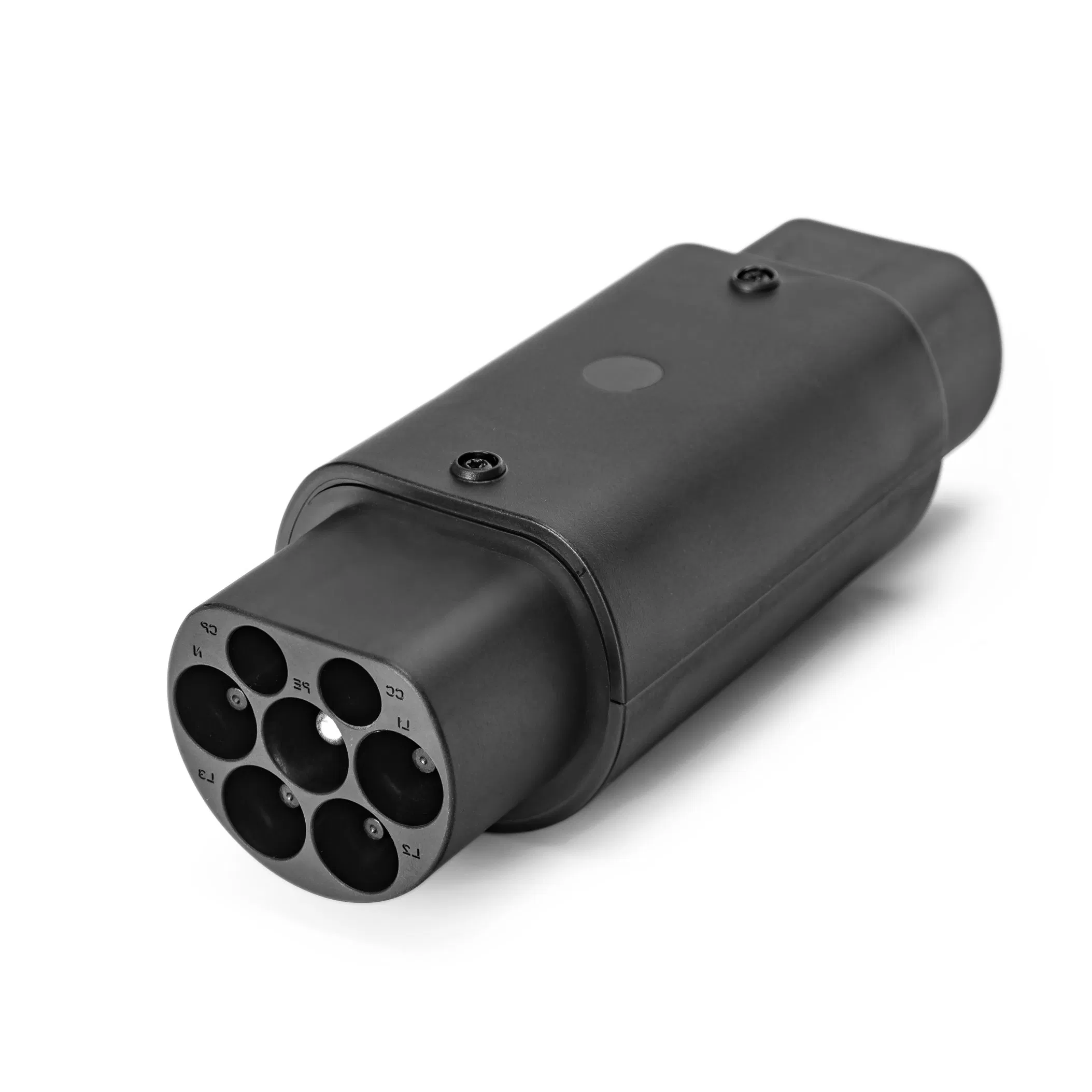

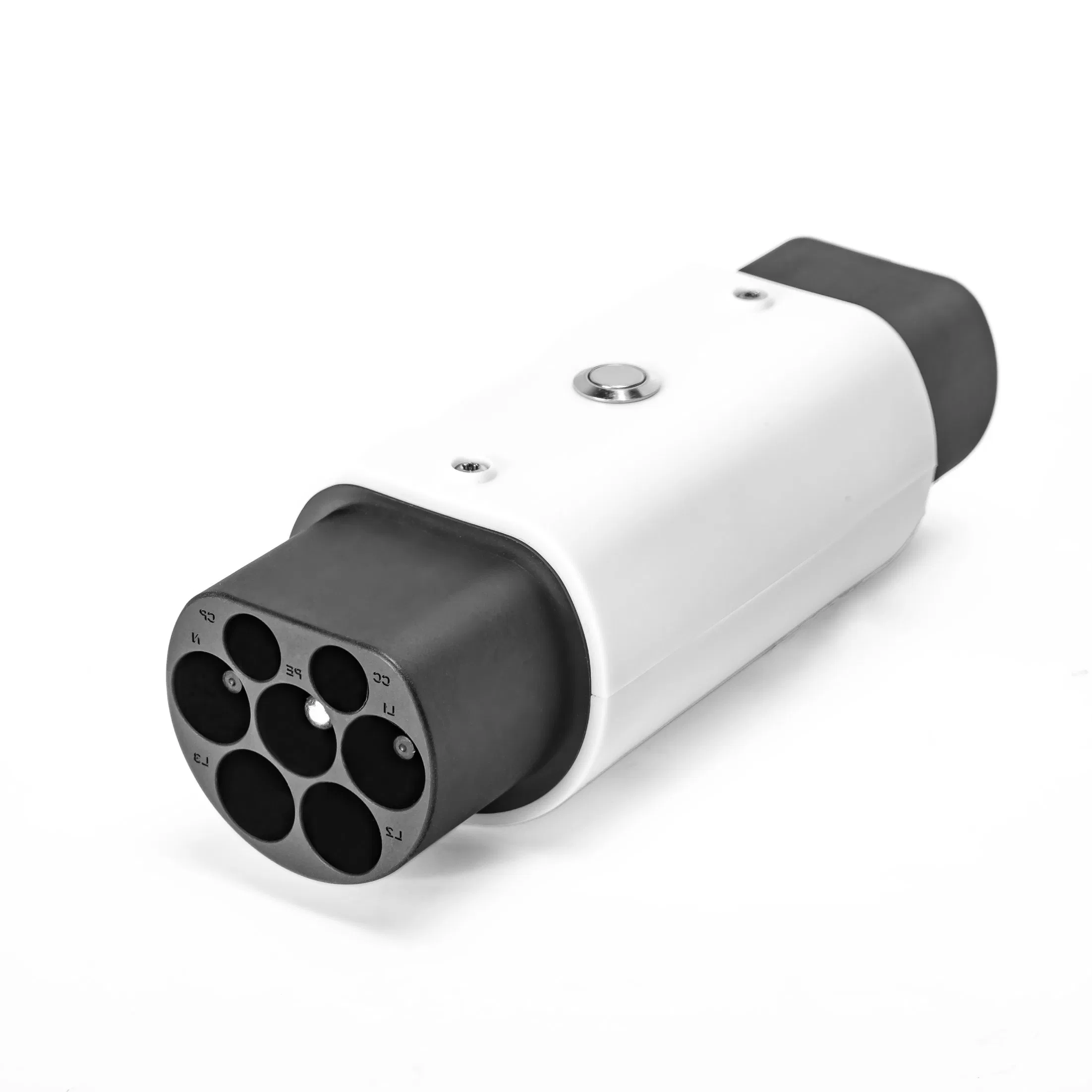

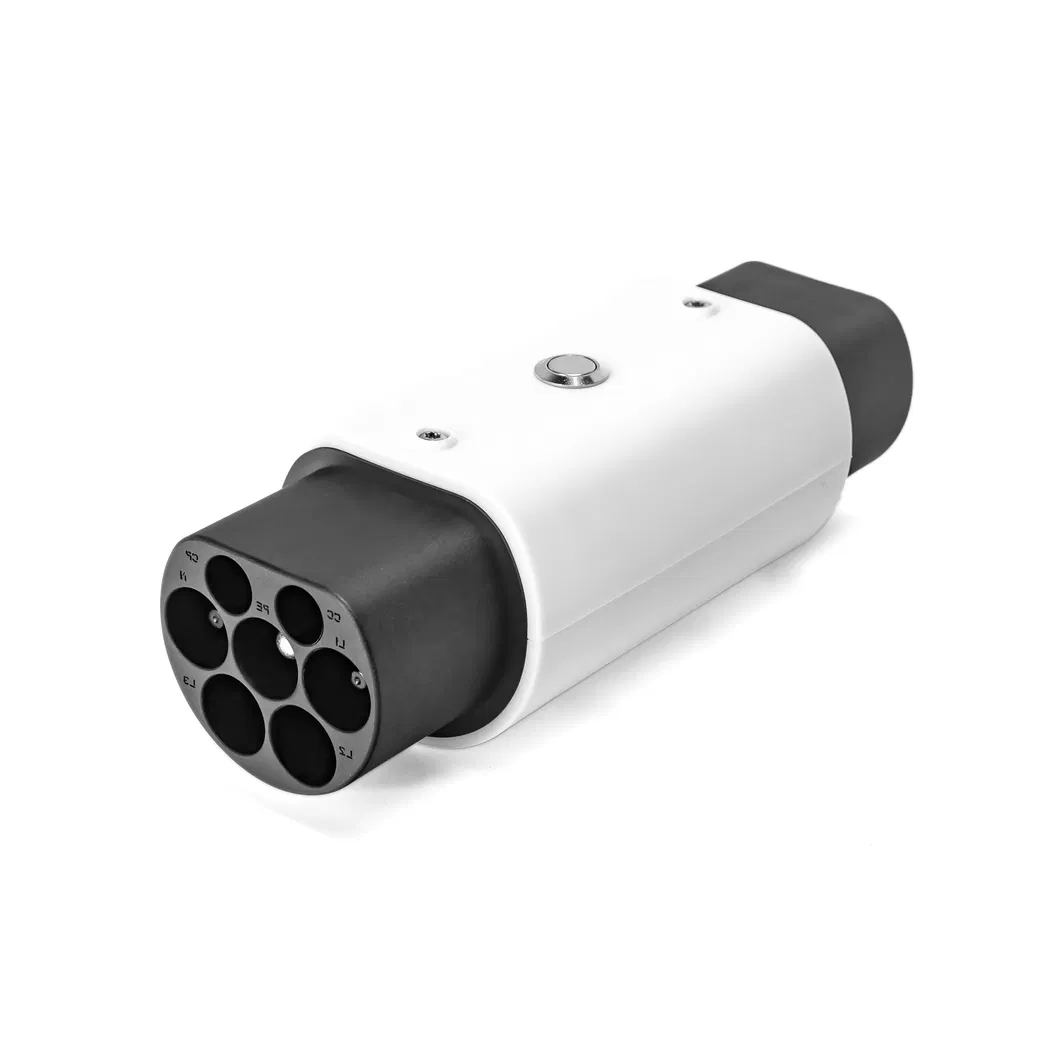

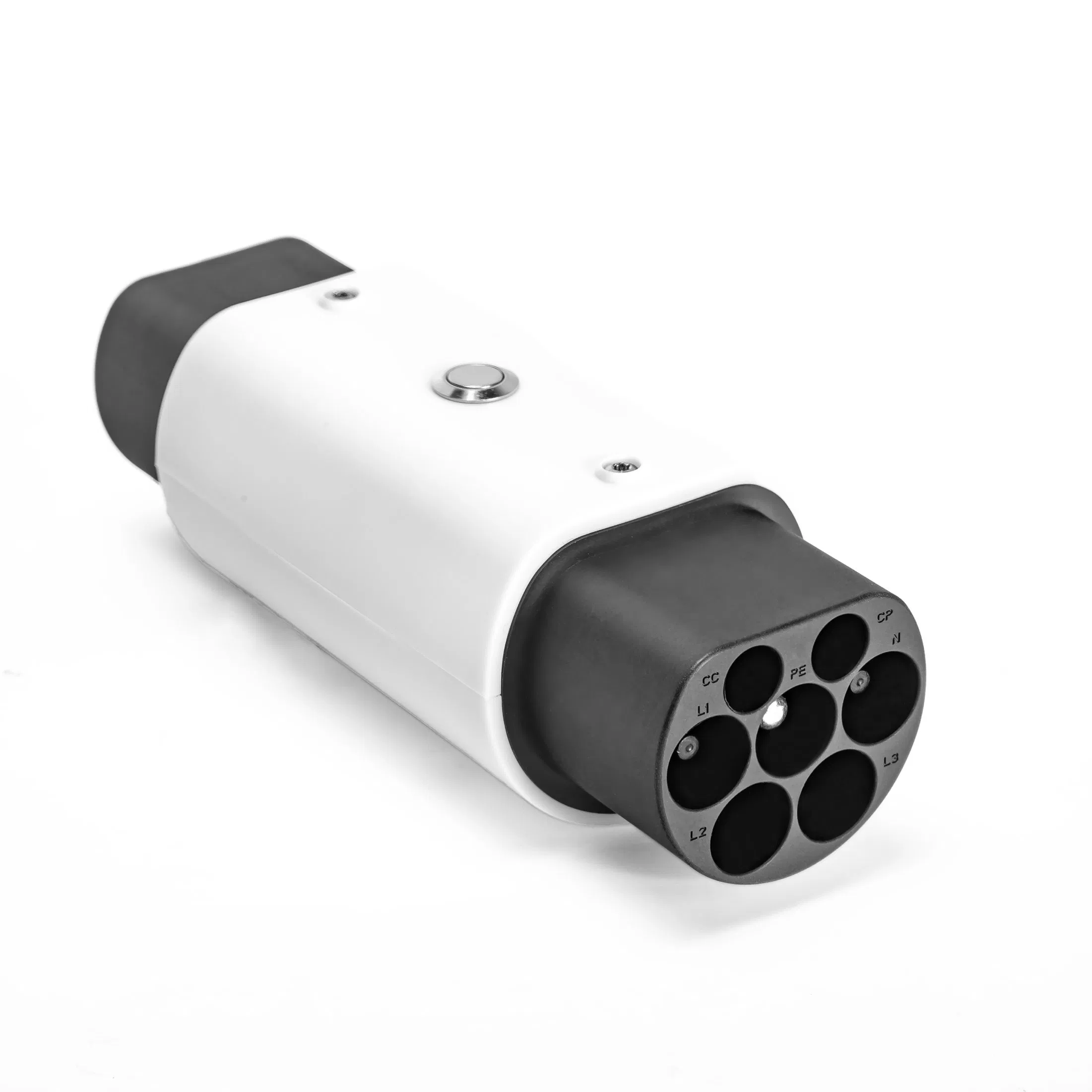

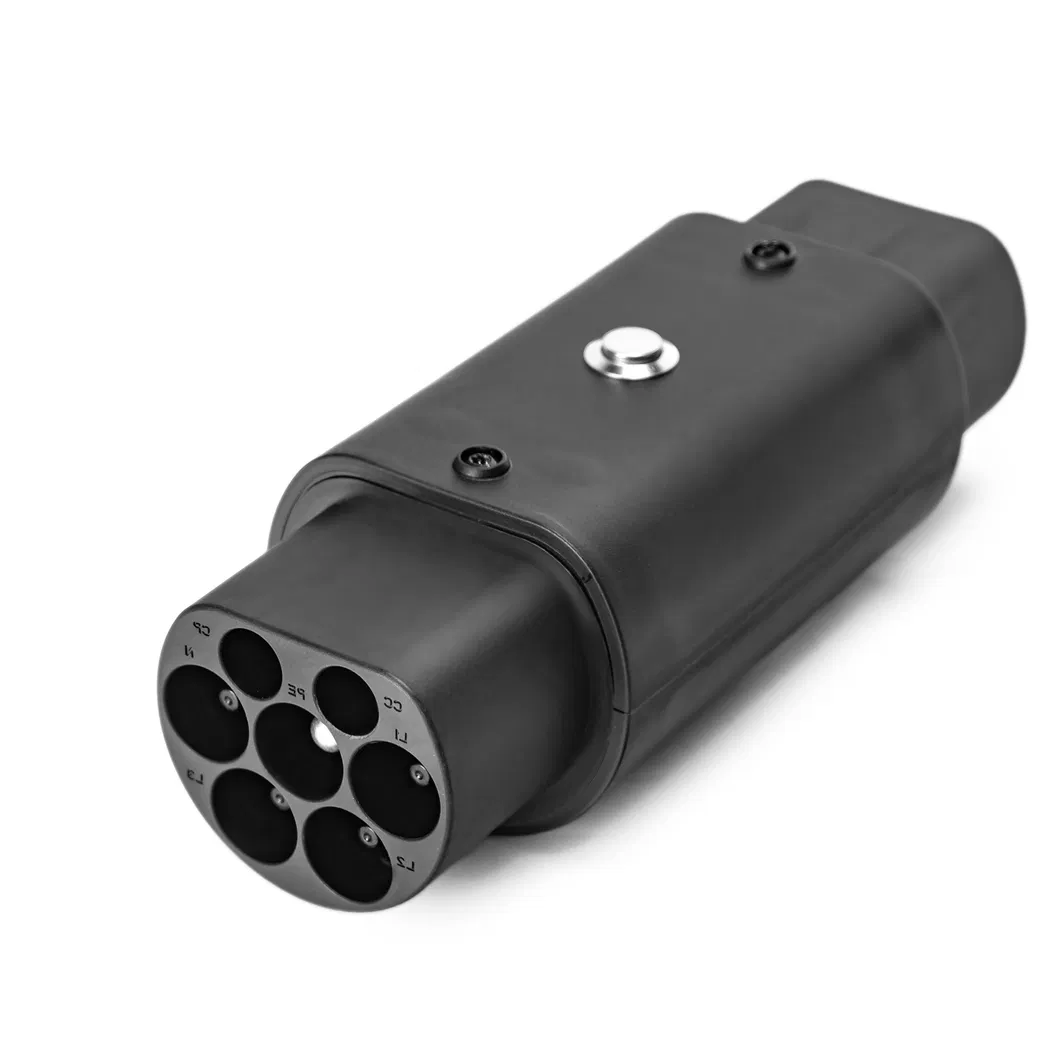

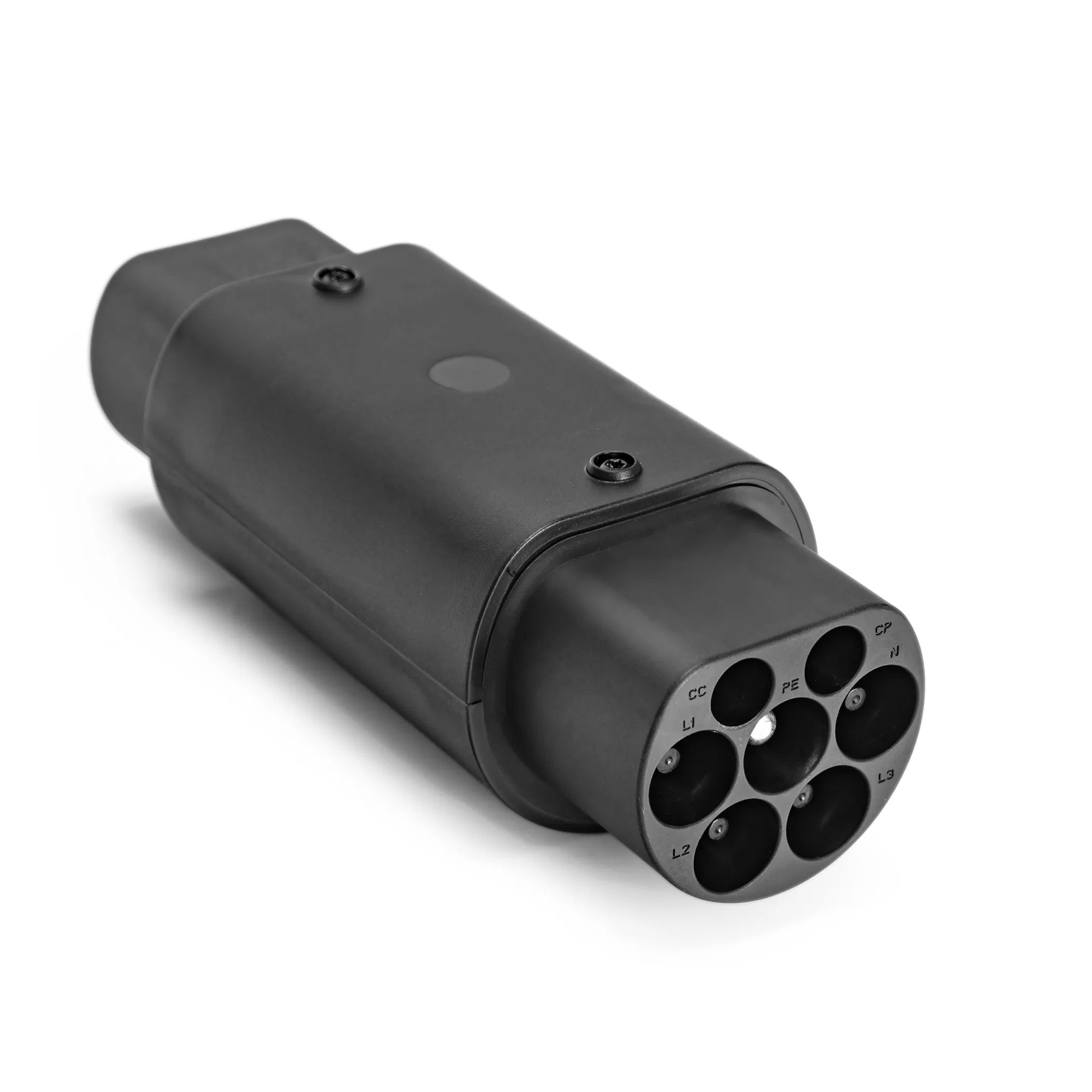

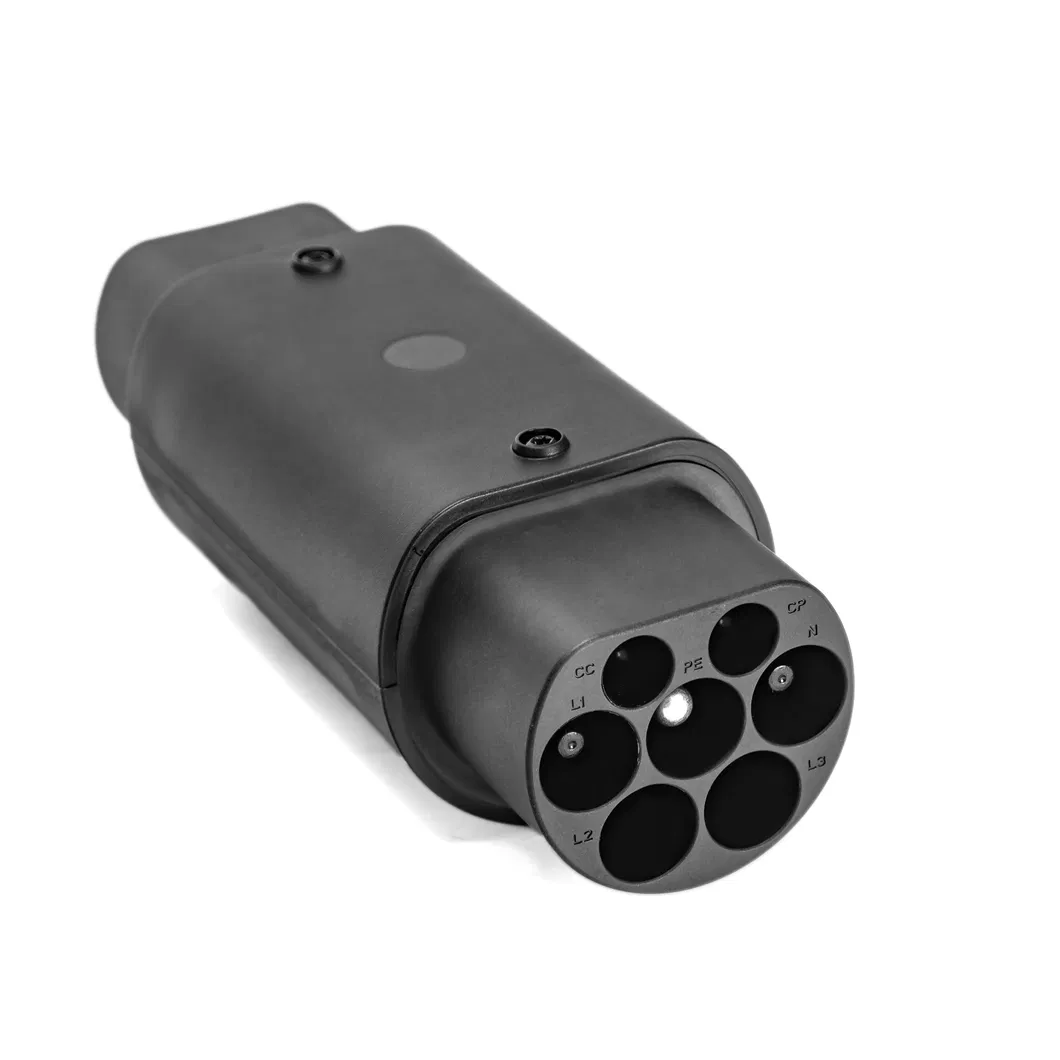

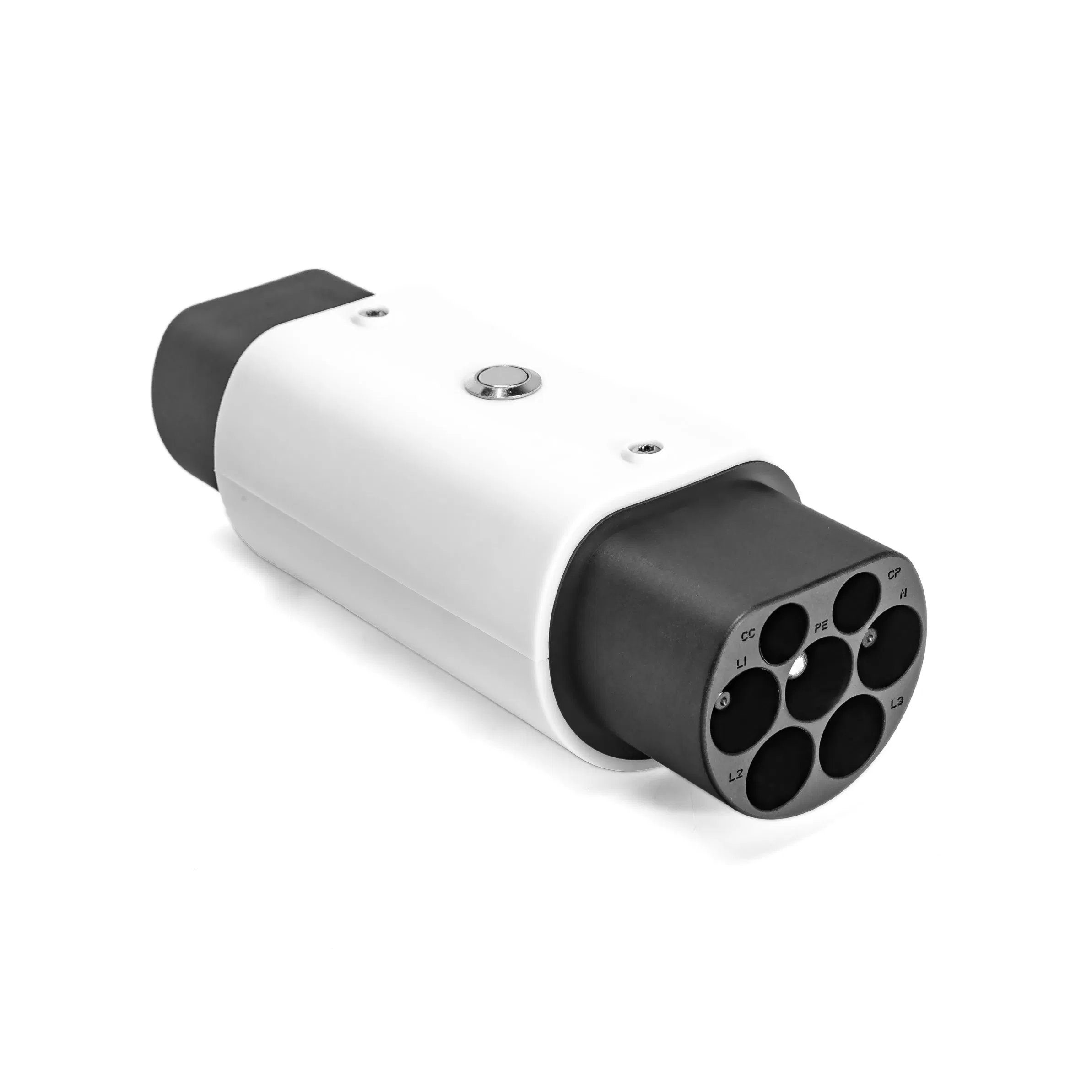

EV charging adapters are devices designed to facilitate compatibility between EV charging cables and various charging standards or connector types. These adapters allow users to interface with diverse connectors, such as Type 1, Type 2, CCS, CHAdeMO, and Tesla connectors, ensuring flexibility and accessibility in charging options.
| Rated Current | 32A |
| Rated Voltage | 250V |
| Insulation Resistance | >1000MΩ (DC500V) |
| Terminal Temperature Rise | <50K |
| Contact Resistance | 0.5 mΩ Max |
| Withstand Voltage | 2000V |
| Flammability Rating | UL94V-0 |
| Mechanical Life | No-load Plug in/out >10000 times |
| Coupled Insertion Force | F<100N |
| Casing Material | Thermoplastic |
| Terminal Material | Copper alloy, silver plating |
| Operating Temperature | -30ºC to +50ºC |
Our products are widely used in various fields, such as buildings and public works, mining, harbors, industrial equipment, transportation, and more. Most products hold CE, CB, TUV, or UL approvals and strictly conform to international standards like IEC60309, IEC62196, and IEC61439.
