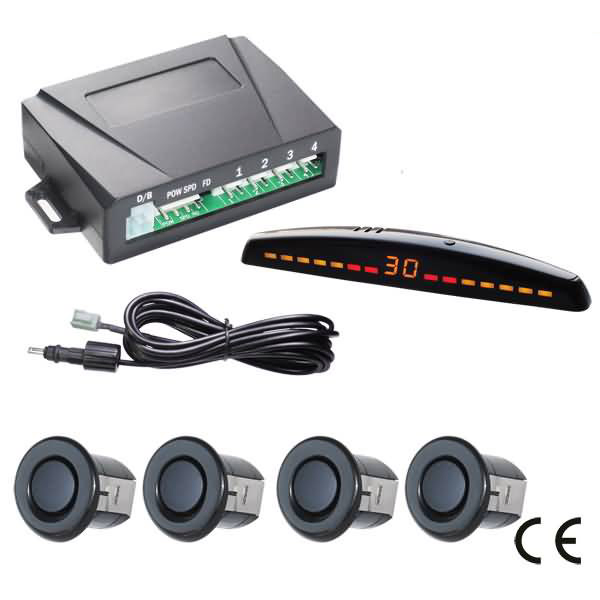

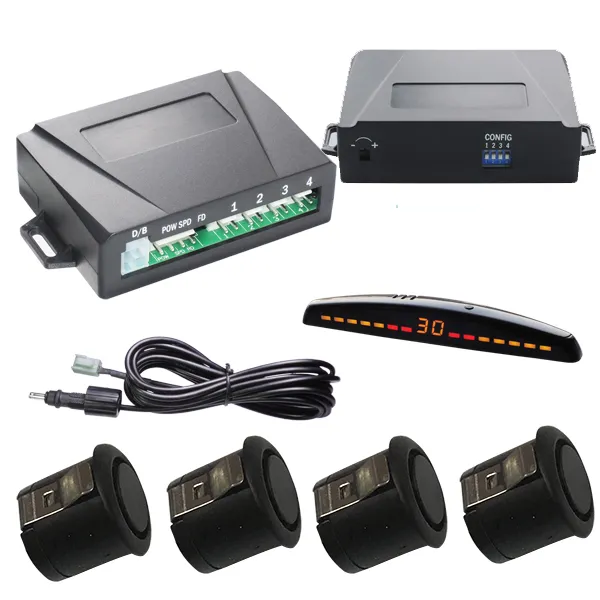

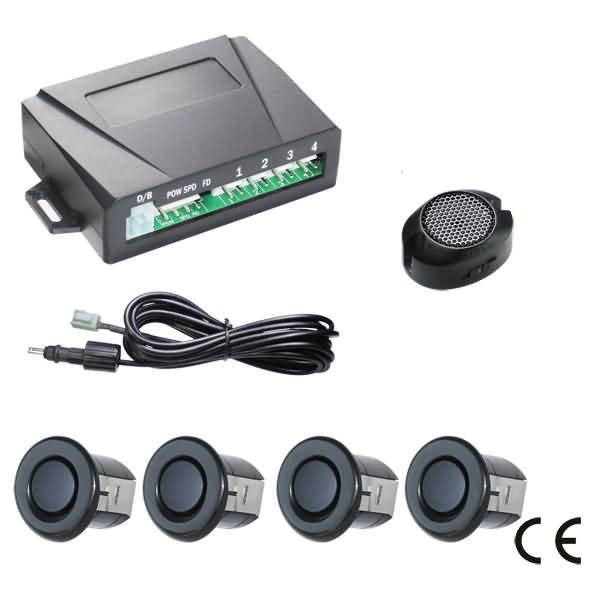

Reverse Barriers Car Reversing Radar Rear Parking Assist Alarm System
| Model number | CD01-4T3 |
| Sensor diameter | 18.5mm |
| Sensor cable | 2.5m with IP67 waterproof connector. |
| Sensor detection | 0-2.5m. |
| Display range | 0-2.5m for rear, 0-1.2m for front. |
| Buzzer range | 30cm-1.5m for rear, 30-80cm for front. |
| Distance readout | Meter and Feet free change |
| Warranty | 1 year |

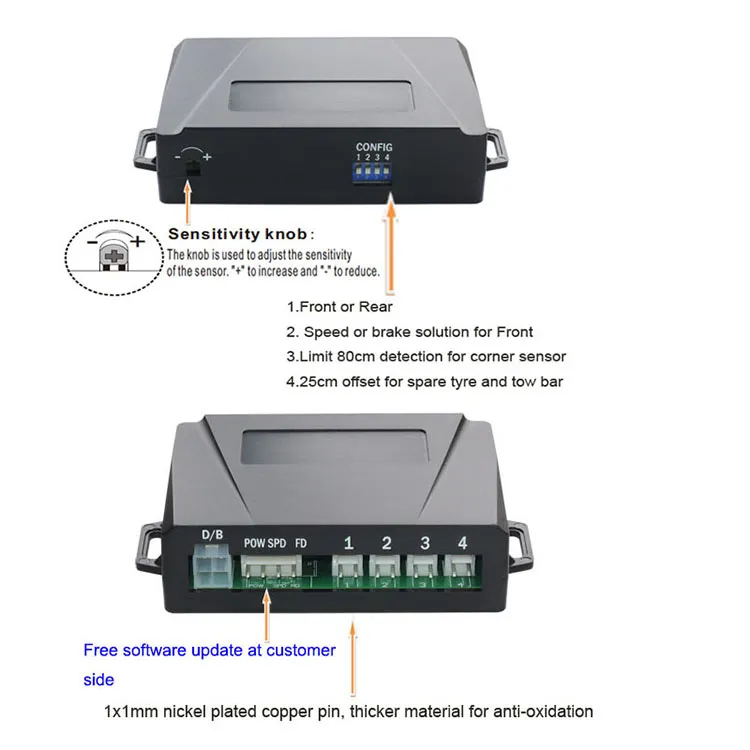

1) Sensor sensitivity is adjustable. You can adjust sensor sensitivity by yourself if it's too strong or too weak.

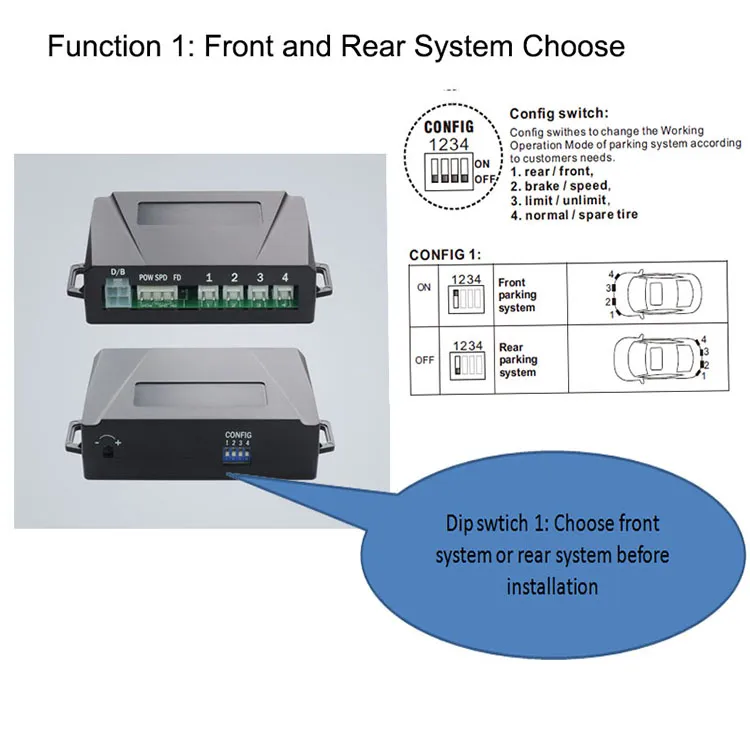

2) Brake activation and speed activation available. CONFIG1 chooses front system or rear system. CONFIG 2 chooses speed activation and brake activation for front system.

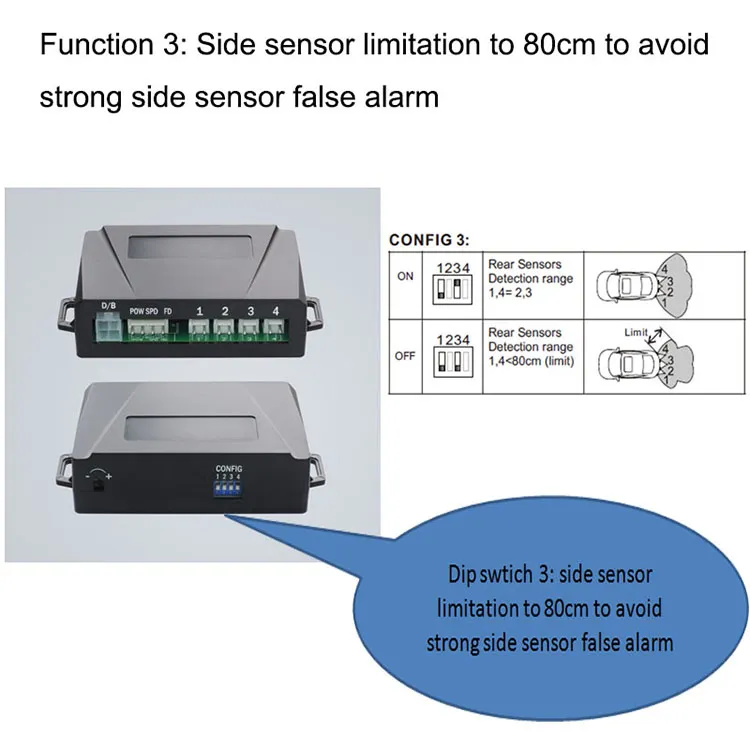

3) CONFIG3 makes side sensor detection limited to 80cm to avoid side sensor false alarm. System will not make bip alarm or show distance more than 80cm.

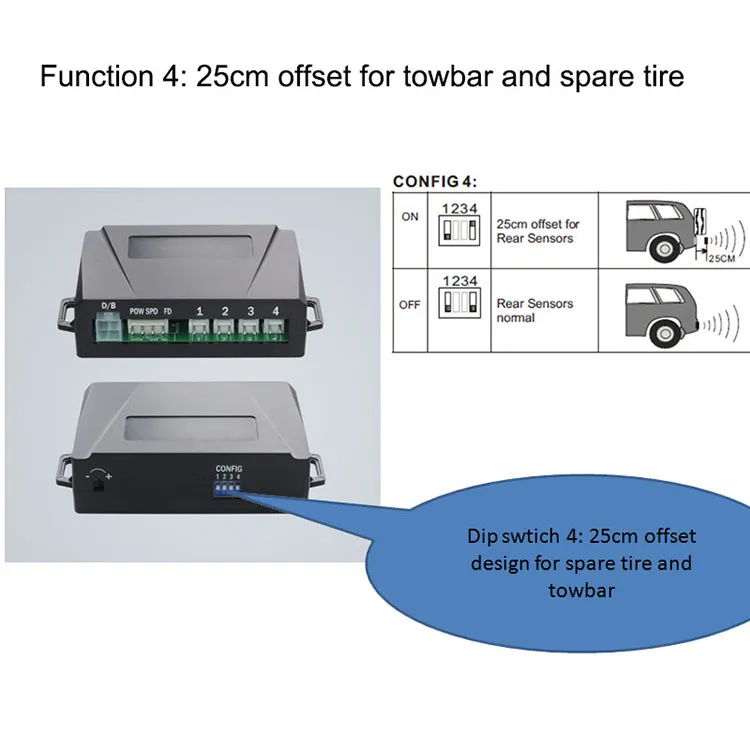

4) CONFIG4 remembers 25cm from the rear bumper. No more annoying beeping for tow-bar and spare tire.
5) Buzzer working distance is from 0-80cm for front system and 0-1.5m for rear system. LED display shows relative light colors (red-yellow-green).

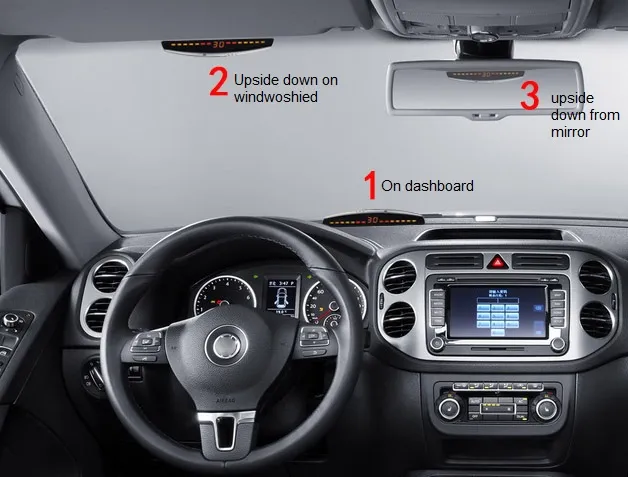

6) DSP01 LED display can be installed upside down on the windshield, at the back of the car, or on the dashboard. Change readout from Meter to Feet freely.
Neutral Package: White box
QTY: 12.0 SETS
N.W.: 8.5 KGS | G.W.: 9.0 KGS
Volume: 0.042 cubic meter
Delivery: 3-5 days after payment (Sample: 1 day).
