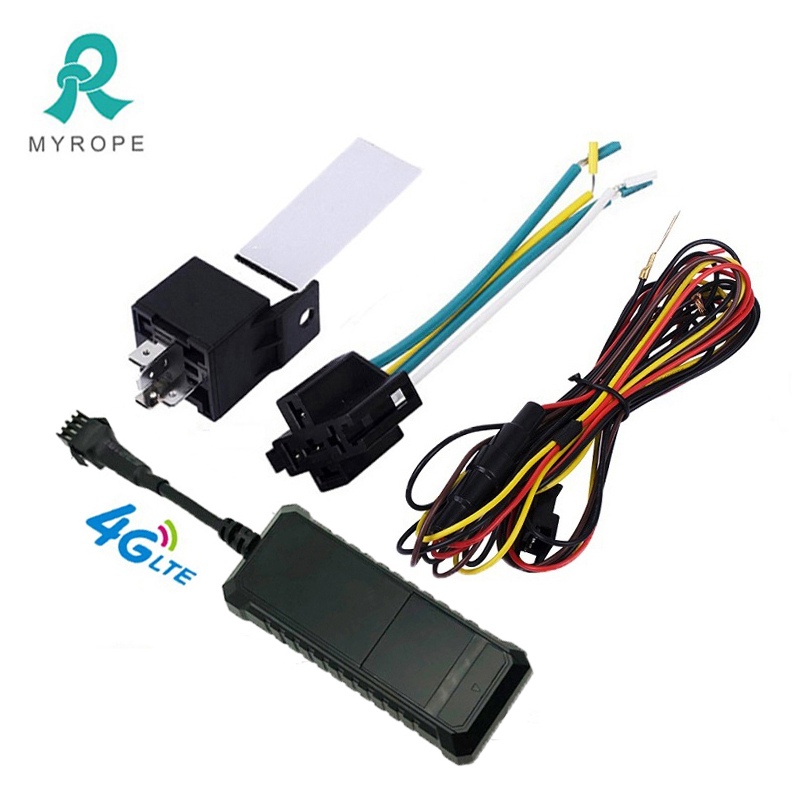

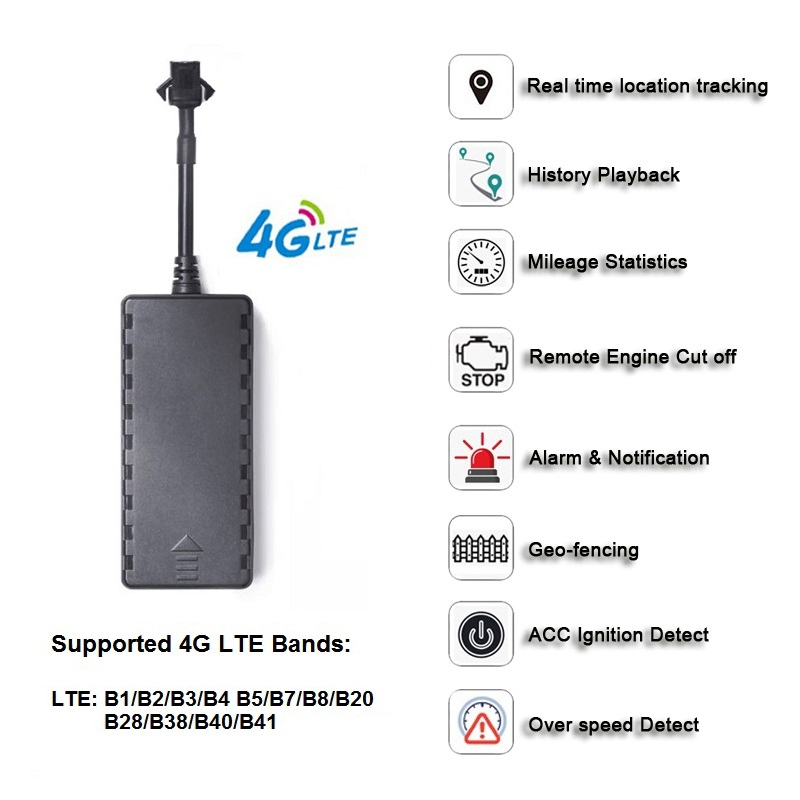

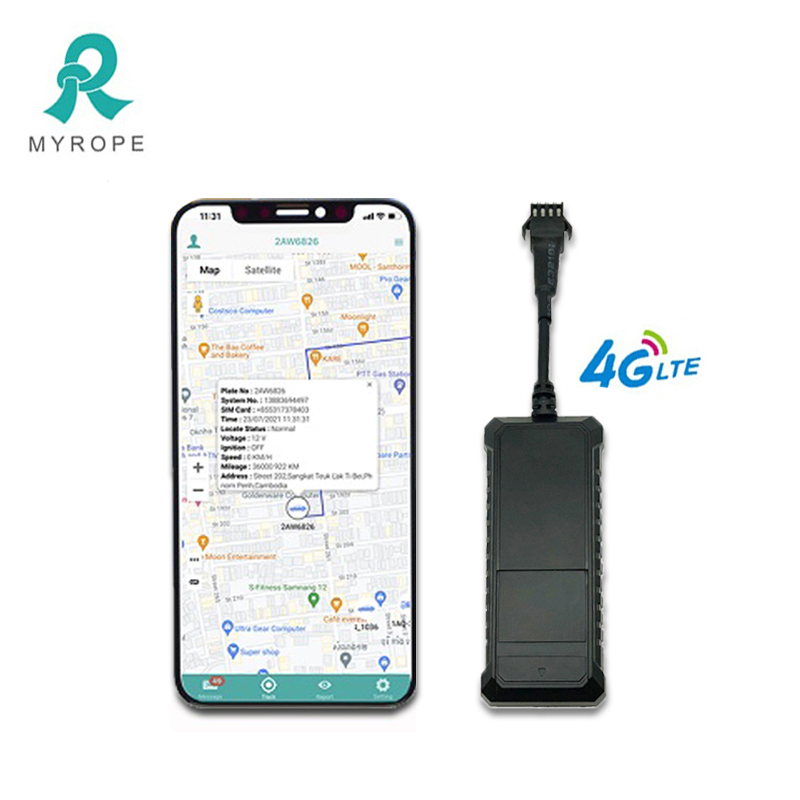

Mini GPS Tracker Location Monitor for Car Motorcycle Navigation Bus Accessories

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.:M558T
Warranty:1 Year
GPS Module:U-7020
Accuracy:5 Meters
GSM Frequency:Cat-M, Cat-Nb2
Mobile APP:Icruise S
Server:Cloud Cluster Server

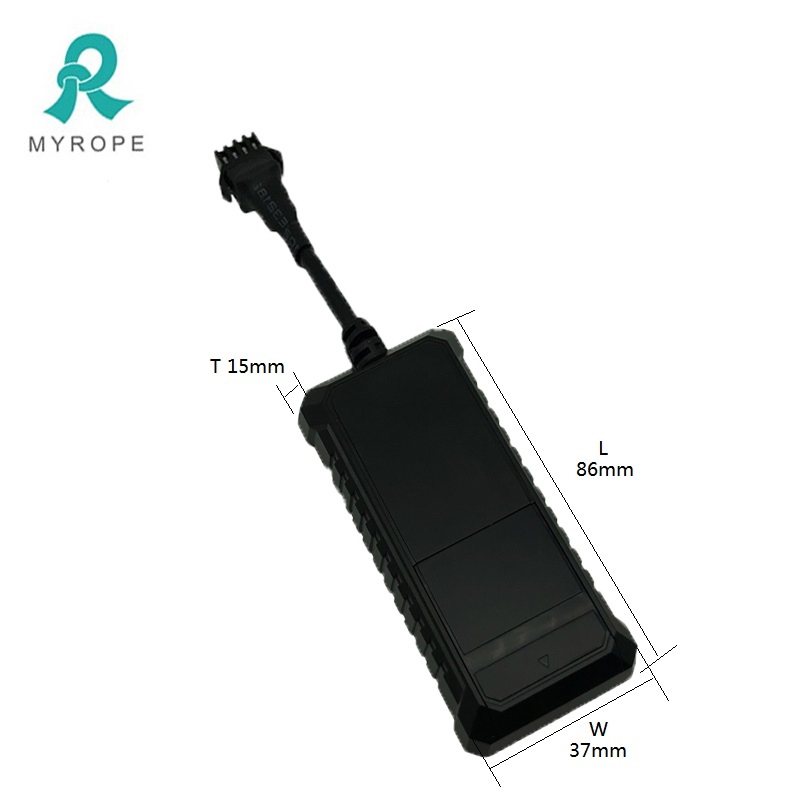

Dimensions:86mm*37mm*15mm
Product Description

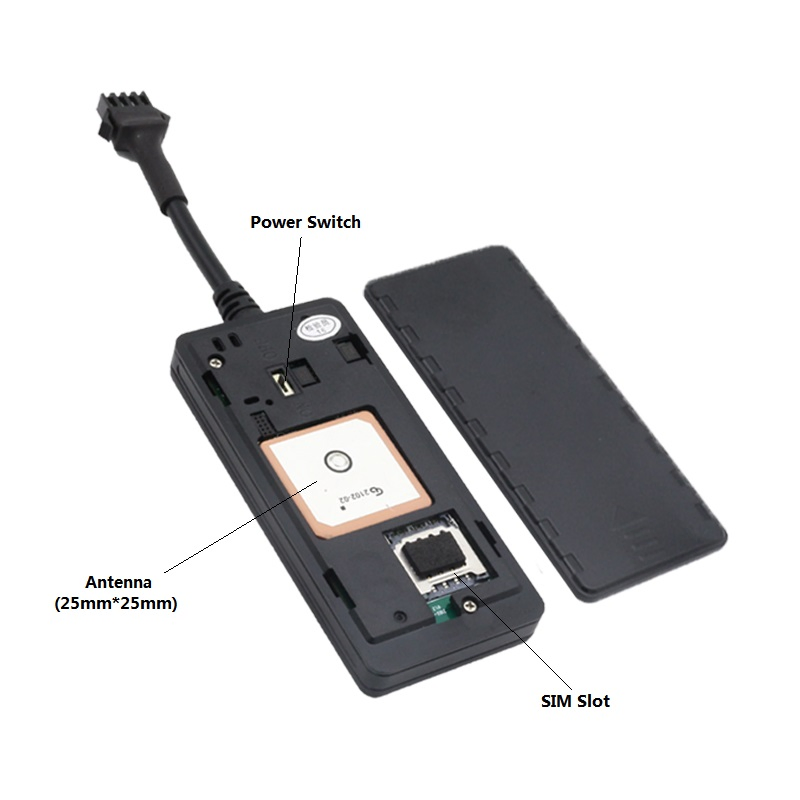

The M558T is a professional 4G GPS tracker for vehicles. It operates with a 4G SIM card and features built-in GPS and 4G modules for real-time tracking. The device is compact and easy to install, making it suitable for all types of vehicles. For countries with 4G network availability, the M558T is the premium option for reliable fleet management and security.

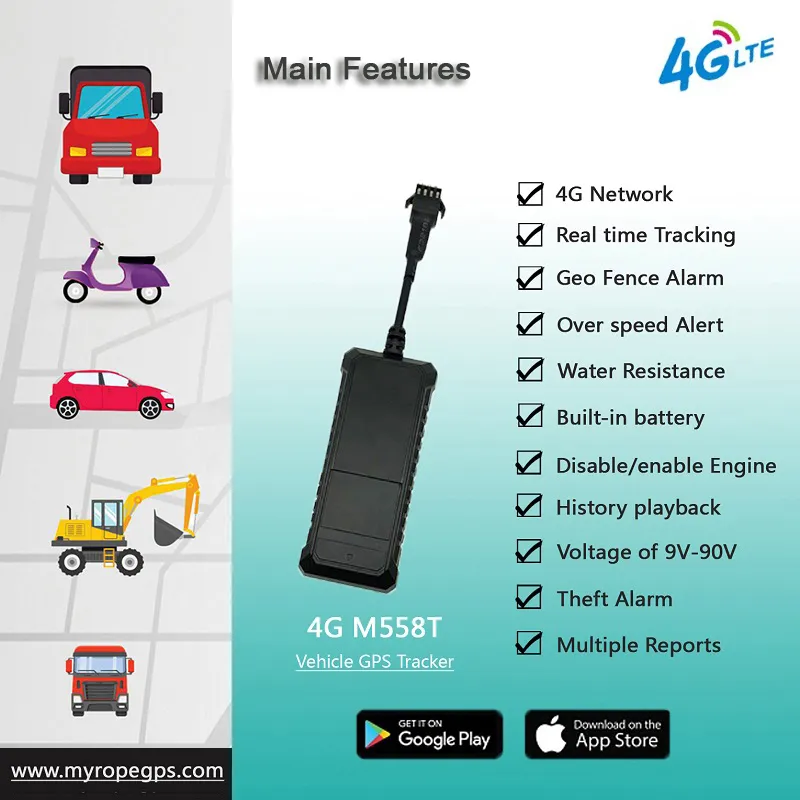

4G GPS Tracker Overview

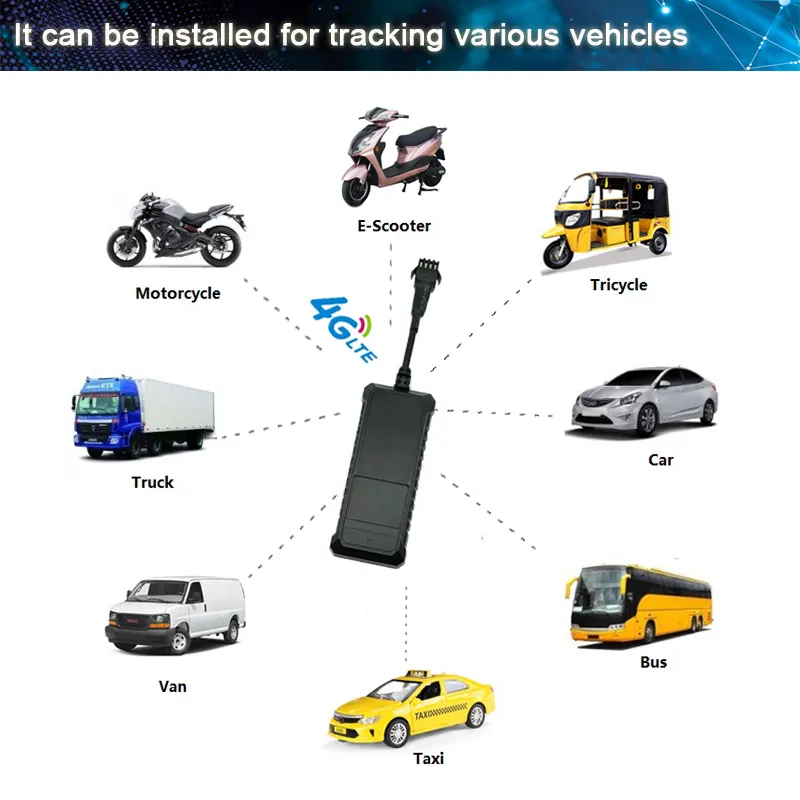

GPS Tracking Device
Core Functions
Support LTE/GSM connectivity
Wide voltage input range: 9-90VDC
Continuous GPS real-time positioning
ACC ignition detection
Remote engine cut-off capability
Location access via SMS, Web Platform, and Mobile APP
Built-in G-sensor for anti-theft alerts
Configurable alarm alerts for three phone numbers
Power disconnection alarm with backup battery
GEO-Fence, over-speed, and driving behavior alarms (acceleration/braking/cornering)

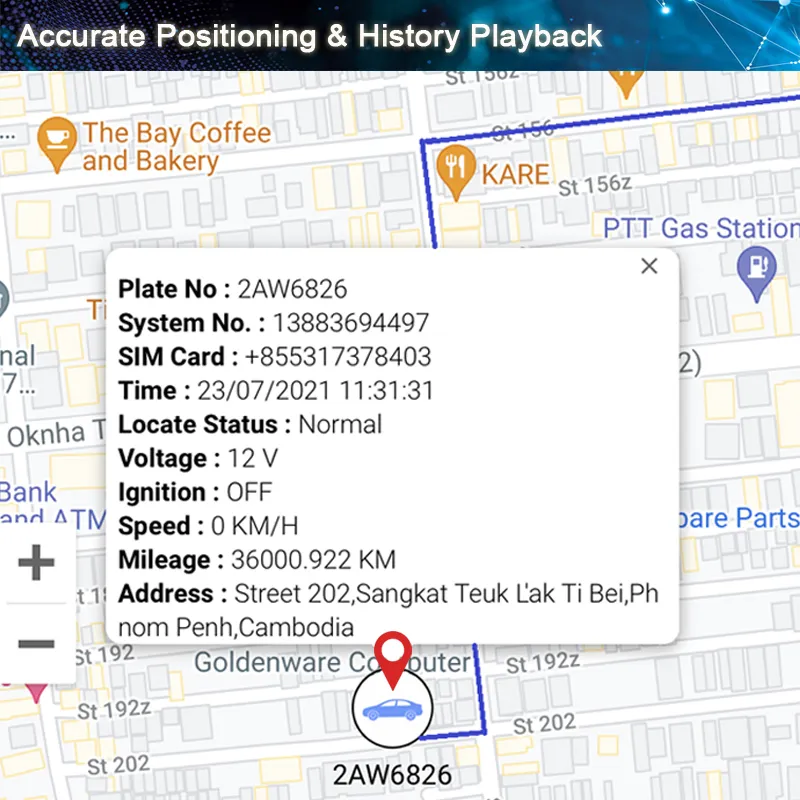

Function 1
Function 2

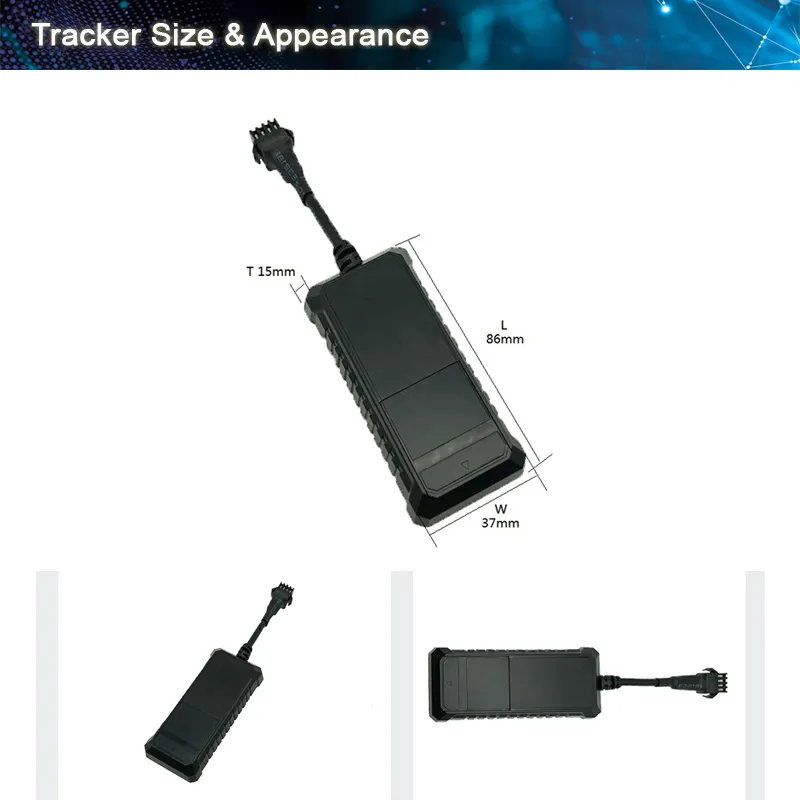

Function 3

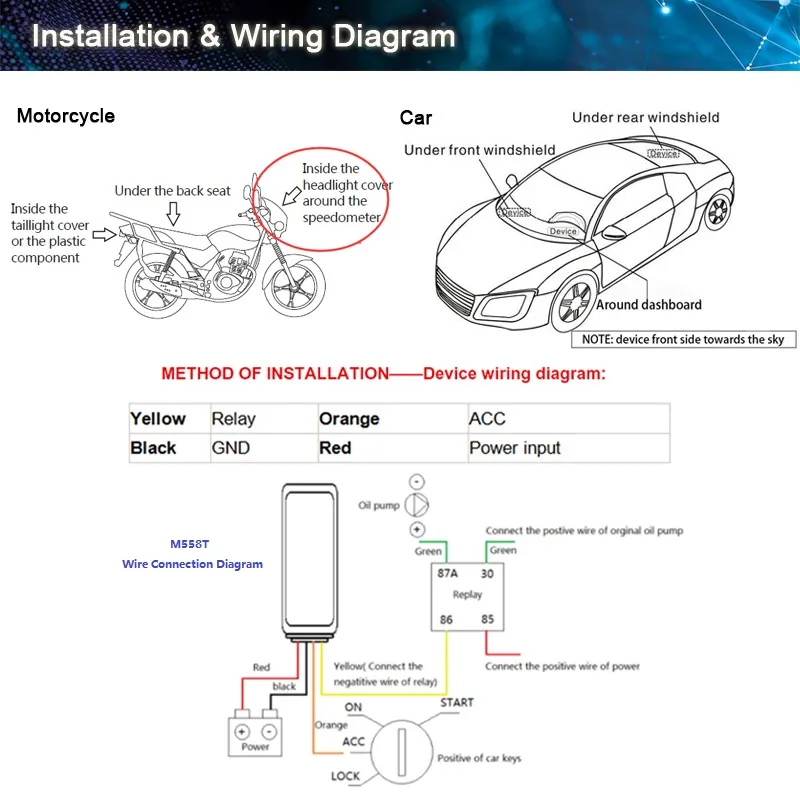

Function 4
Technical Parameters
Items Parameters
Work Voltage7VDC - 90VDC
Work Current30mA - 55mA
LTE-FDD FrequencyB1/B3/B5/B8
LTE-TDD FrequencyB34/B38/B39/B40/B41
GSM Frequency900/1800MHz
Position Accuracy2 Meters
Operating Temperature-20ºC to 70ºC
Internal Battery50mAh / 4.2V
Weight40g
Web Platform & APP

Our tracking ecosystem is powered by a robust cloud cluster server architecture, ensuring high availability and performance:

    Unlimited device hosting capacity
    High reliability with redundant backup servers
    Ultra-fast platform response times
    Support for customized reports and specific business functions

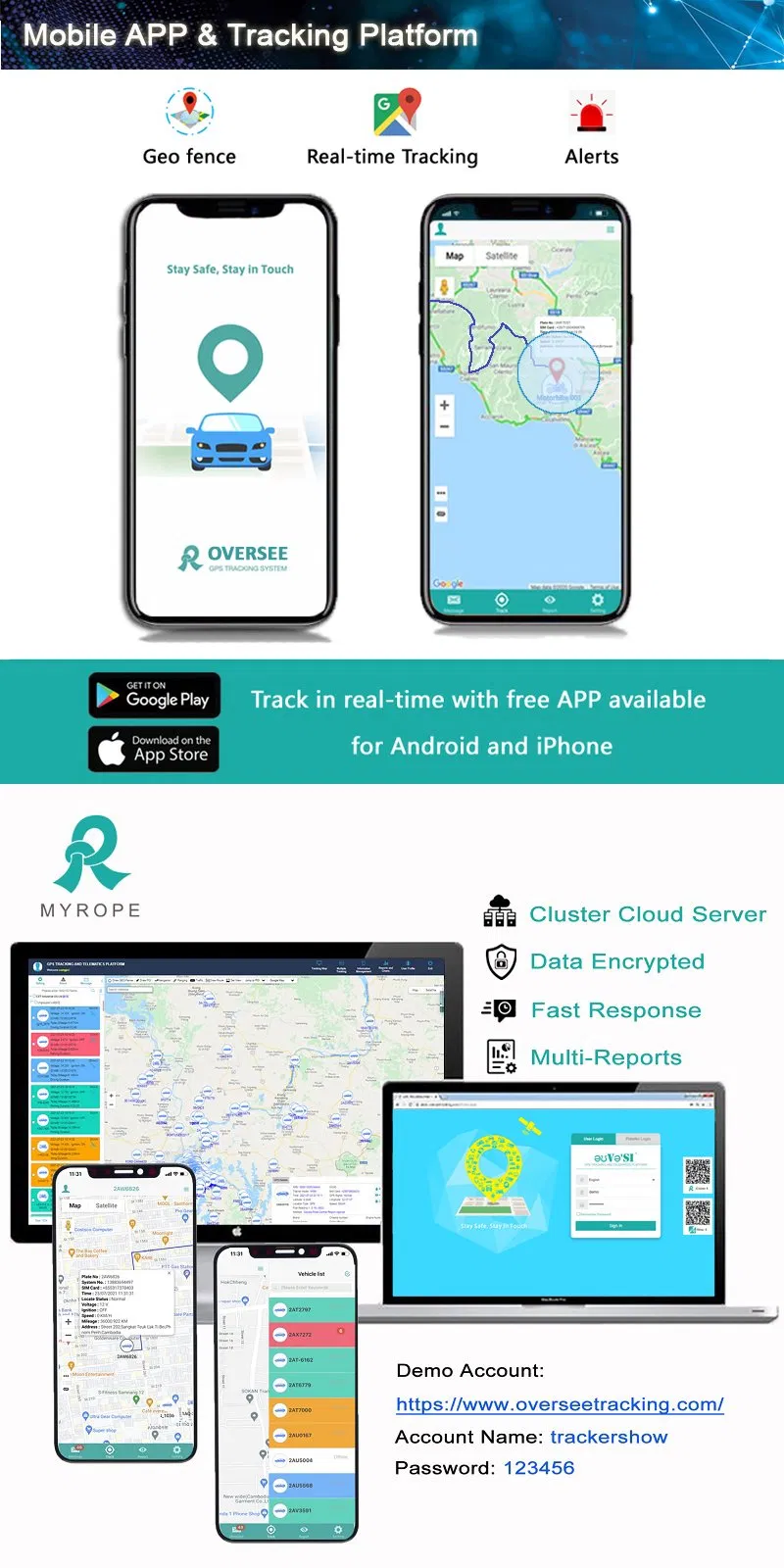

Mobile App Interface
Manufacturing & Quality Control

We are a direct manufacturer with over 10 years of specialized experience in the GPS tracking industry. Our production facility integrates molding, SMT, and complete assembly lines.

QC Process

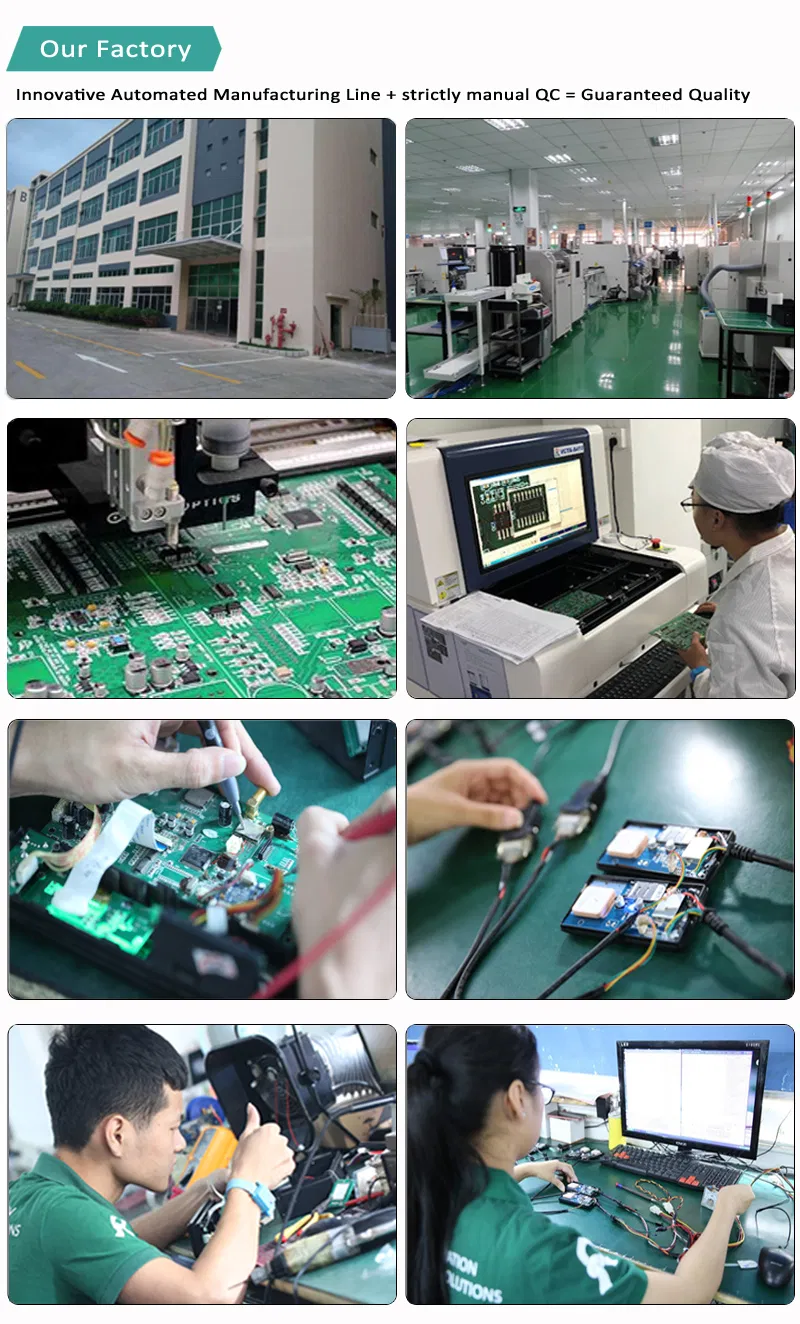

Factory SMT Line
Production Base
Quality Assurance
Certificates
Frequently Asked Questions
Q: Are you a direct manufacturer? A: Yes, we have been a dedicated manufacturer of GPS tracking solutions for more than 10 years.
Q: Do you provide tracking software and mobile applications? A: Yes, we provide both a web-based platform and mobile apps for Android and iOS, hosted on secure cluster cloud servers.
Q: What is the warranty period for the M558T? A: We provide a comprehensive one-year warranty for all our tracking products.
Q: Which certificates do your products hold? A: Our factory is ISO9001 certified, and our products have passed CE, ROHS, and FCC certifications.
Q: What is the minimum order quantity (MOQ)? A: We support orders starting from as little as 1 unit.
Q: What payment methods do you accept? A: We accept T/T Bank Transfers, PayPal, Western Union, and Credit Card payments.
