Whc Metal Roof Home Solar Power System Solar Energy Panel Mounting Aluminum Clamps

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

Basic Product Specifications

Model NO.

WHC15KW-Li-20KWH

Nominal Voltage

AC220V

Discharge Rate

High Discharge Rate

Shape

Square Battery

Electrolyte

Li-ion

Installation

Packaged

Product Name

Offgrid Solar Power System Home

Power

15kw

Solar Panel Type

Half Cell Solar Panel

Battery Type

LiFePO4 Lithium Battery

Inverter

Pure Sine Wave Inverter

Controller

MPPT Solar Charge Controller

System Type

Off-Grid Solar Power System

Production Capacity

10000pieces/Month

Product Description

Powerwall Solar LiFePO4 Lithium Batteries with Battery Storage System

Model: WHC15KW-Li-20KWH | Type: Offgrid Solar Power System Home

This off-grid solar system is a cost-effective solution for continuous electricity. It is a complete setup featuring high-efficiency solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and professional accessories. This system is designed to provide reliable power while significantly reducing electricity expenses.

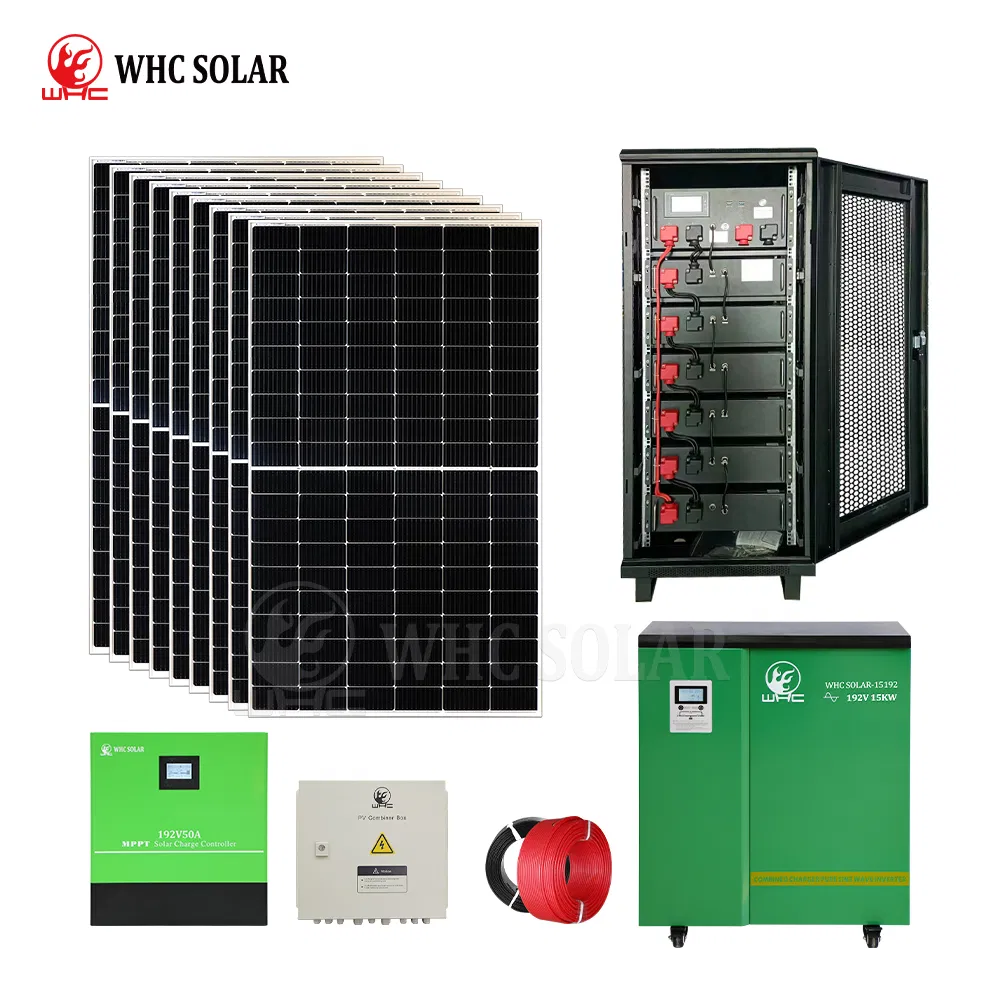

WHC15KW-Li-20KWH System Configuration
Item	Description	Quantity
Solar Lithium Battery	192V100AH LiFePO4 Lithium Battery	1 Piece
Solar Panel	450W Solar Mono Panel	18 Pieces
Solar Controller	192V 50A MPPT Controller	1 Piece
Solar Inverter	192V 15KW Solar Inveter	1 Piece

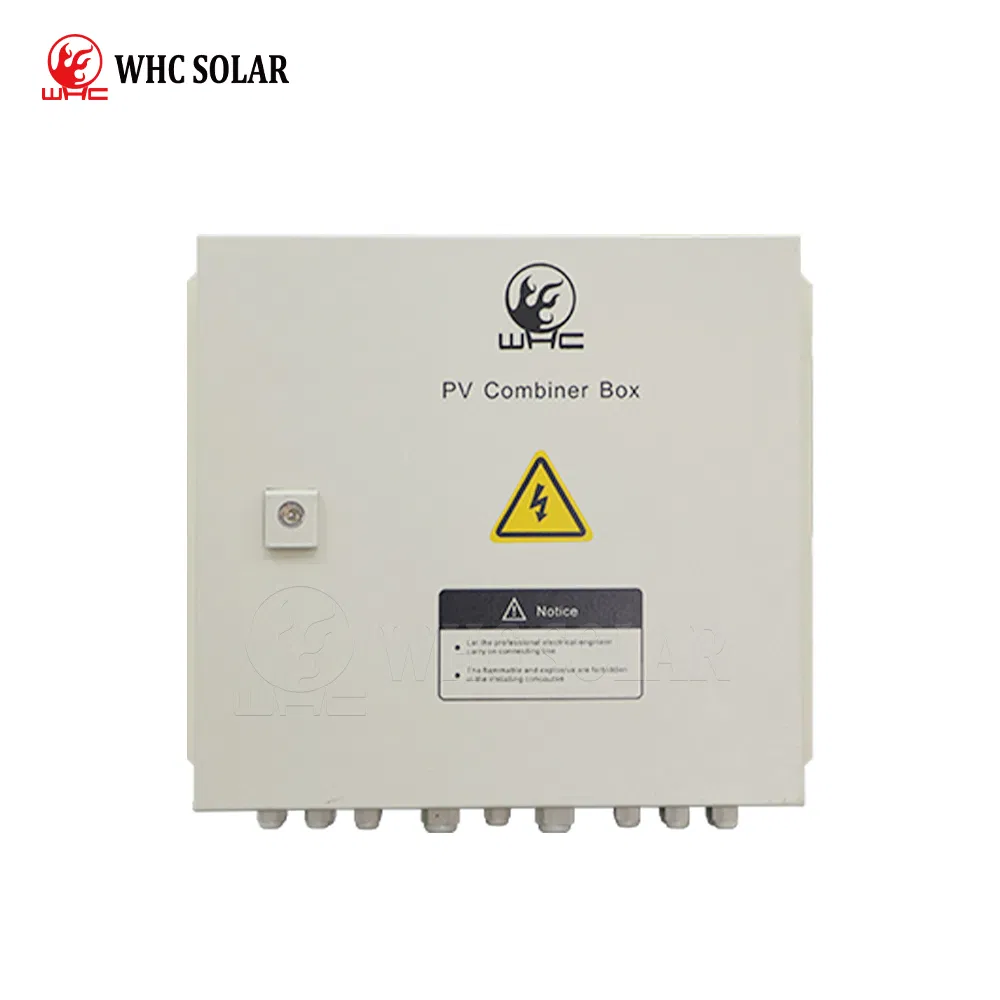

PV Combiner Box	Six Input + Two Output	1 Piece
PV Cable	Single-core 6mm2 PV cable 100m	2 Pieces
Mounting Support	Hot Galvanizing Ground Mounting Support	1 Set
Connector	MC4 Connector	30 Pieces

Component Technical Specifications

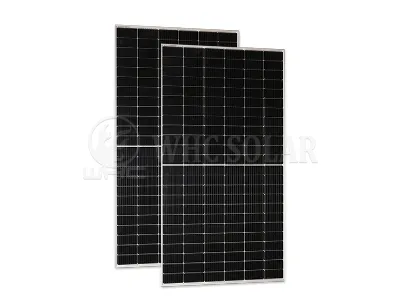

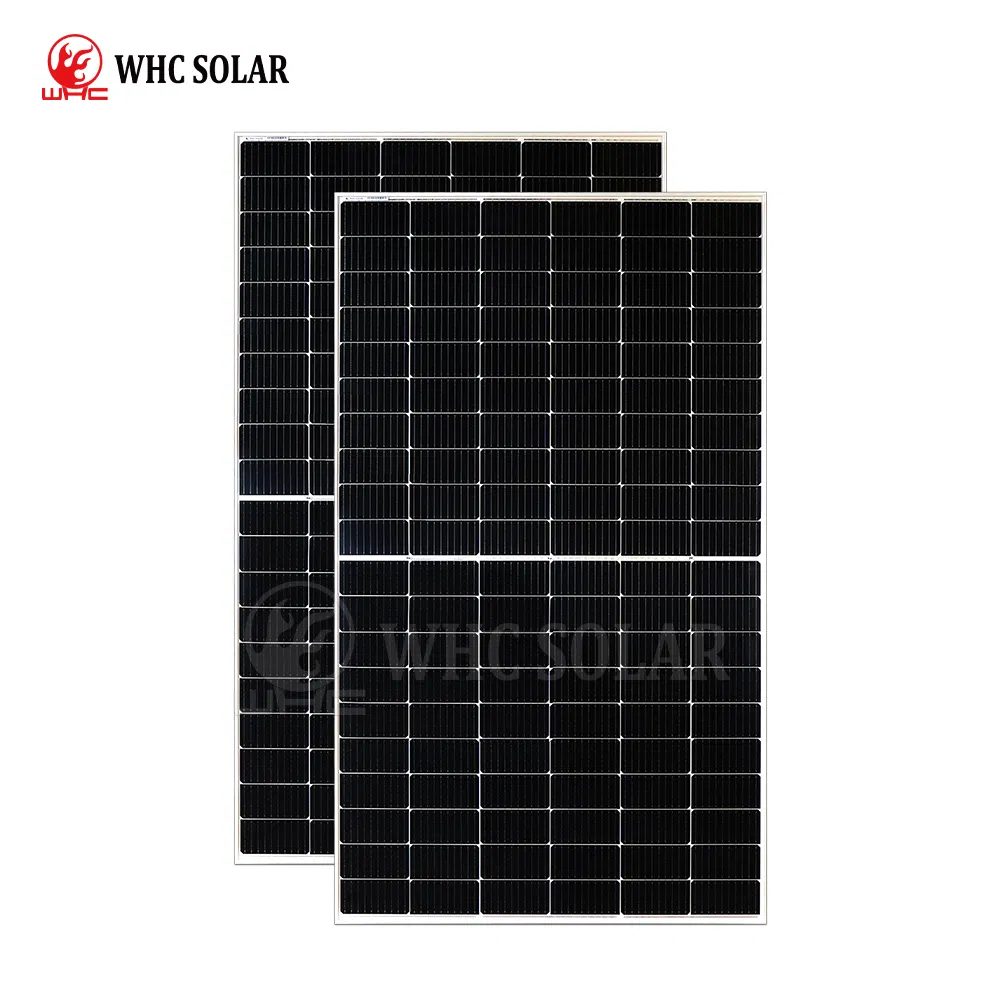

Mono Solar Panel

Model: WHC-450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Dimensions: 1909*1134*35mm

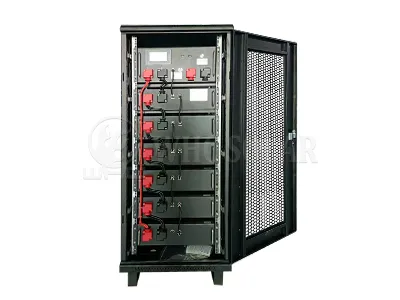

LiFePO4 Lithium Battery

Type: LiFePO4 Lithium Battery
Nominal Voltage: 204.8V
Capacity: 20480WH
Lifespan: 10 Years
BMS Max Discharging Current: 100A

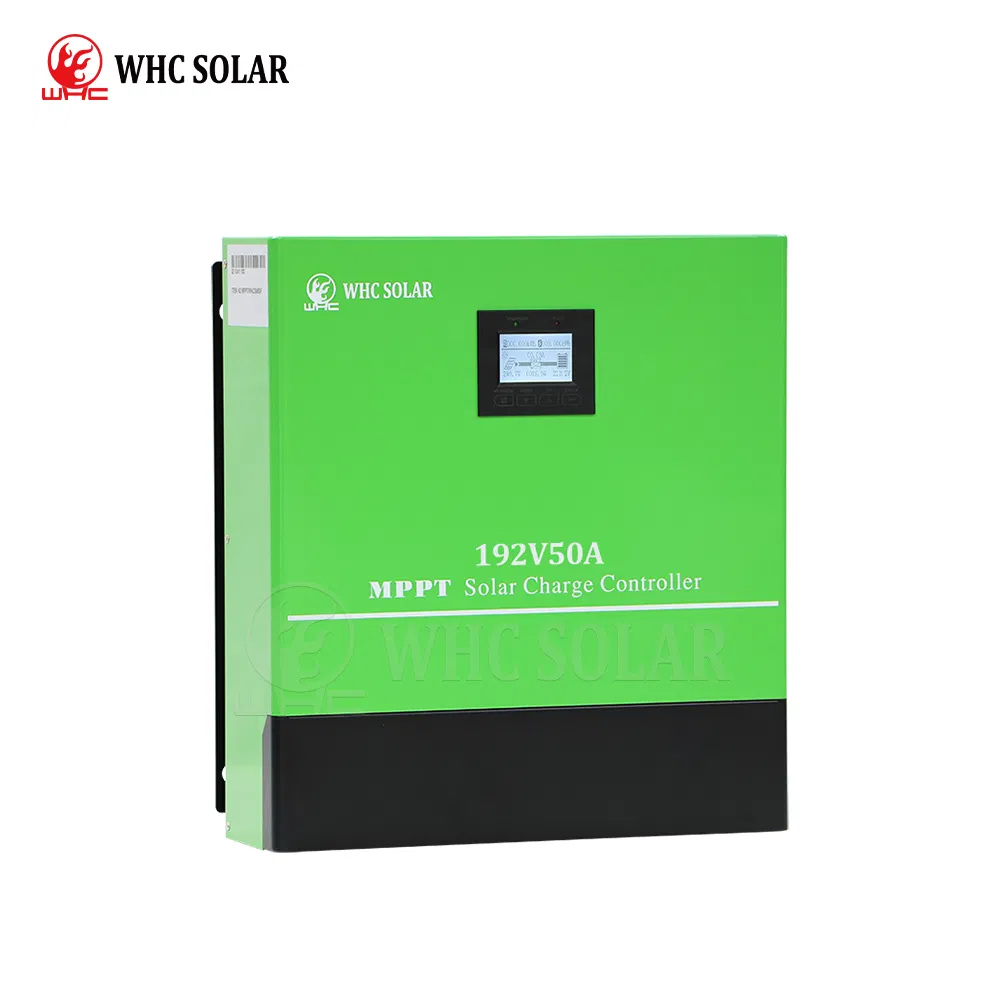

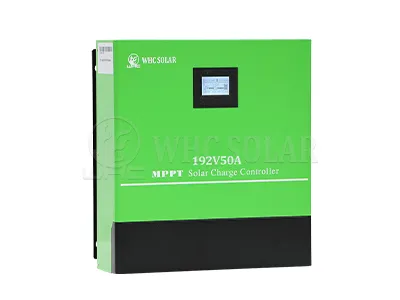

Solar Controller

Type: MPPT Heatsink Cooling
Max Charging Current: 50A
Max PV Open Circuit Voltage: 430V
DC Input Voltage: 192V
MPPT Efficiency: 99%

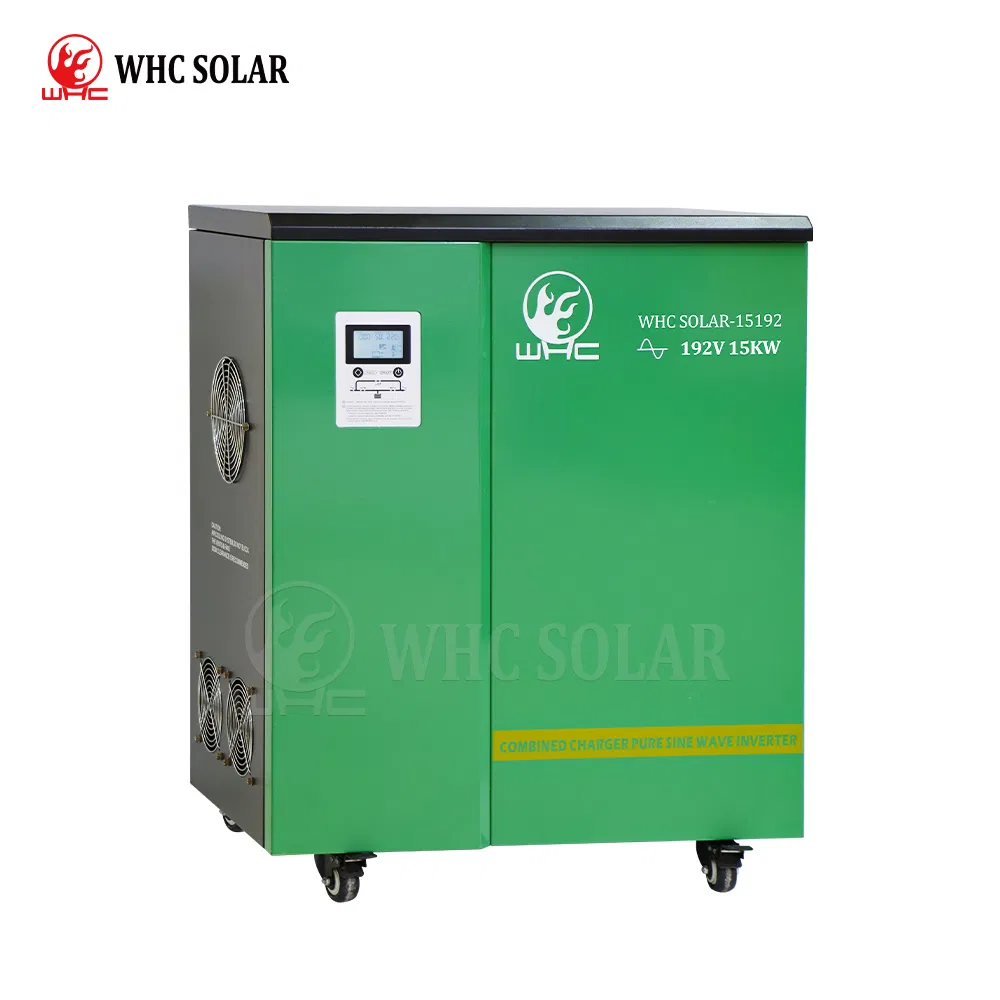

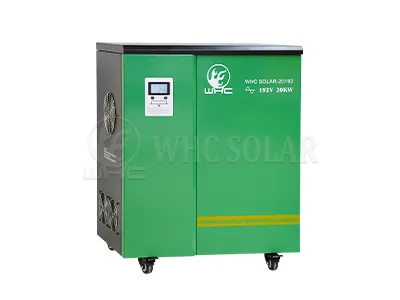

Solar Inverter

Type: Low Frequency IGBT Pure Sine Wave
Big Transformer Design
DC Input: 192V / AC Input: 220V 50/60HZ
Recharging Current: 10A
AC Output Voltage: 220V 50/60HZ

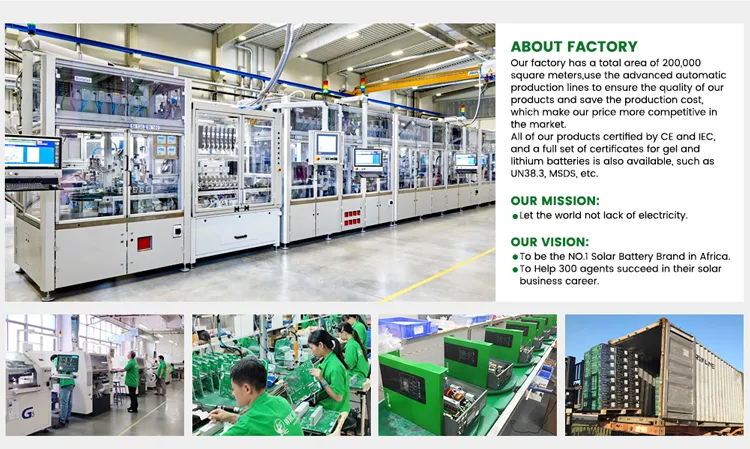

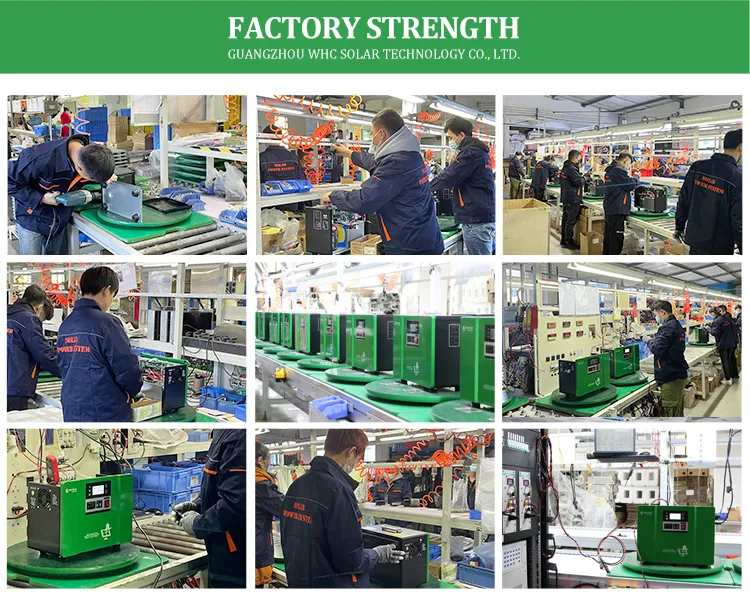

Production & Quality Assurance

Frequently Asked Questions

Are you a factory or trading company?

We are a professional manufacturing factory specializing in solar power systems.

Can you print my logo on the product?

Yes, OEM services are available. We can print your logo on the battery case or other components based on your design.

What kind of certifications do your products have?

Our products hold multiple national patents and have passed CE, RoHS, and ISO9001:2008 quality management system certifications.

What is the standard delivery time?

The delivery time is usually between 14-20 days, depending on the specific product type and order quantity.

Which markets do you primarily serve?

Our main markets include Africa, South America, the Middle East, and Western regions.

What payment methods do you accept?

We accept various payment methods including T/T, Western Union, and Money Gram for your convenience.
