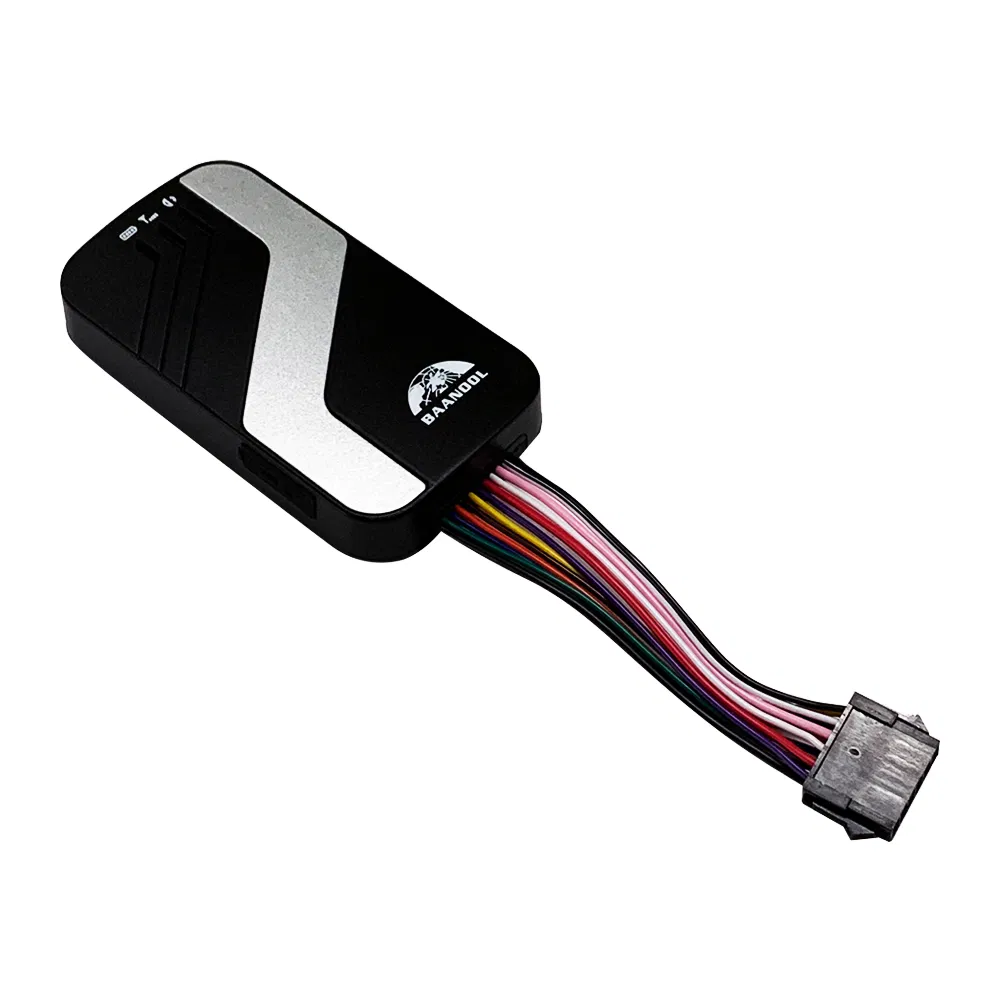

GPS Tracking Device Tracker & Car Accessories Auto Electronics Trackers Mini Navigation Trakers 4G GPS403

Customization:	Available
Screen Size:	No Screen
Use:	Hand Held

Send Inquiry

Product Description

Basic Specifications

Model NO.

GPS403 / TK303

Certification

ISO/TS16949, CE, FCC, RoHS

Battery

Polymer Battery 3.7V 350mAh

Network

GSM/GPRS/LTE (4G)

Waterproof

Yes

APP Software

Android/iOS Supported

Map Support

Real Time Google Map

Chip

Sirf

Frequency

850/900/1800/1900MHz & 4G Bands

OEM/ODM

Support Customized Logo & Packing

Product Overview

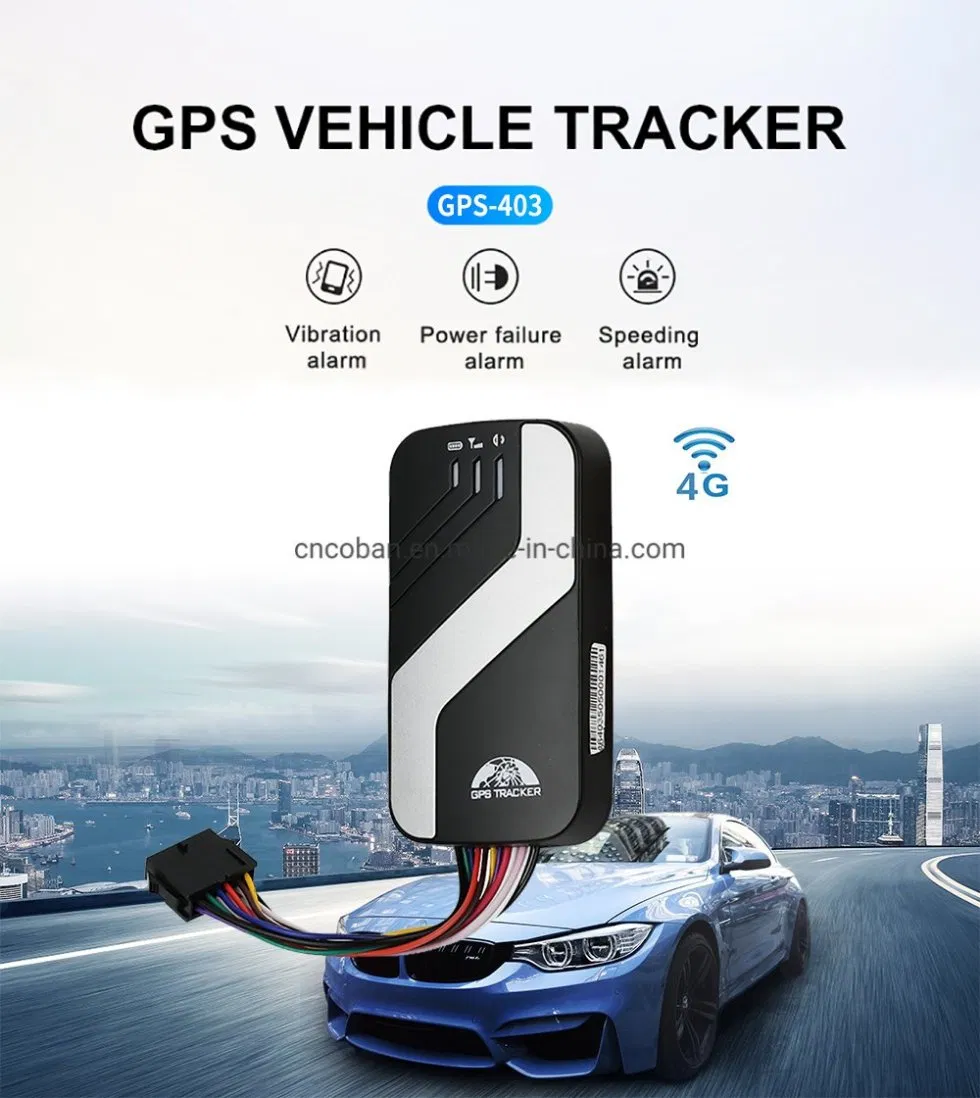

Vehicle Gps Real Time Tracking Device with ACC Detection. The GPS Tracker 403 4G is designed for cars to remotely cut off fuel, featuring SOS and microphone functions.

This 4G LTE version works with both 2G and 4G LTE networks. It features updated firmware supporting over-the-air updates and internal memory to save routes when the signal is lost.

Technical Specifications

Content	Specification
DIM	9.6×5.3×1.6cm
Weight	70g
Network	GSM/GPRS/LTE
Bands	4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40) 2G (1900/1800/900/850 MHz)
GPS Sensitivity	-159dBm
GPS Accuracy	5m
GPS Start Time	Cold: 45s \| Warm: 35s \| Hot: 1s
Power Supply	12V - 24V
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +65°C

Key Features & Functions

Single Locating & Auto Track

Absolute Street Address via SMS

Location Based Service (LBS)

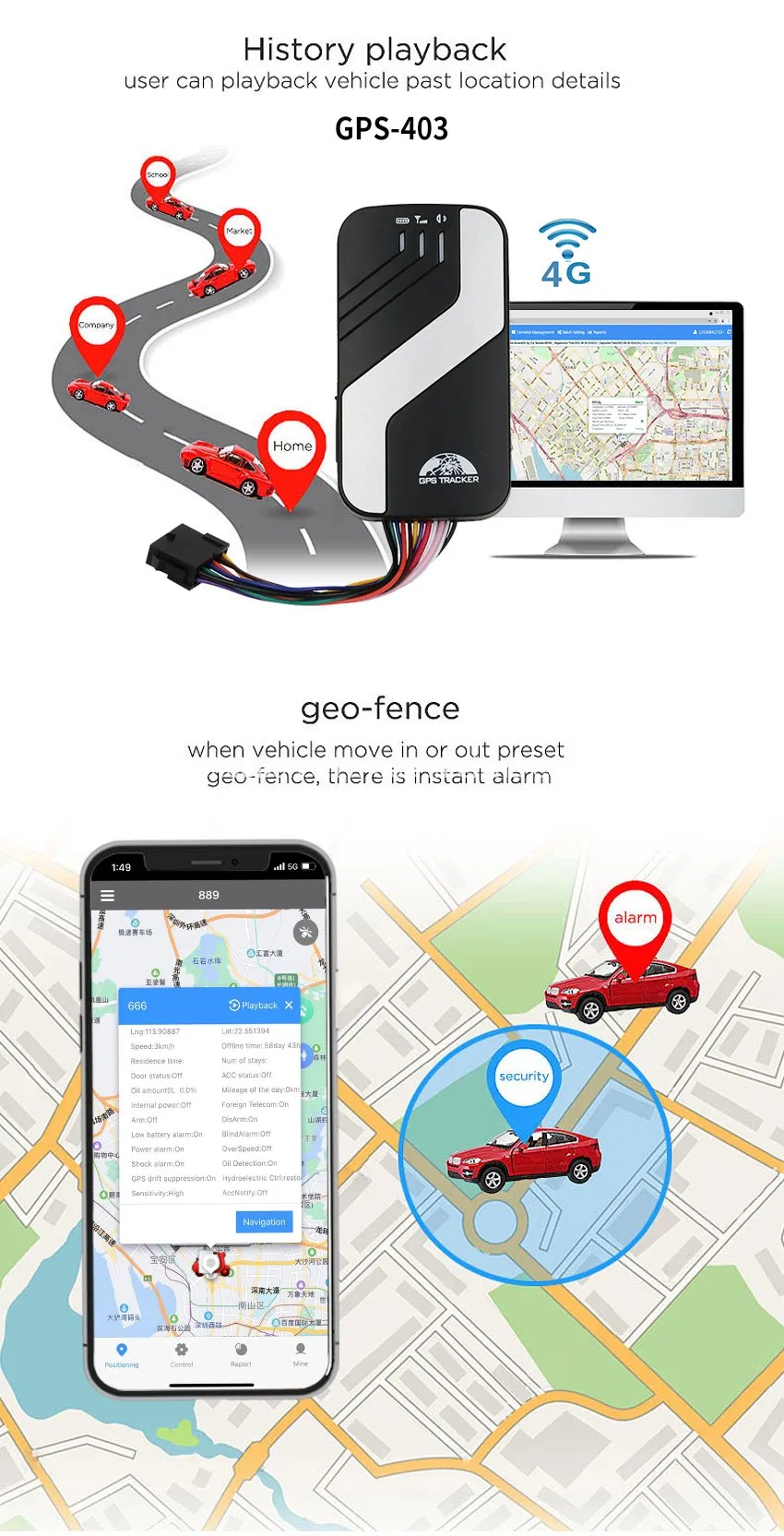

Data Logging & Load

Low Battery & Power Off Alarm

SOS Emergency Alert

Geo-fence & Multi-area Management

Movement & Over-speed Alarm

ACC Working Alarm

Shock Sensor Alarm

Deep Sleep Mode by Shock

Cut off Oil and Power System

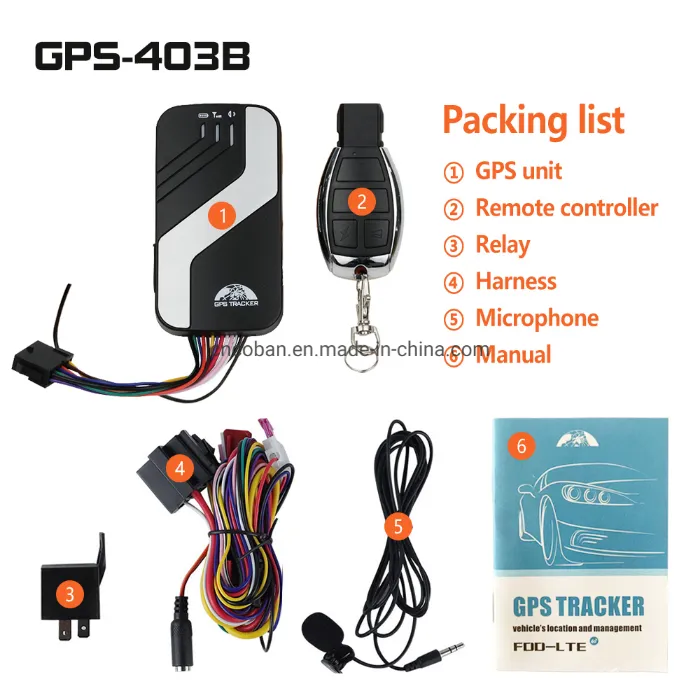

Packaging & Accessories

The standard package includes high-quality components for full installation:

• GPS Main Unit
• 12PIN Harness
• Microphone
• Relay for Fuel Cut-off
• User Manual

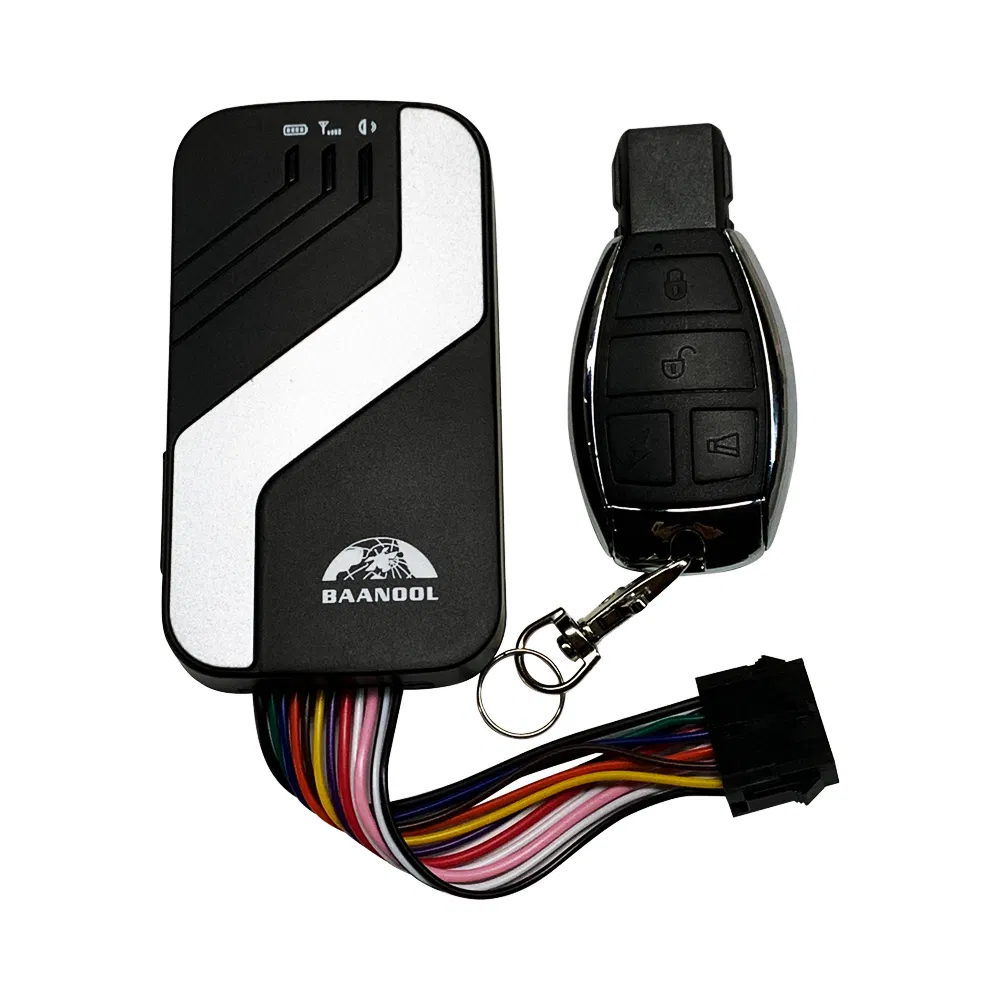

• Remote Controller (Model 403B only)

Frequently Asked Questions

Does this GPS tracker support 4G networks?

Yes, the GPS403 4G supports a wide range of 4G LTE bands (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40) and is also backward compatible with 2G GSM networks.

How accurate is the location tracking?

The device offers high precision with a GPS accuracy of approximately 5 meters.

Can I remotely stop my vehicle if it is stolen?

Absolutely. The device includes a "Cut off the Oil and Power System" function which allows you to stop the vehicle remotely via SMS or App commands.

What happens if the vehicle enters an area with no cellular signal?

The tracker features built-in data logging and internal memory that saves the routes and positions, which can be uploaded once the signal is restored.

Is there a mobile application available for tracking?

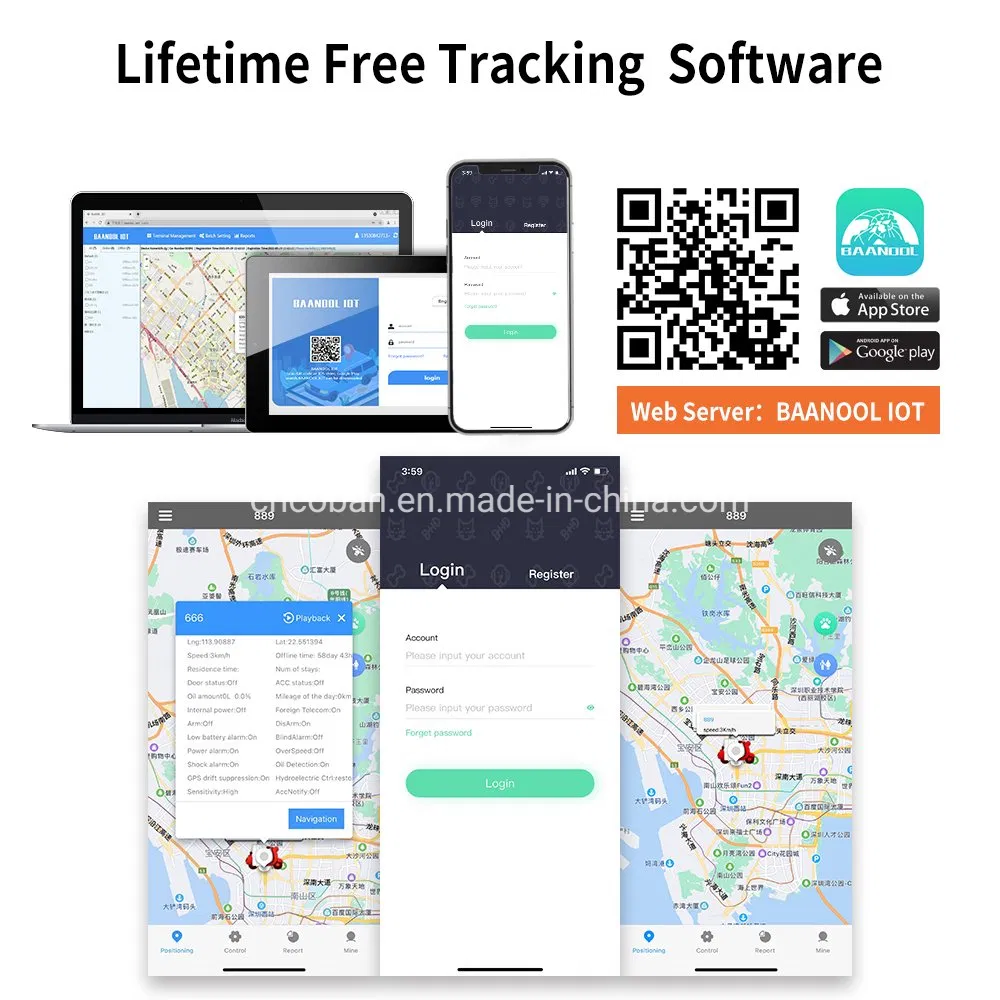

Yes, the system supports real-time tracking via Android and iOS applications, as well as web-based tracking on Google Maps.

Does the device have a backup battery?

Yes, it comes with a rechargeable 3.7V 350mAh Li-ion battery to ensure the device continues to function and send an alert even if the external car power is disconnected.
