Dual Spectrum Thermal Imaging Security AI Camera System
System Overview
The AI intelligent thermal imaging vehicle video surveillance system is configured with high accuracy and stability. It is designed for easy installation and operates flawlessly in challenging conditions such as total darkness, glare, smoke, dust, and heavy fog. It provides a comprehensive vision for engineering machinery, agricultural equipment, camping caravans, yachts, sanitation vehicles, and tunnel excavation equipment.
Key Product Features

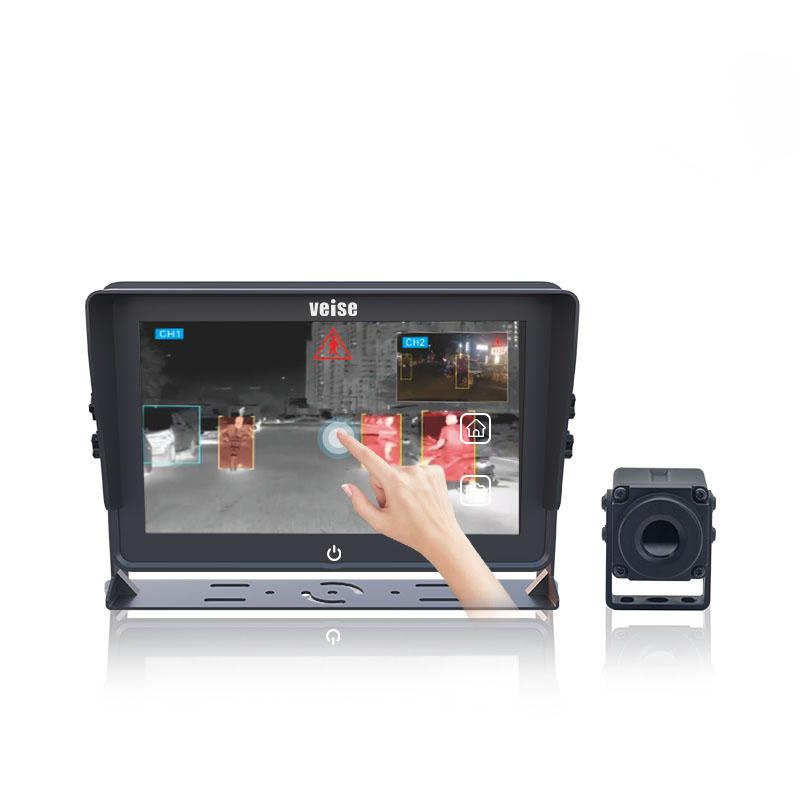

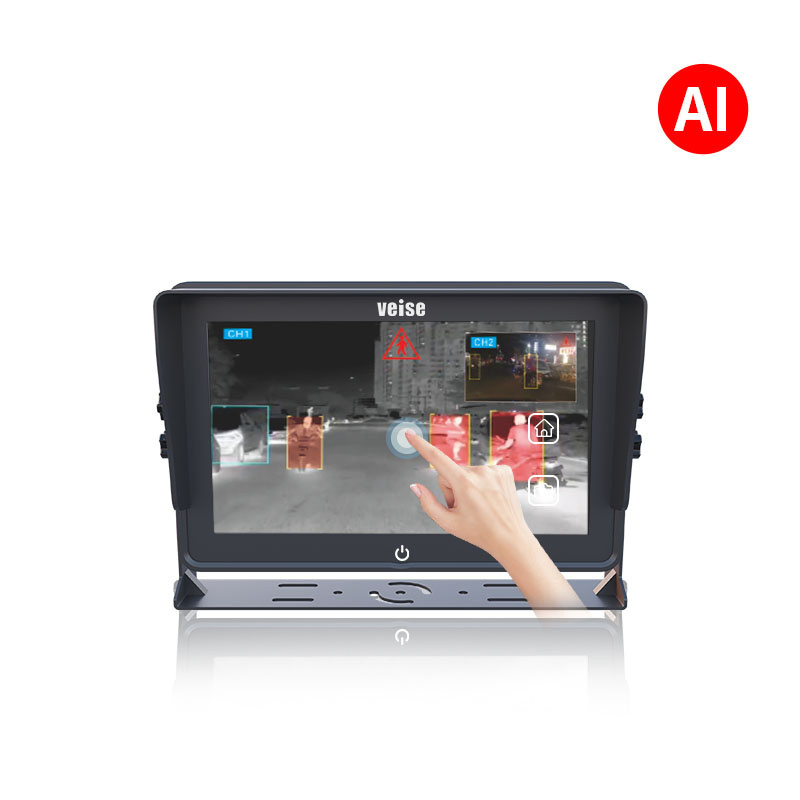

High-Definition DVR Touchscreen Monitor
- 7-inch IPS HD display supporting mixed input of four-channel 1080P/960P/720P/CVBS signals.
- High resolution (1024 x 600) with 600cd/m² brightness for clear visibility.
- Supports quad-view display and graphical OSD menu.
- Advanced touch function for flexible finger operation and user interaction.

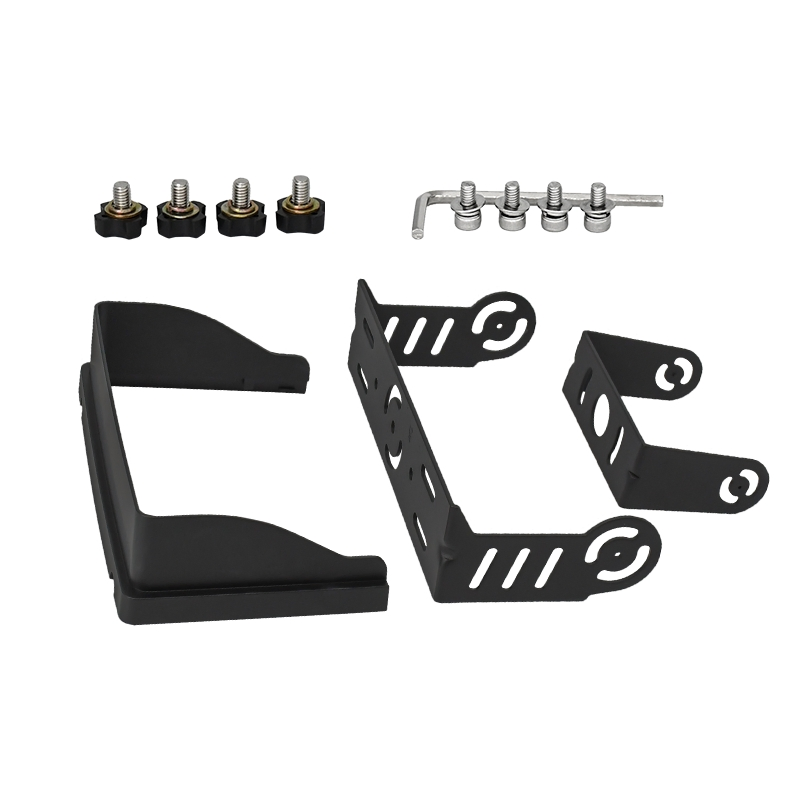

- Heat-resistant ABS+PC housing with a removable sunshade cap.
- Automotive-grade digital processor with load-dump pulse voltage protection.

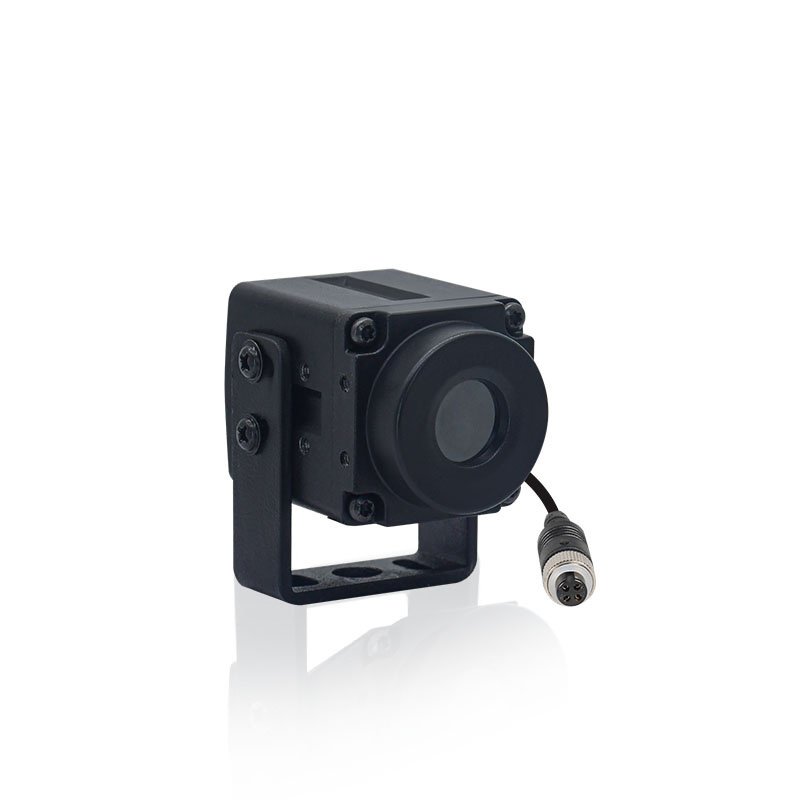

Vehicle-Mounted HD Thermal Imaging Camera
- Infrared Performance: 256*192 resolution with a 12μm high-performance vanadium oxide uncooled detector.
- Extended Vision: Clear infrared imaging up to 300 meters ahead, significantly enhancing night visibility.

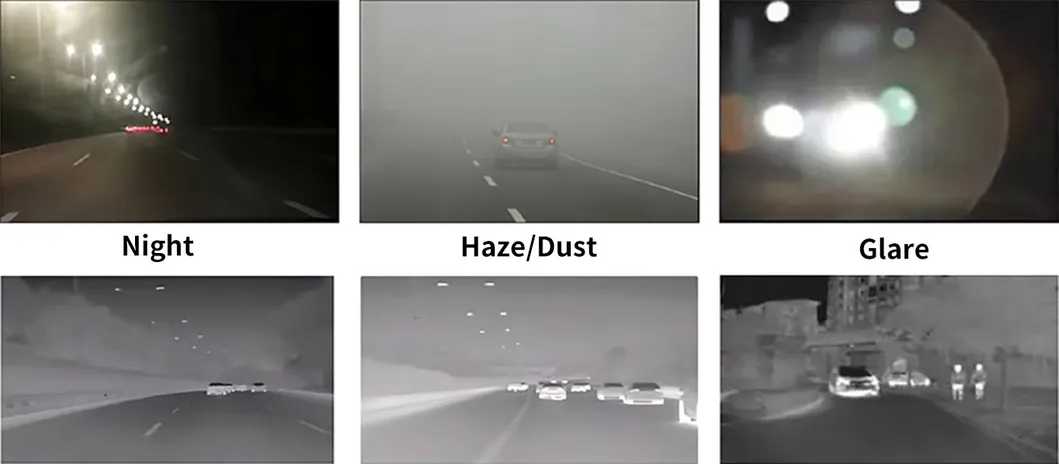

- Weather Resistant: Penetrates sandstorms, dense fog, and haze for 24/7 safety.
- Anti-Glare: Completely unaffected by high beams or sudden light changes.
- Automatic Window Defrost: Activates below 2°C to ensure clarity in freezing conditions.
Technical Parameters
| Feature |
Specification |
| Model | MHD-7154MD |
| Display | 7-Inch IPS Touchscreen (1024 x 600) |
| Brightness / Contrast | 600cd/M² / 800:1 |
| Voltage Range | DC 11-32V |
| Vibration Resistance | 5G (GB/T 2423.56-2018) |
| Thermal Sensor | Vanadium Oxide Uncooled Detector |
| Thermal Resolution | 256 * 192 |
| Frame Rate | 25 Fps |
| Operating Temperature | -30°C ~ 70°C |
| Detection Range | Vehicle < 320m / Human < 250m |
Application Scenarios
This system is ideal for specialized vehicles requiring high-level safety monitoring in low-visibility environments.
Frequently Asked Questions (FAQ)
Q1: How does the dual-spectrum technology benefit drivers?
A: It combines thermal imaging with traditional video, allowing drivers to see heat signatures (like pedestrians or animals) through total darkness, smoke, and fog where standard cameras are ineffective.
Q2: Can the system withstand heavy vehicle vibrations?
A: Yes, the system is built to automotive standards with a 5G vibration resistance rating, making it suitable for heavy construction and agricultural machinery.
Q3: What is the effective detection range of the thermal camera?
A: The camera can detect vehicles up to 320 meters away and human targets up to 250 meters away, providing ample response time for safety.
Q4: Does the monitor support multiple camera views?
A: Yes, the 7-inch IPS monitor supports four-channel mixed inputs and can display up to 4 images simultaneously in quad-view mode.
Q5: Is the camera equipped for winter conditions?
A: The camera includes an automatic window defrosting function that activates when temperatures drop below 2°C, ensuring a clear view in icy weather.
Q6: What voltage is required to power the system?
A: The system supports a wide operating voltage range of DC 11V to 32V, making it compatible with both light vehicles and heavy industrial equipment.
