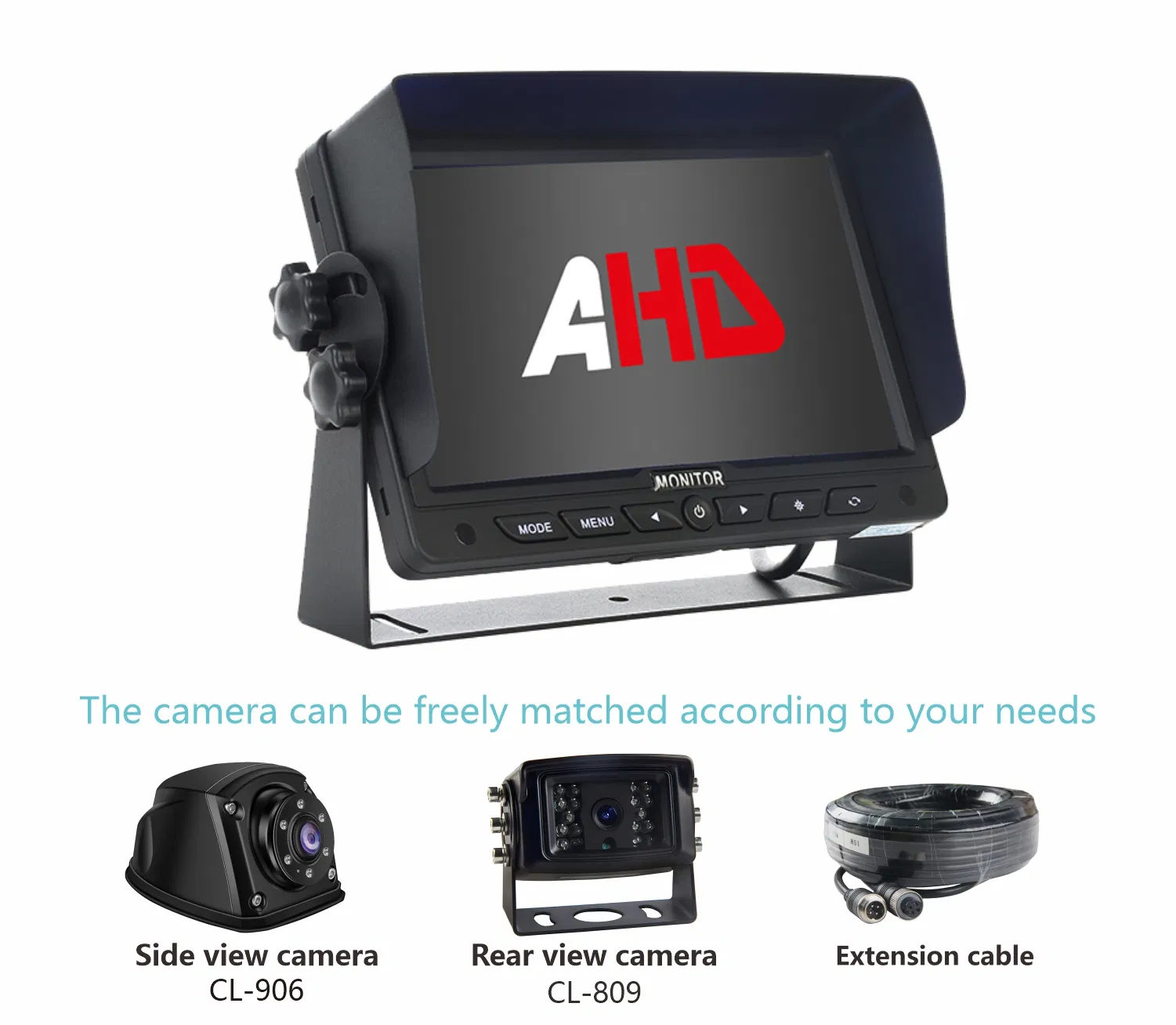

7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
1 / 5
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System
7-Inch Car Mounted Ahd Display Car Safety Monitoring System

7-Inch Car Mounted Ahd Display Car Safety Monitoring System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.CL-S756AHD
Screen Size7"
Waterproof GradeNo
CertificationRoHS, CE, ISO
Warranty12 Months
MaterialPlastic
Display Resolution1024xrgbx600
Operating VoltageDC9V-32V
Contrast500:1
Production Capacity5000PCS
Detailed Photos

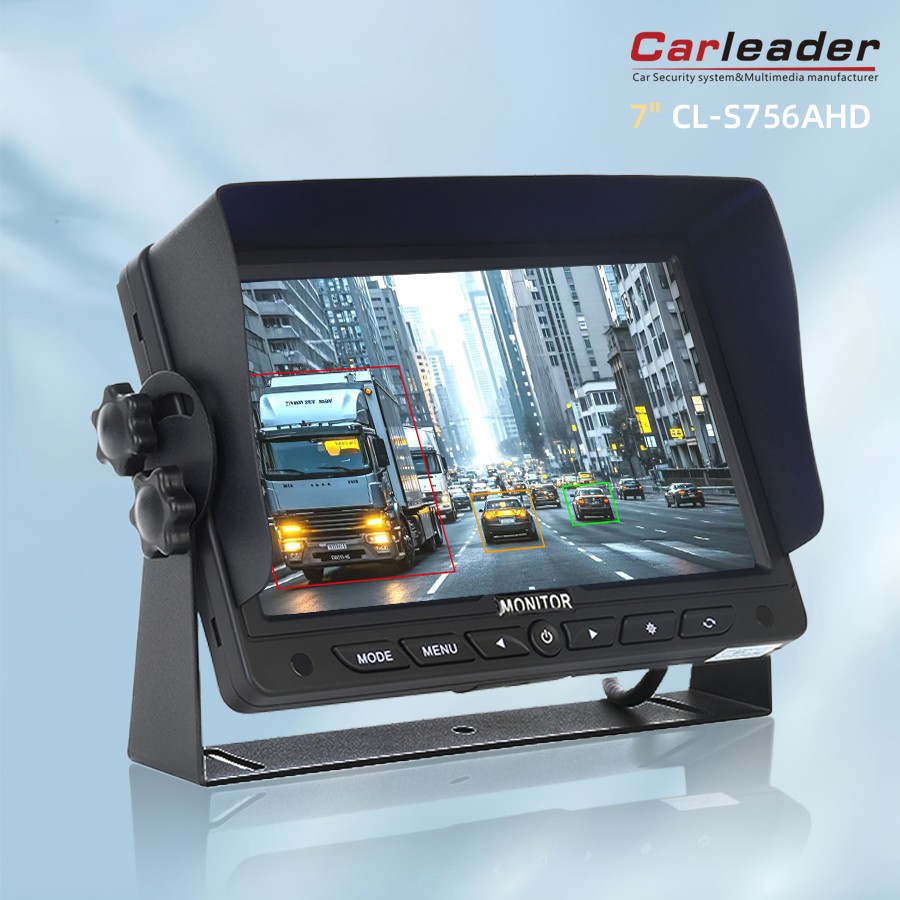

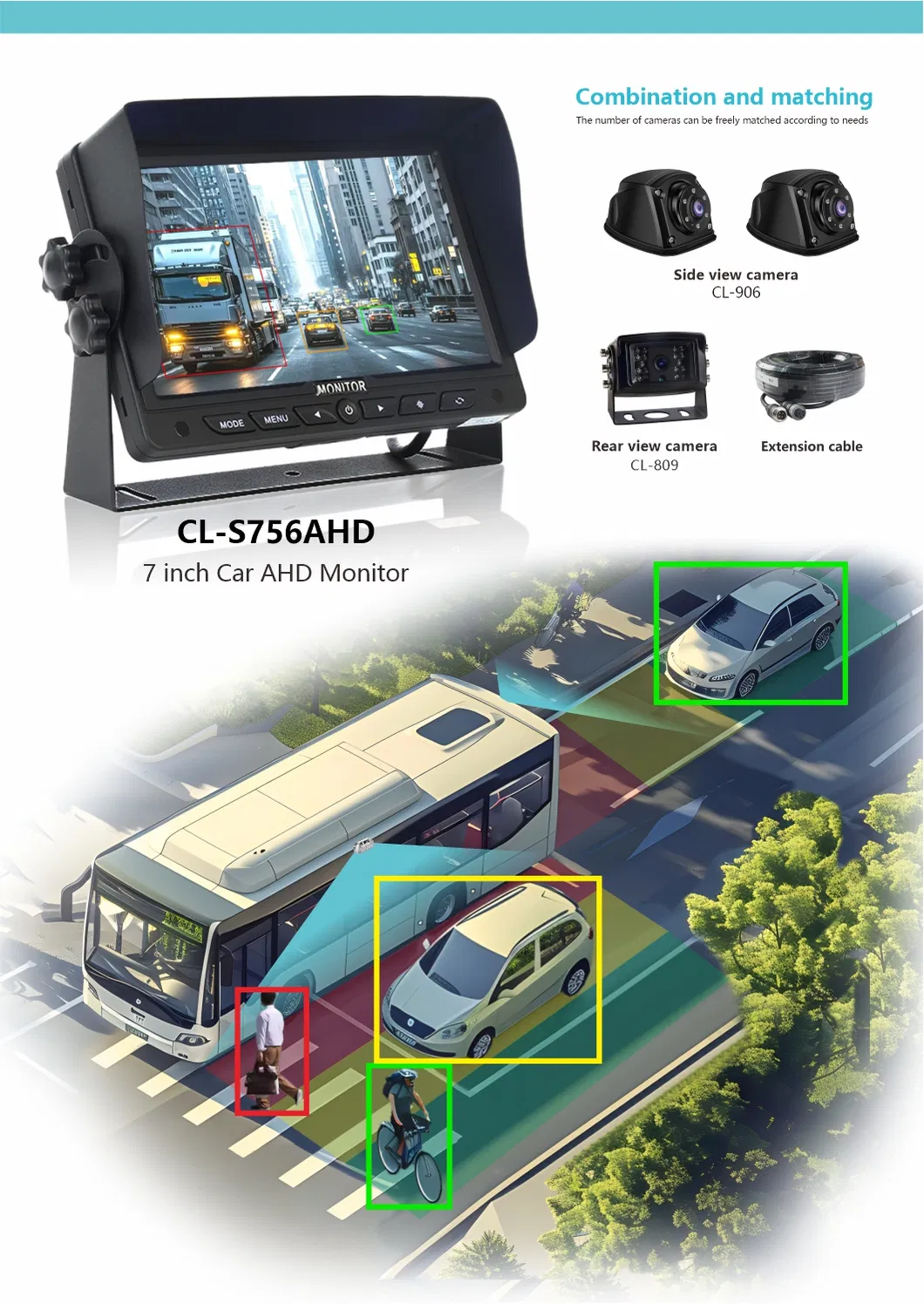

Detailed View 1

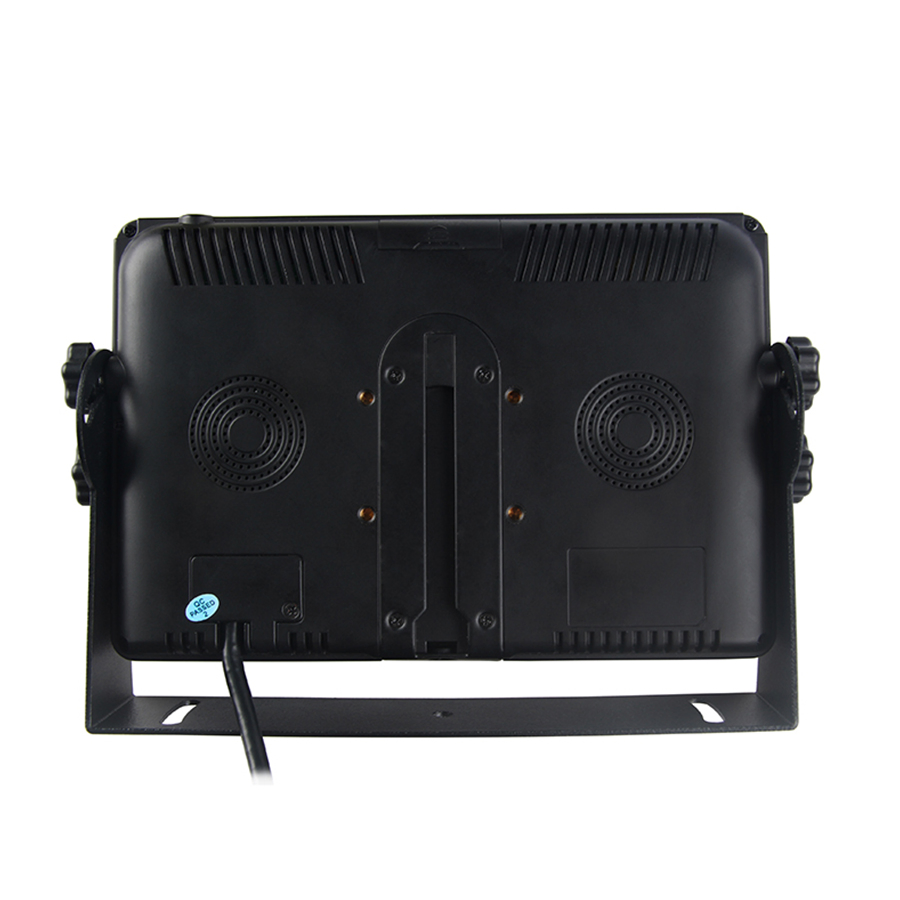

Detailed View 2
Key Features & Functions
★
HD Display: The 7-inch HD screen provides clear images, ensuring drivers can accurately observe the surroundings of the vehicle.
★

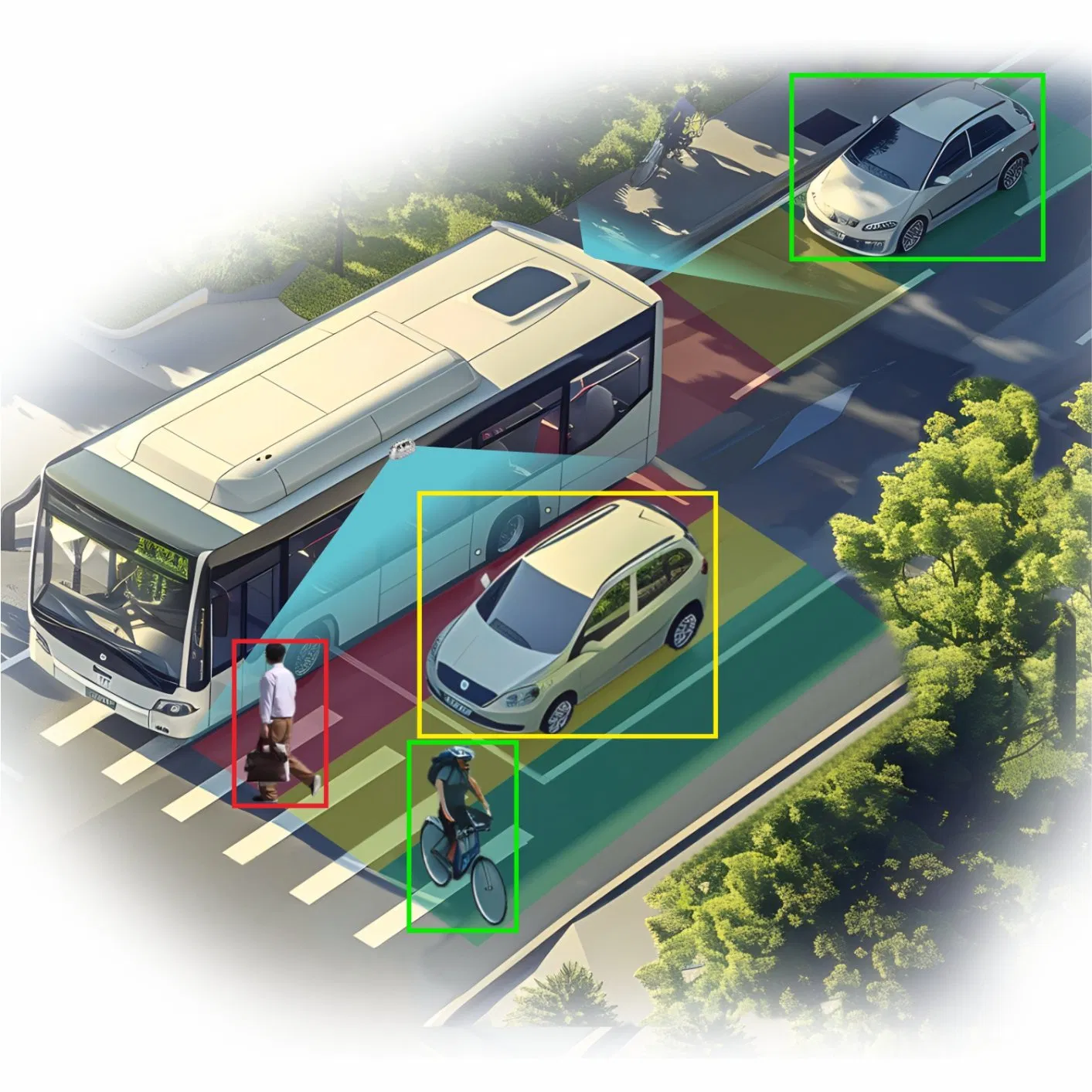

Real-Time Monitoring: Supports multiple cameras (front, rear, side) for real-time footage to eliminate blind spots.
★
Safety Alerts: Helps drivers quickly identify potential hazards, reducing accident risks.
★
Automatic Switching: Automatically switches to reversing view or lane-changing perspective when triggered.
★
Multi-Function Integration: Compatible with navigation systems and dash cameras for enhanced convenience.
Technical Parameters
7'' digital Innolux panel with 16:9 image
Resolution: 1024xRGBx600
All touch buttons with backlight
2 AHD video input (AHD1/AHD2) with 2 trigger wire
Auto dimming function optional (CDS)
Video input format: D1/720P/1080P HD25/30fps PAL/NTSC
Brightness: 450cd/m2 | Contrast: 500:1
Viewing angle: L/R:70°, UP:50°, DOWN:70°
Power supply: DC9V-32V
Dimension: 17.8x12x2.4cm (without shade)
Certifications

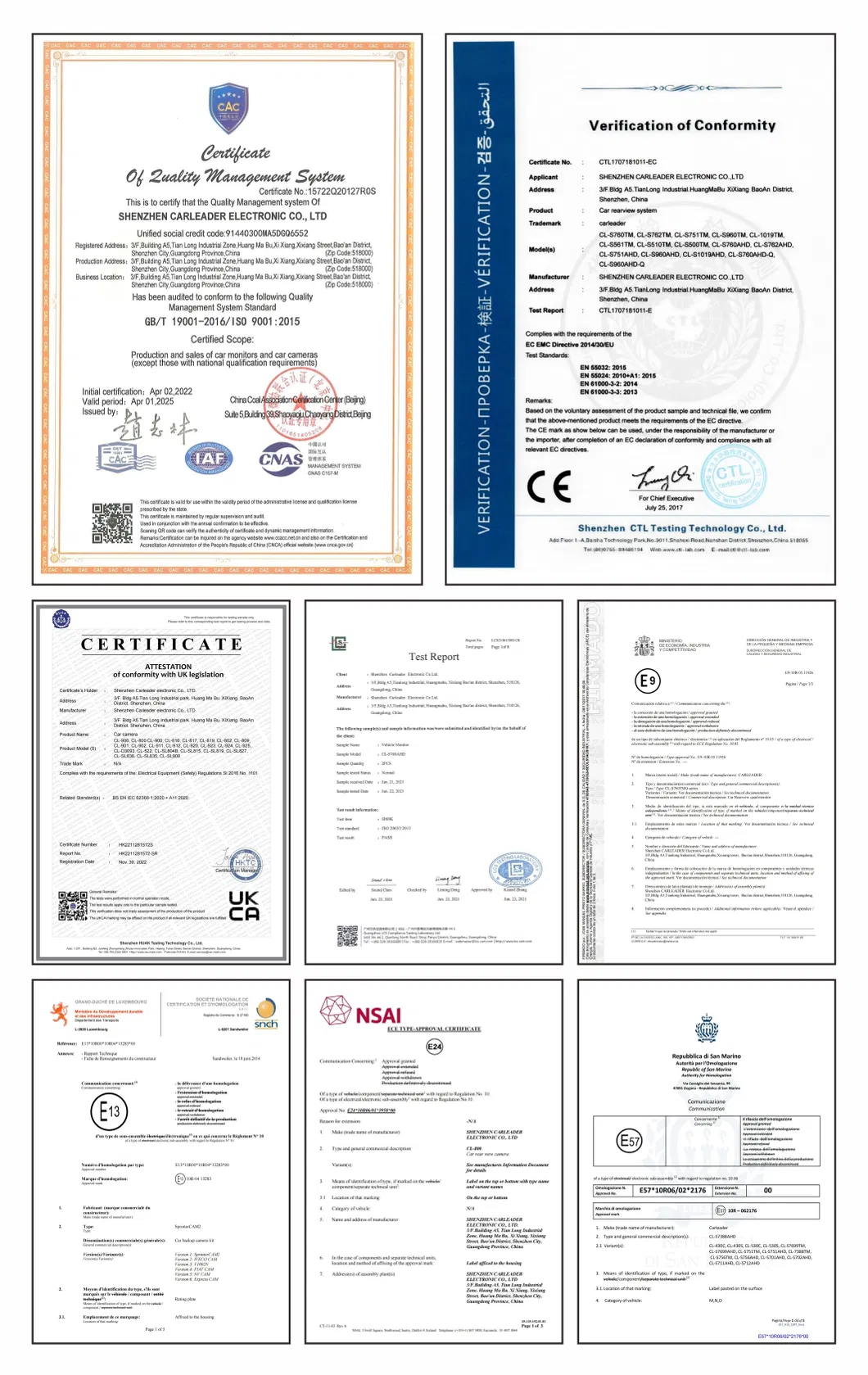

Product Certifications
Professional Security Solutions

With over 17 years of experience in automotive safety solutions, we serve global customers through innovation and unique technology. Our mission is to maintain high production management and product stability. We provide a complete set of security solutions including monitors, cameras, and video recorders. All products undergo rigorous testing: high/low temperature, waterproof, vibration, and aging tests to ensure premium quality.

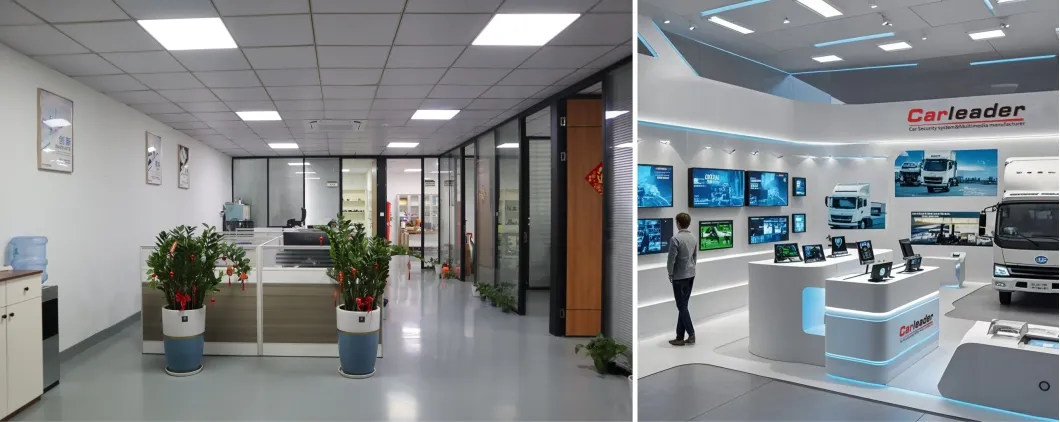

Factory Overview
Core Advantages
✔ 17 years of professional design and production experience.
✔ Advanced technical ability for complex refined requirements.
✔ Efficient production process and strict quality control system.
✔ Strong customization (OEM/ODM) capabilities for software and hardware.
✔ Stable supply chain and long-term partnerships with quality material providers.

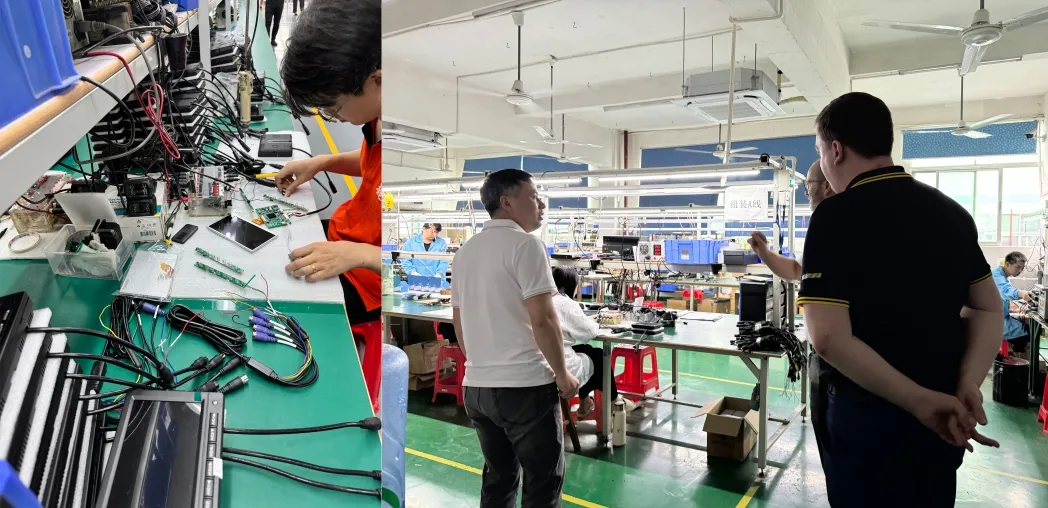

Advantages 1
Advantages 2
Packaging & Shipping

We cooperate with over 60 cross-border logistics companies to provide reliable solutions worldwide.

  • International Express: 3-7 working days, real-time tracking.
  • Sea Freight: Cost-effective for large volumes, 15-45 days.
  • Air Freight: Fast delivery for light-weight goods, 5-15 working days.
Logistics Information
Frequently Asked Questions
Q: What is the screen resolution of this monitor? A: The monitor features a 7-inch digital panel with a high-definition resolution of 1024 x RGB x 600.
Q: What is the operating voltage range? A: This system supports a wide voltage range of DC 9V to 32V, making it suitable for various types of vehicles.
Q: Does the system support automatic camera switching? A: Yes, it features an auto-switching function. For example, it automatically switches to the rear camera view when the reverse trigger cable is activated.
Q: What video formats are compatible with the AHD inputs? A: The system supports D1, 720P, and 1080P HD formats at 25/30fps in both PAL and NTSC standards.
Q: Is the sunshade removable? A: Yes, the monitor comes with a detachable sunshade for flexible use depending on the lighting conditions inside the vehicle.
