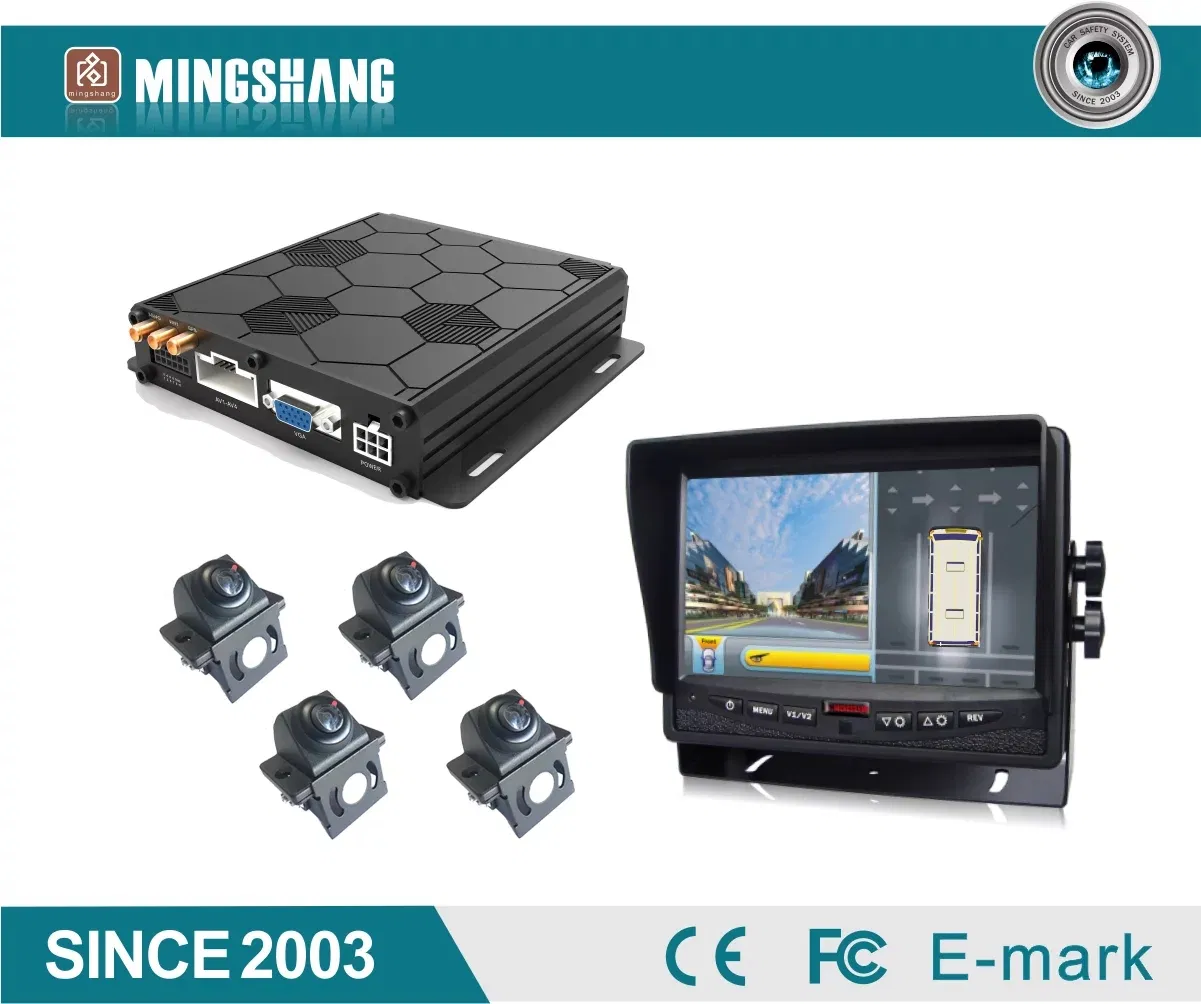

| No. | Part Name | Specifications | Qty | Remarks |
|---|---|---|---|---|
| 1 | Main box | HD 3D 360 Surround View | 1 | - |
| 2 | Camera | AHD starlight fisheye camera | 4 | - |

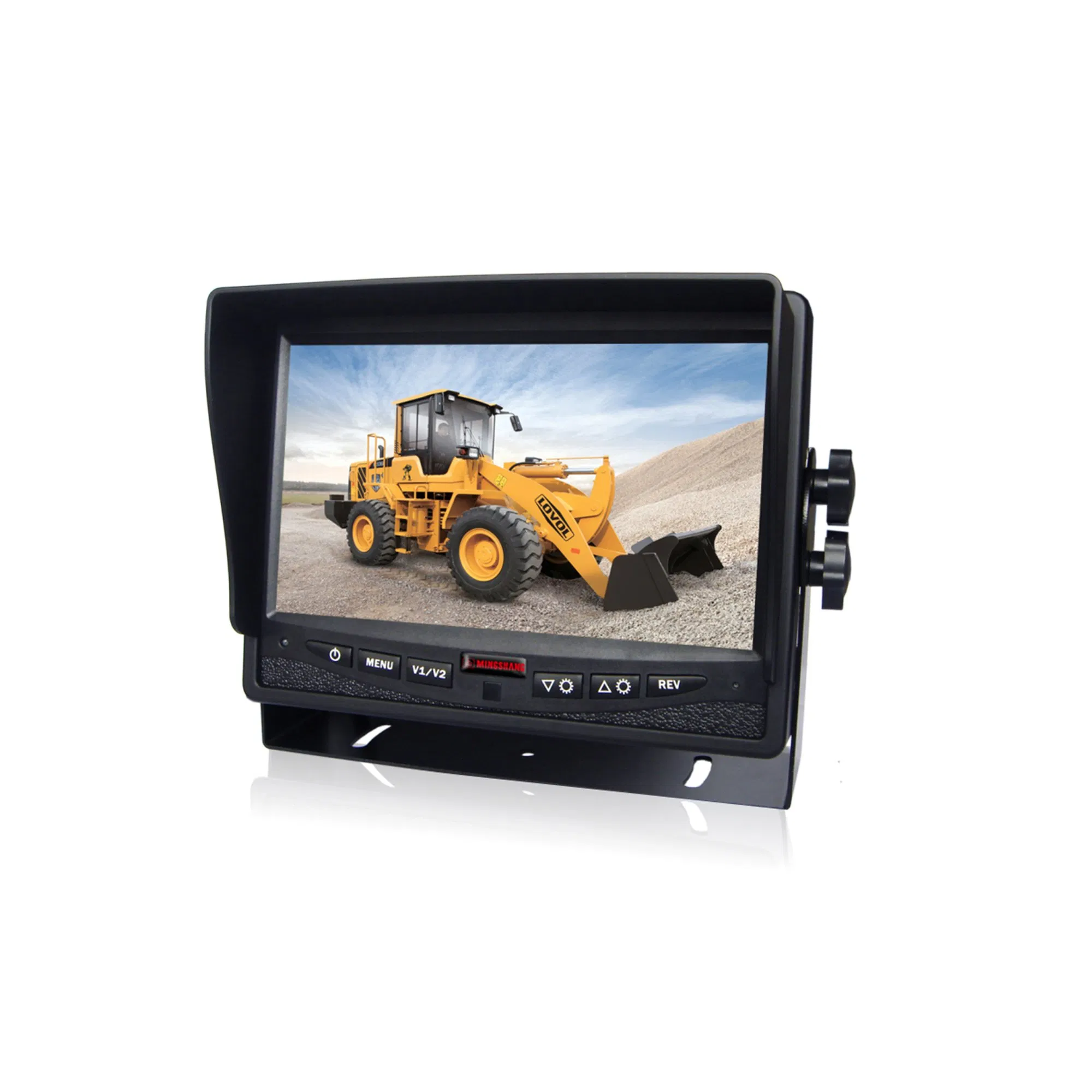

| 3 | Monitor | AHD HD Monitor | 1 | Optional |
| 4 | Remote control | Infrared remote control 21 keys | 1 | - |
| 5 | Adapter cable | Power supply, video input/output, etc. | 1 | - |
| 6 | Extension cable | Aircraft Connector extension cable | 5+2 | Optional |
| 7 | Mounting Accessories | Foot pads, screws, Velcro | 1 | - |
| 8 | Packaging material | Packaging box, pearl cotton | 1 | - |
| 9 | Calibration cloth | Small/Medium/Large based on size | 1 | Optional |
| Project Name | Description | Component | Project Name | Description |
|---|---|---|---|---|
| Operating system | Linux | Camera & System | Sensor type | Sensor IMX225 |
| CPU | AllwinnerT7 6 cores | Effective Pixels | 1280*977 (1.27MP) | |
| Video Input | AHD720P 25fps | Pixel size | 3.75um X 3.75um | |
| Video Output | AHD 720P / CVBS / VGA | Perspective | H210° * V130° | |
| Quiescent Current | <5MA | Focal length | f=2.1mm | |
| Start Time | Cold start <10S | Voltage | DC5v-12v | |
| Working Voltage | 9v-34v (Stable 12v/24v) | Operating Temp | -30ºC to +75ºC | |
| Power Consumption | <15w (6 cameras) | Store Temp | -40ºC to +85ºC | |
| Trigger Lines | 3-way (Reversing, L/R) | Resolution | 720 TV Lines | |
| Storage | USB/SD Card (Max 256GB) | Horizontal Res | 720P AHD 25fps |

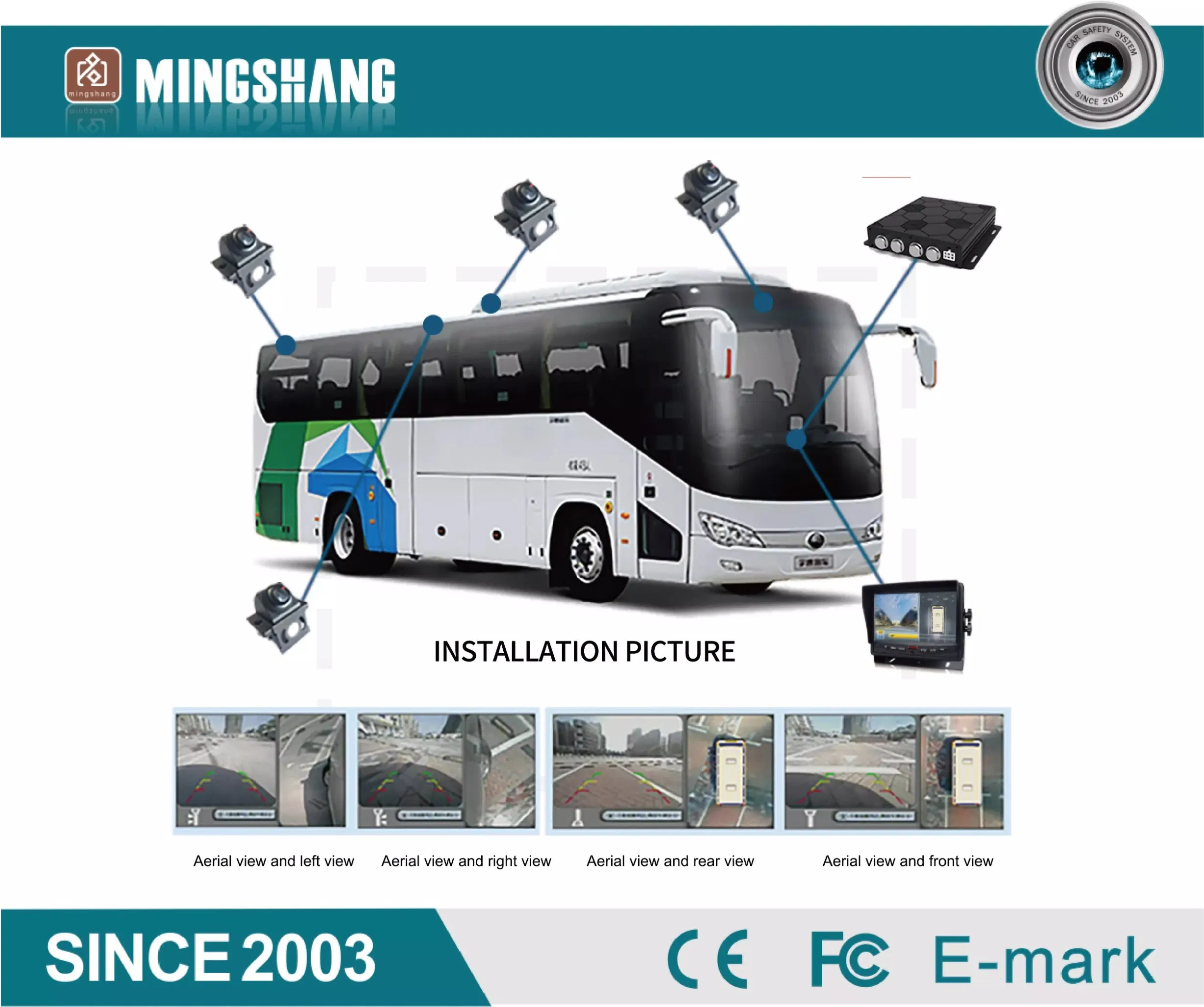

The system uses 4 ultra-wide-angle HD cameras to provide a seamless panoramic view of the vehicle's surroundings, eliminating all blind spots and significantly increasing safety for large commercial vehicles.
Each camera is equipped with a SONY IMX225 starlight-level sensor, which ensures clear, high-definition vision even in very low-light or nighttime environments.
Yes. The main control box features an aluminum alloy shell for superior heat dissipation, and the cameras are made of a strong zinc alloy that is anti-collision, corrosion-resistant, and IP68 waterproof.
Yes, the system supports high-definition video recording and can store data via USB or SD cards with a capacity of up to 256GB.
It is designed for a wide range of commercial vehicles, including buses, passenger cars, muck trucks, concrete mixers, and various types of construction machinery.
The system utilizes automotive-grade chips and meets international safety and quality standards including CCC, FCC, CE, and E-Mark.
